Home > Products > Eco solvent printer & Cutter Plotter > Plotter graphtec ce6000-120 vinyl cutter machine
Plotter graphtec ce6000-120 vinyl cutter machine
- guangzhou
- Credit Card
You May Like
Product Details
| Place of Origin | Japan | Brand Name | Graphtec | |
| Model Number | CE6000 | Voltage | 100 ~ 120 VAC,220 ~ 240 VAC,50/60 Hz | |
| Cache Capacity | 2MB | Paper Feed Width | 60cm,120cm | |
| Cutter Pressure | 20 gf to 450 gf)(38 levels) | Cutting Width | Minimum: 85mm Maximum: 1346mm | |
| Cutting Speed | 100 cm/s | Driver | digital servo | |
| Cutting Length | 5m | Repeat Cutting | cutting | |
| Size | 1487 *744 *1194 mm |
Product Description

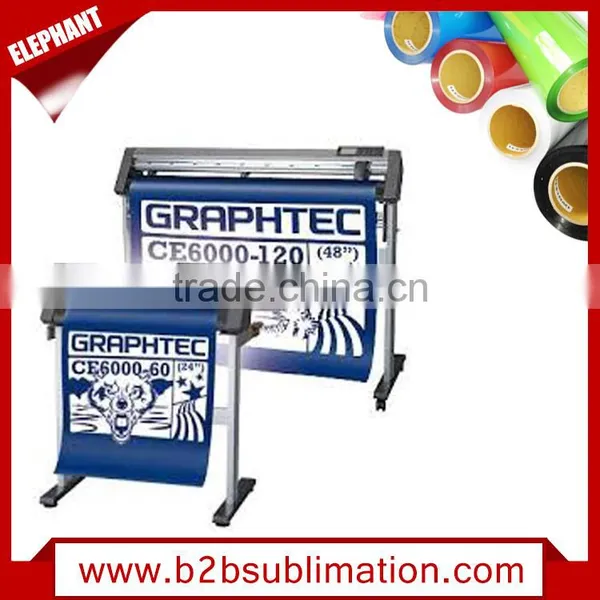

Plotter graphtec ce6000-120 vinyl cutter machine
brand: Graphtec
size: 40cm,60cm,120cm
cut thick: 0.25mm
function: vinyl cutting plotter
weight:40Kg for 120cm width
Compatible cutter type: Graphtec Supersteel blades, 0.9MM and 1.5mm diameter
Specifications:
| Item | CE6000-40 | CE6000-60 | CE6000-120 | CE6000-120-AMO |
| CPU | 32-bit CPU | |||
| Original Japan graphtec CE6000 cutting plotter | ||||
| Configuration | Grit rolling type, digital servo drive | |||
| Max. cutting area | 375 mm x 50 m *1 | 603 mm x 50 m *1 | 1213 mm x 50 m *1 | |
| (Guaranteed cutting area) | (356 mm x 2 m *1) | (584 mm x 5 m *1) | (1194 mm x 5 m *1) | |
| Mark scanning margin | Type 1 mark: Front 15 mm, Rear 35 mm, Left/Right 15 mm | |||
| Type 2 mark: Front 17 mm, Rear 37 mm, Left/Right 15 mm (Length of media up to 2 m) | ||||
| Number of push roller | 2 rollers | 2 rollers | 3 rollers | 4 rollers |
| Max. cutting speed | 600 mm/s (All directions) | 900 mm/s (at 45º direction) | 1000 mm/s (at 45º direction) | |
| Max. acceleration | 21.2 m/s2 (at 45º direction) | 13.9 m/s2 (at 45º direction) | ||
| Max. cutting force | 2.94 N (300 gf) in 31 steps | 4.41 N (450 gf) in 38 steps | 4.41 N (450 gf) in 38 steps | |
| (Instantaneous max. force) | (3.2 N (330 gf)) | (4.9 N (500 gf)) | (4.9 N (500 gf)) | |
| Minimum character size | Approx. 5 mm alphanumeric (varies depending on character font and type of media) | |||
| Repeatability | Max. 0.1 mm in plot up to 2 m *1 | |||
| Mountable number of tools | 1 tool | |||
| Blade type | Supersteel | |||
| Pen type | Oil-based ballpoint, Water-based fiber-tip pen | |||
| Media type | Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness | |||
| Polyester film, up to 0.25mm thickness (unguaranteed accuracy) | ||||
| Perforation cutting | Yes (performed by force control) | |||
| Interface | RS-232C / USB2.0 (Full Speed) | |||
| Buffer memory | 2 MB | |||
| Command sets | GP-GL / HP-GL™ emulation (Set by the menu or the command, and selects from GP-GL, HP-GL™, or Auto detect) | |||
| Display | Graphic type LCD with backlight (240dots x 128dots) | |||
| Registration mark sensing system | Scans the mark by optical sensor (ARMS5.0) | |||
| Power source | 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz | |||
| Power consumption | 120 VA | |||
| Operating environment | 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) | |||
| (Guaranteed accuracy) | (16 to 32 ºC, 35 to 70 % R.H. (non-condensing)) | |||
| External dimensions (W x D x H, Approx. [mm]) | 672 x 338 x 266 | 900 x 593 x 1046 | 1541 x 736 x 1250 | |
| Weight | 10.5 kg | 21 kg (including stand) | 40.5 kg (including stand) | |
| Included software *2 | Windows Driver, Graphtec Studio, Cutting Master 3, Plotter Controller | |||
| Compatible OS *2 | Windows 8 / 7 / Vista / XP, Mac OS 10.5.8 to 10.8 | |||
| Compatible Standards | Safety: cUL / CE mark, EMC: VCCI Class A / FCC Class A / EN55022 Class A | |||
Other details of graphtec cutting plotter:
Features:
1. Economical
2. user-friendly
3. Optimum
4. good cutting quality
5. Multi-usage: Advertising label. The control panel. Phone beauty. Mobile phone buttons. The serial number label. Clothing cutting such as thermal transfer; Heat transfer T-shirt. Souvenirs. Glass products, car stickers. Labeling. Any shape infra-red positioning, suitable for cutting
Application:
Billboard
Cutting film, Transparent or Semi-Transparent film, Reflective film, Fluorescent film etc.
Sticker & Label
Cutting Film, Making a sticker & Label, P.O.P etc.
Traffic Sign
High Intensity Reflective Sheet for making traffic sign etc
Making a Package
Card Board, E/F/G grade Corrugated board etc
High Functional Film
Flexible Print Circuits, Membrane switch sheet, PET Film, Polycarbonate etc
Company information:
Guangzhou Elephant Digital Technology Co., Ltd. is a manufacturer of sublimation printed sportswear for all kinds of sports, including ice hockey, cycling, motor-cycling, rugby, soccer, basketball, baseball, lacrosse, paintball, weight-lifting, wrestling with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in sportswear and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Our service:
1. Reply the inquiry in 24 working hours.
2.Experienced staffs answer all your questions.
3. Customized design is available.
4.Do the best quality anf cheap small wholesale heat transfer printing for fabric.
Payment terms:
T/T, Western Union, paypal
Shipping:
1.We have cooperated with Express Company, so our customers can get low freight cost.
2. If you have your own forwarder in China, we can offer Free Delivery for you in Guangzhou City!
3..There are no shipments on weekend and public holidays.
Package & delivery:
1. Neutral package or as customers' request.
2. we will arrange delivery 7-10workdays after we confirm the payment.
Contact:
Company Name: 5th Floor, 15th Yongning North Street, Dashi river village, Panyu District, Guangzhou City, Guangzhou,China (Line 3, Dashi MTR Station Exit D)
TEL:86-20-89015371
FAX:86-20-85542001
Mobile:86-13711385723
E-Mail:kiki at
Skype: elephant_kiki
Wechat/whatsapp: +8613711385723
