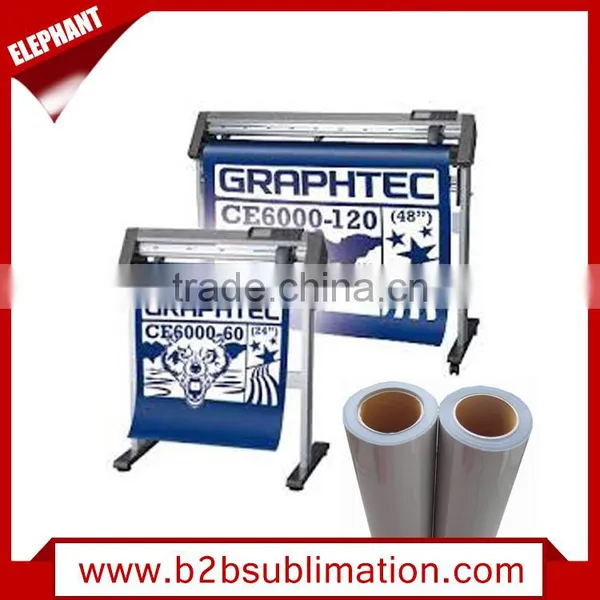

Graphtec Desktop Vinyl Cutting Plotter

Graphtec Desktop Vinyl Cutting Plotter photo-1
Graphtec Desktop Vinyl Cutting Plotter photo-2

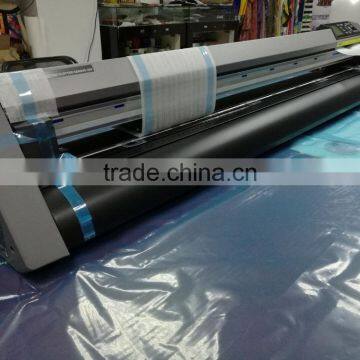

Graphtec Desktop Vinyl Cutting Plotter photo-3
Graphtec Desktop Vinyl Cutting Plotter photo-4
Graphtec Desktop Vinyl Cutting Plotter photo-5
US$ 1,500 - 3,900 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
Graphtec
Model Number:
CE6000
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Japan
Brand Name Graphtec
Model Number CE6000
Voltage 100 ~ 120 VAC,220 ~ 240 VAC,50/60 Hz
Cache Capacity 2MB
Paper Feed Width 60cm,120cm
Cutter Pressure 20 gf to 450 gf)(38 levels)
Cutting Width Minimum: 85mm Maximum: 1346mm
Cutting Speed 100 cm/s
Driver digital servo
Cutting Length 5m
Repeat Cutting cutting
Size 1487 *744 *1194 mm

Graphtec Desktop vinyl cutting plotter

brand: Graphtec
size: 40cm,60cm,120cm
cut thick: 0.25mm

function: vinyl cutting plotter

weight:40Kg for 120cm width

Compatible cutter type: Graphtec Supersteel blades, 0.9MM and 1.5mm diameter






Product Description



Specifications:



ItemCE6000-40CE6000-60CE6000-120CE6000-120-AMO
CPU32-bit CPU
Original Japan graphtec CE6000 cutting plotter
ConfigurationGrit rolling type, digital servo drive
Max. cutting area375 mm x 50 m *1603 mm x 50 m *11213 mm x 50 m *1
(Guaranteed cutting area)(356 mm x 2 m *1)(584 mm x 5 m *1)(1194 mm x 5 m *1)
Mark scanning marginType 1 mark: Front 15 mm, Rear 35 mm, Left/Right 15 mm
Type 2 mark: Front 17 mm, Rear 37 mm, Left/Right 15 mm (Length of media up to 2 m)
Number of push roller2 rollers2 rollers3 rollers4 rollers
Max. cutting speed600 mm/s (All directions)900 mm/s (at 45º direction)1000 mm/s (at 45º direction)
Max. acceleration21.2 m/s2 (at 45º direction)13.9 m/s2 (at 45º direction)
Max. cutting force2.94 N (300 gf) in 31 steps4.41 N (450 gf) in 38 steps4.41 N (450 gf) in 38 steps
(Instantaneous max. force)(3.2 N (330 gf))(4.9 N (500 gf))(4.9 N (500 gf))
Minimum character sizeApprox. 5 mm alphanumeric (varies depending on character font and type of media)
RepeatabilityMax. 0.1 mm in plot up to 2 m *1
Mountable number of tools1 tool
Blade typeSupersteel
Pen typeOil-based ballpoint, Water-based fiber-tip pen
Media typeSelf-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness
Polyester film, up to 0.25mm thickness (unguaranteed accuracy)
Perforation cuttingYes (performed by force control)
InterfaceRS-232C / USB2.0 (Full Speed)
Buffer memory2 MB
Command setsGP-GL / HP-GL™ emulation (Set by the menu or the command, and selects from GP-GL, HP-GL™, or Auto detect)

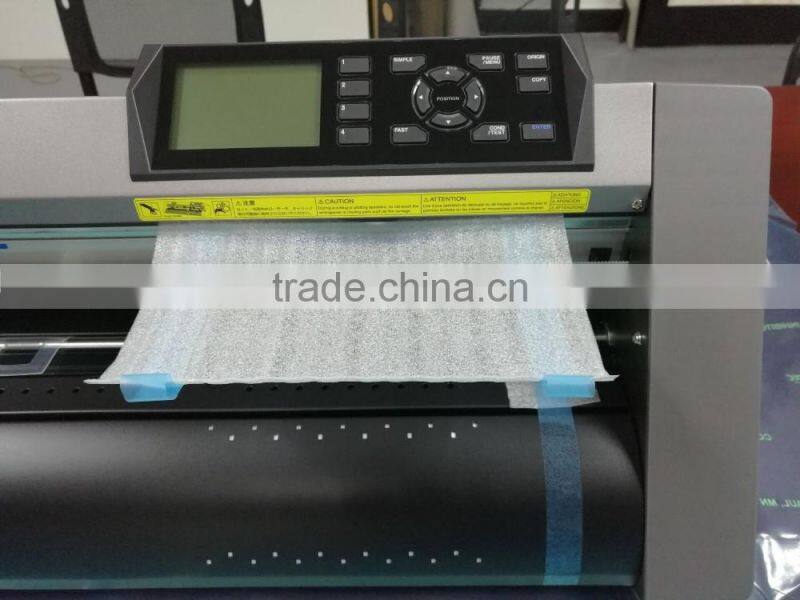

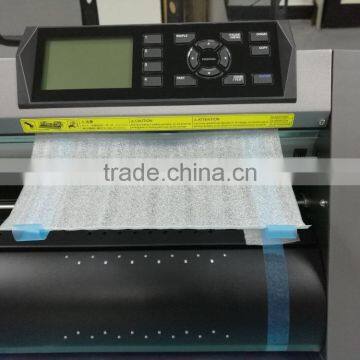

DisplayGraphic type LCD with backlight (240dots x 128dots)
Registration mark sensing systemScans the mark by optical sensor (ARMS5.0)
Power source100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
Power consumption120 VA
Operating environment10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
(Guaranteed accuracy)(16 to 32 ºC, 35 to 70 % R.H. (non-condensing))
External dimensions (W x D x H, Approx. [mm])672 x 338 x 266900 x 593 x 10461541 x 736 x 1250
Weight10.5 kg21 kg (including stand)40.5 kg (including stand)
Included software *2Windows Driver, Graphtec Studio, Cutting Master 3, Plotter Controller
Compatible OS *2Windows 8 / 7 / Vista / XP, Mac OS 10.5.8 to 10.8
Compatible StandardsSafety: cUL / CE mark, EMC: VCCI Class A / FCC Class A / EN55022 Class A










Graphtec Desktop vinyl cutting plotterGraphtec Desktop vinyl cutting plotter



Other details of graphtec cutting plotter:





Graphtec Desktop vinyl cutting plotter









Graphtec Desktop vinyl cutting plotter



Graphtec Desktop vinyl cutting plotter



Graphtec Desktop vinyl cutting plotter



Graphtec Desktop vinyl cutting plotter



Graphtec Desktop vinyl cutting plotter





Features:

1. Economical

2. user-friendly

3. Optimum

4. good cutting quality

5. Multi-usage: Advertising label. The control panel. Phone beauty. Mobile phone buttons. The serial number label. Clothing cutting such as thermal transfer; Heat transfer T-shirt. Souvenirs. Glass products, car stickers. Labeling. Any shape infra-red positioning, suitable for cutting







Application:



Billboard

Cutting film, Transparent or Semi-Transparent film,  Reflective film, Fluorescent film etc.

Graphtec Desktop vinyl cutting plotter

Sticker & Label


Cutting Film, Making a sticker & Label, P.O.P etc.

Graphtec Desktop vinyl cutting plotter

Traffic Sign

High Intensity Reflective Sheet for making traffic sign etc

Graphtec Desktop vinyl cutting plotter

Making a Package


Card Board, E/F/G grade Corrugated board etc

Graphtec Desktop vinyl cutting plotter

High Functional Film



Flexible Print Circuits, Membrane switch sheet, PET Film, Polycarbonate etc

Graphtec Desktop vinyl cutting plotter
