high efficiency 4-heads wood&acrylic&die board laser engraving machine JQ2210

standard wooden case

Specifications

high enffeciency aser engraving machine 2210
1.imported Guiding rail
2.4 laser head can can engrave together,more efficient

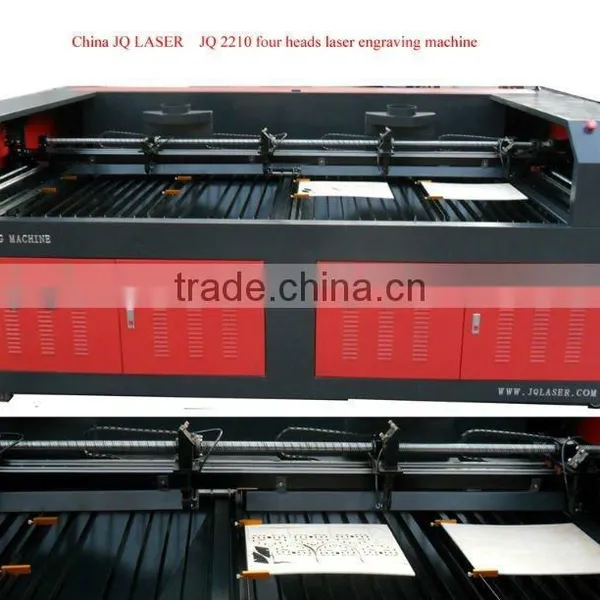

JQ2210 highly efficiency 4 laser head wood&acrylic&plywood&die board laser engraving machine



Features of JQ2210 laser engraving machine



1). The up to date software provides the output of original pictures, compatible with the graph formats such as CAD, CorelDraw, Photoshop, Tajima software, meet the practical design requirements of the end users. The advanced colour control supports various colours and sequence of the cutting, it can realize complete or partially output of the files.

 2). This series of laser engraving machine can work with 4 laser head together.perfect engraving on wood/acrylic/die board/plywood,improved the efficiency in large degree

 3). Open style, the front and back of the machine is open which is possible for longer material, break through the limit of the workpiece length.

 4). Customers could choose equipment and solutions such as flat worktable, honeycomb worktable.



Machine parameter

Model NO.	high efficiency 4-heads wood&acrylic&die board laser engraving machine JQ2210
Laser power	60W /80W /100W perfect for engraving
Cooling system	Water cooling
Working Area	2200mm(L)*1000mm(W)
Machine Dimension	2500mm*1500mm*1300mm
Net Weight	1000kg
Driving System	stepper motor
Engraving speed	0-6000cm/min
Cutting speed	0-3600cm/min
Power Supply	220V/50Hz, 110V/60Hz
Graphic Format Supported	PLT, DXF, BMP, JPG ,AI, CDR and so on
Software Supported	Coreldraw, Photoshop, AutoCAD, Tajima
Operating Temperature	0 - 45°C
Operating Humidity	5-95%
Recommend Spare Parts	Laser tube and focus lense
Machine main parts	Water pump, air pump, exhaust fan and wind pipe, red light pointer, Knife worktable and so on.



3.Applicable materials:

 synthetic material, acrylic, wood, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials, etc.

4.Guarantee and after-sale service

Two year guarantee for whole machine except of laser tube and lens
24 hours technical support by e-mail, calling or door-to-door service
English software, user manual and detailed Videos CD

5.samples
