Specifications
18mm MDF laser cutting machine1.Imported Mirrors and Lens
2.Taiwan guide rail and model
3.USA advanced DSP control system

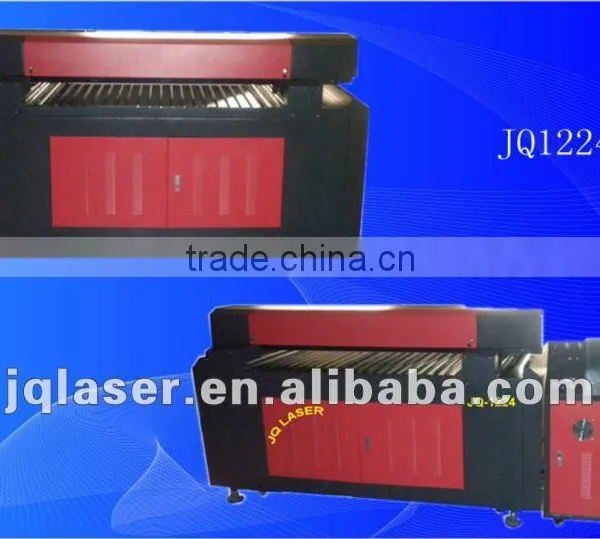

JQ1224 18mm MDF laser cutting machine
Performance Features:
1). The up to date software provides the output of original pictures, compatible with the graph formats such as CAD, CorelDraw, Photoshop, Tajima software, meet the practical design requirements of the end users. The advanced colour control supports various colours and sequence of the cutting, it can realize complete or partially output of the files.
2). This series of laser engraving and laser cutting machine is suitable for professional user for cutting performance in garment, leather, cloth, toy, computerized embroidery and clipping, cutting of template, art gift, advertisement decoration, building upholster, package, printing, paper product and other industries.
3). Open style, the front and back of the machine is open which is possible for longer material, break through the limit of the workpiece length.
4). Customers could choose equipment and solutions such as flat worktable, honeycomb worktable.
5).Adopt advaced DSP 4.0 control system, the control card is Leetro MPC 6535 outline system
Parameters
Model | JQ1224 |
Laser Power | 80W |
Laser Type | CO2 sealed, glass laser tube, water cooling |
Work Area | 1200 X 2400 mm |
Cooling Type | Water-cooled and Protection System |
Engraving Scanning Speed | 0-60000 mm/min |
Cutting Speed | 0-1000mm/min |
Laser Output Control | 1-100% Software Setting |
Smallest Character Engraving | English: 1.0X1.0 mm |
Highest Scanning Precision | 2500DPI |
Power Supply | AC 110-220V±10%, 50-60Hz |
Operating Temperature | 0°-45°C |
Operating Humidity | 5%-95% |
Locating Precision | ≤±0.01mm |
Supported File Format | DSTPLTBMPDXFAI |
Compatible Software | TAJIMACORELDRAWPHOTOSHOPAUTOCADAll Type of AUTOCAD Software in cloth |
Slope Engraving | 360°Slope Can Be Designed Easily |
Driving System | Stepper Electrical Motor |
Package Dimension | 1750X2930X1120mm |
Net Weight | 1100KGS |
Gross Weight | 1150KGS |
Optional Spare Parts | Up-down Worktable, Rotary System, Honeycomb Worktable |
Removable Spare Parts | Laser Tube and Lens |
Applicable Materials

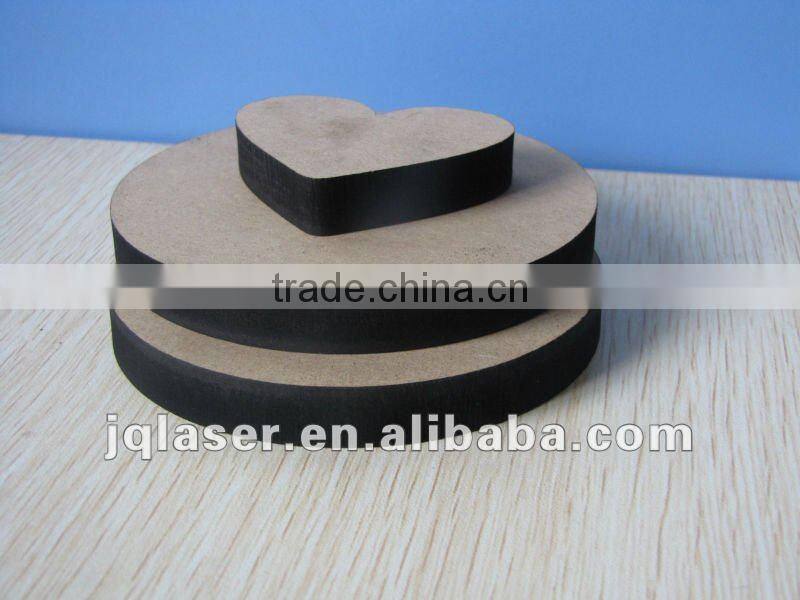

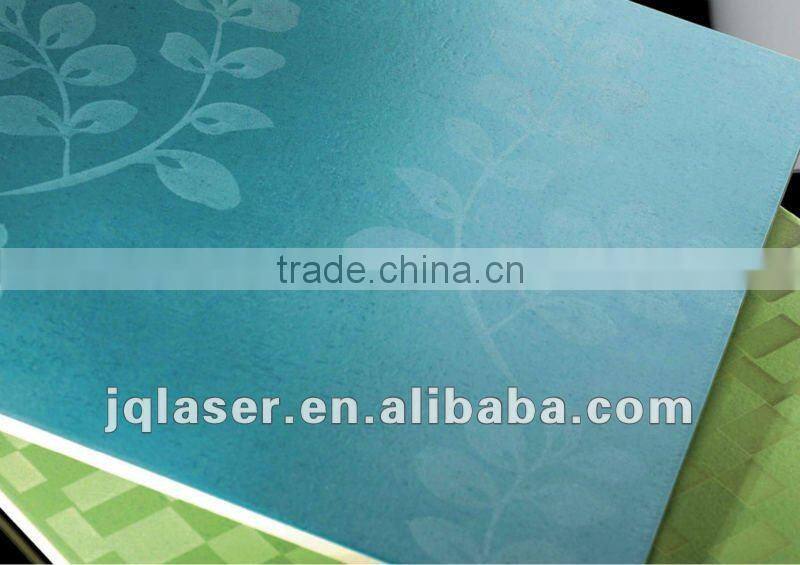

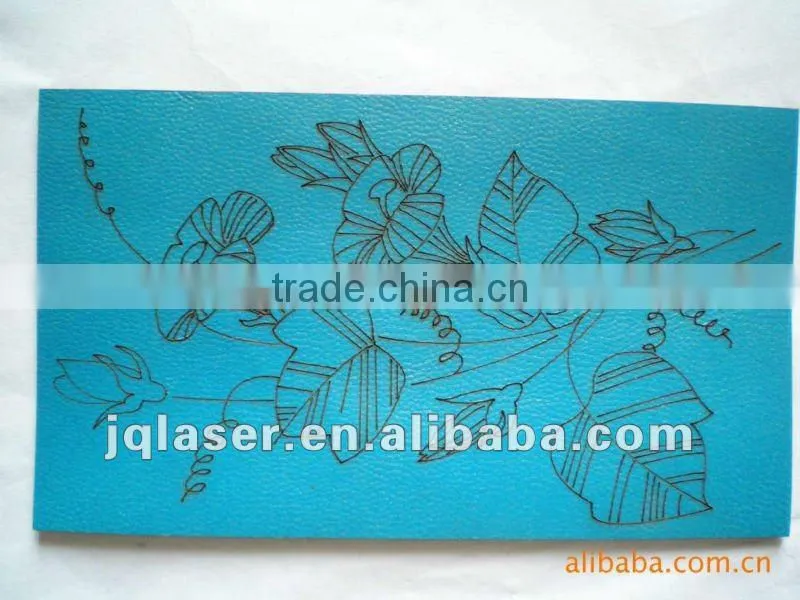

Fabrics, leather, paper. bamboo ware, acrylic, glass, films and canvas, wood, porcelain, acryl, cloth, etc.
5.The warranty after-sale service
1).CE and FDA certificate,the machines are produced according to standard.
2).Two years quality guarantee for whole machineexcept of laser tube and lens ;
3).We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve;
4).The machines delivery is quickly,delivery time is short.
5).24 hours technical support by e-mail, calling or door-to-door service
6).English software, user manual and detailed Videos CD
