Wire Laser Cutting Machine (Cheap)

Name: Wire Laser Cutting Machine (Cheap)
Brand: JQ-LASER
Availability: InStock

FOB Price

USD $5,000 - $7,000 / Set

1 Set(Min.Order)

Supply Ability 350 Set / Sets per Month
Port Qingdao China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	JQ-LASER
Model Number	JQ-1224

Packaging Details

Packed with CE standard plywood case with steel pipe pallet. The five pieces of package is from inside to outside. Preservative film---Foam---Preservative film --- Plywood case ---Enlace steel belt---Paint the mark---Foam(avoid damp)---Over preservative film (avoid damp)

Product Description

Specifications

Wire Laser Cutting Machine
1.epilog laser machine
2.2 D laser cutting and engraving
3.Special to cut sheet materials

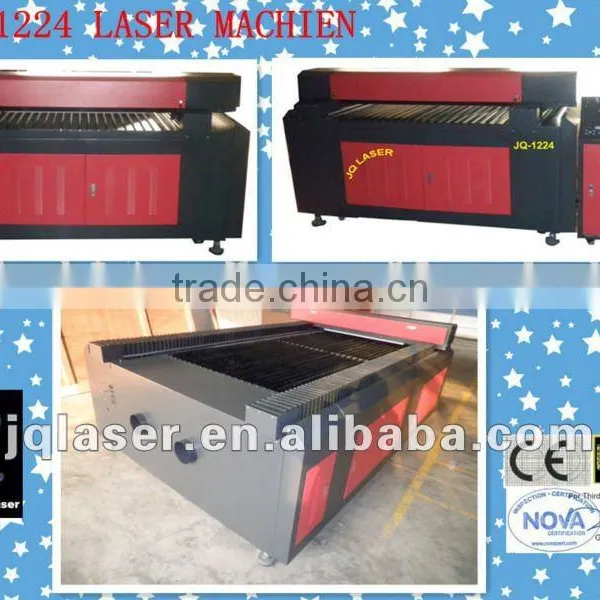

Wire Laser Cutting Machine (Cheap)

A.Performance Features:

1. Configure high power laser tube.

2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.

3. Owns functions of restoring from power off, continuation on break point.

4. Transmit files directly in Coreldraw, AutoCAD,etc.

5. Adopt international linear rail, more precision.

B.Parameters

Model	JQ-1224
Laser Power	80W/100W/150W/180W
Laser Type	sealed CO2laser tube,water-cooled,10.6um
Work Area	1200X2400 mm
Cooling Type	Water-cooled and Protection System
Engraving Scanning Speed	0-60000 mm/min
Cutting Speed	0-1000mm/min
Laser Output Control	1-100% Software Setting
Smallest Character Engraving	English: 1.0X1.0 mm
Highest Scanning Precision	2500DPI
Power Supply	AC 110-220V±10%, 50-60Hz
Operating Temperature	0°-45°C
Operating Humidity	5%-95%
Locating Precision	≤±0.01mm
Supported File Format	DSTPLTBMPDXFAI
Compatible Software	TAJIMACORELDRAWPHOTOSHOPAUTOCADAll Type of AUTOCAD Software in cloth
Slope Engraving	360°Slope Can Be Designed Easily
Driving System	Stepper Electrical Motor
Package Dimension	336021201320mm
Net Weight	1100KGS
Gross Weight	1150KGS
Optional Spare Parts	Up-down Worktable, Rotary System, Honeycomb Worktable
Removable Spare Parts	Laser Tube and Lens

C.Applicable Industries

Garments sampling, large width tailoring, leather industry, shoemaking decoration, furnture, advertisement, packing and printing, molding and art craft industries, etc.

D.Applicable Materials

Fabrics, ather, paper. bamboo ware, acrylic, glass, films and canvas, etc.

F.The warranty after-sale service

1).CE and FDA certificate,the machines are produced according to standard.

2).Two years quality guarantee for whole machineexcept of laser tube and lens ;

3).We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve;

4).The machines delivery is quickly,delivery time is short.

5).24 hours technical support by e-mail, calling or door-to-door service
6).English software, user manual and detailed Videos CD

JQ-LASER IS A PROFESSIONAL MANUFACTURER SPECIAL IN LASER MACHINE .

Company Profile

Jinan JinQiang Laser CNC Equipment Co., Ltd.

Jinan JinQiang Laser CNC Equipment Co.,Ltd is located in Jinan High & New Technology Industrial Development Zone. We are committed ourselves to developing, producing and selling laser equipment. Our company supplies JQ series of laser engraving and laser cutting equipment, laser engravers and laser cutters. They are used in many fields. With high quality products and top after-sales service, we have won trust and support of customers from all over the world. Our company is guided by the market-oriented concept as well as masterful technique, and regards "good service and customers' benefits" our rules. With technical development, and many years of research, our products are improved day by day. Our philosophy is "Golden Quality, The Best Technique and Good Faith". We are trying to be a well-known company at home and abroad with the perfect and considerate after-sales service system. We welcome customers from all over the world to cooperate with us. Please feel free to contact us for further information. Selecting JQ laser the world will become yours !
