metal laser cutting machine:1Popular in Metal cutting line
2Auto-focus,High Efficiency & precision,long life
3Beautiful work

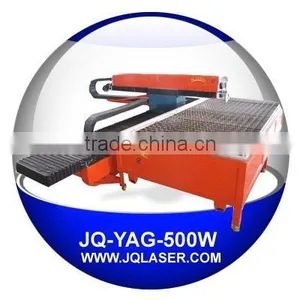

Metal Laser Cutting machine
- The product adopts YAG solid-state laser optical system. The optical mode is scientific and stable. Anyway, the cut kerfs are very small and precision.
- It adopts dual rails positioning system and ball screw driven system. The machine has the advantages of fast speed, high precision, moving smoothly, dynamic performance and long life.
- X-axis and Y-axis are both equipped with limited switches that used to prevent the crash caused by the over travel. Anyway, there are polyurethane anti-collision blocks on the machine in case of the failure of the limited switches. The limited switches and the blocks guaranteed the operating security.
- With the automatic programming system, the graphic files can be changed into job program directly.

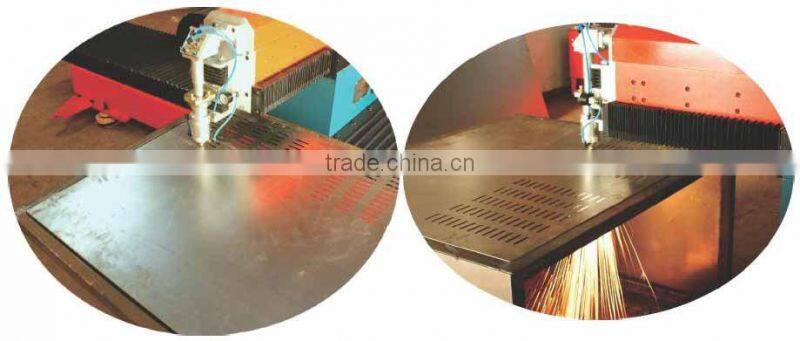

- This equipment adopts mechanical following cutting head. Make use of the photoelectric autofcous, adjusting the focus distance, raising to process the precise degree, keeping the material surface from row wound/ damage,
No | Items | Parameters | Unit |
1 | Machine Name | Metal laser cutting machine | |
2 | Machine Model | JQ－YAG－500 | |
3 | Laser wavelength | 1064 | nm |
4 | Laser pulse frequency | 0.1－500 | Hz |
5 | Width of pulse | 0.2- 20 | ms |
6 | Working current | 100-400 | A |
7 | Laser rated power | 200－500 | W |
8 | Laser power source | 18 | kw |
9 | Chiller | 5 | kw |
10 | X axis,Y axis route | 1300×2500 | mm |
11 | Z axis route | 50 | mm |
12 | X、Y located precision | +/-0.05 | mm/m |
13 | X、Y repeated located precision | +/-0.05 | mm/m |
14 | X、Y max moving speed | 16 | m/min |
15 | X、Y max cutting speed | 4 | m/min |
16 | Min line width | 0.2 | mm |
17 | Located apparatus | Red light direction | |
18 | Way of air protection | Coaxial | |
19 | Control system | Software of JQ Laser | |
20 | Suitable file format | dxf,ai,plt | |
21 | Driving way | Servo motor | |
22 | Continuous working time | 24 | H |
23 | Max cutting thickness (Carbon steel) | 10 | mm |
24 | Applied material | Stainless steel, carbon steel, copper, aluminum sheet and so on | |
25 | Machine size | 5.0×5.0×1.2 | m |
26 | General power | 12－20 | KW |
27 | Electrical source voltage | 380V±10%/50Hz/100A | |
28 | Spare parts | Xe lamp, water, auxiliary gas(N2, O2) | |
29 | Grade of laser | Class IV | |
Our laser machines could be customized according to your special requirements such as the dimension of the cutting area,the laser power, the color of the machine and so on.
