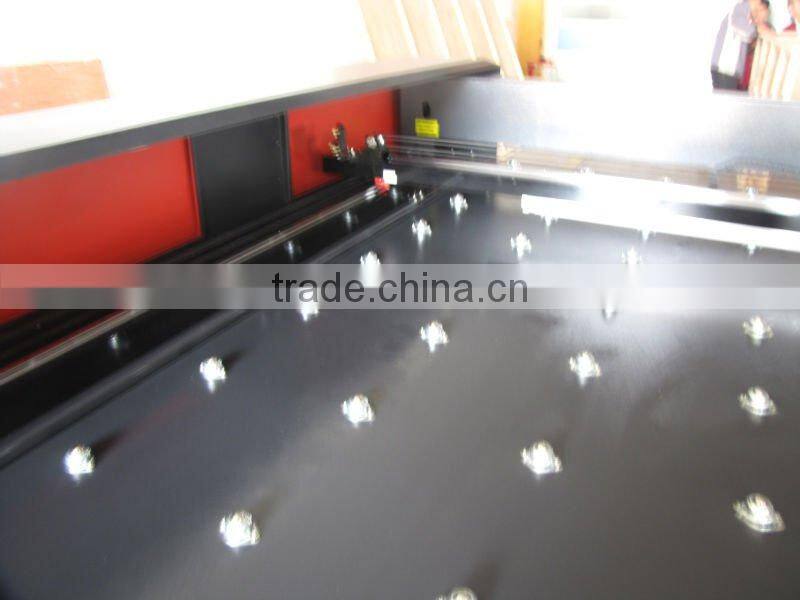

laser cutting bed with 4 heads1.Good in thick material engrave/cut
2.2times Higher Efficiency,stable work
3.Multifunction

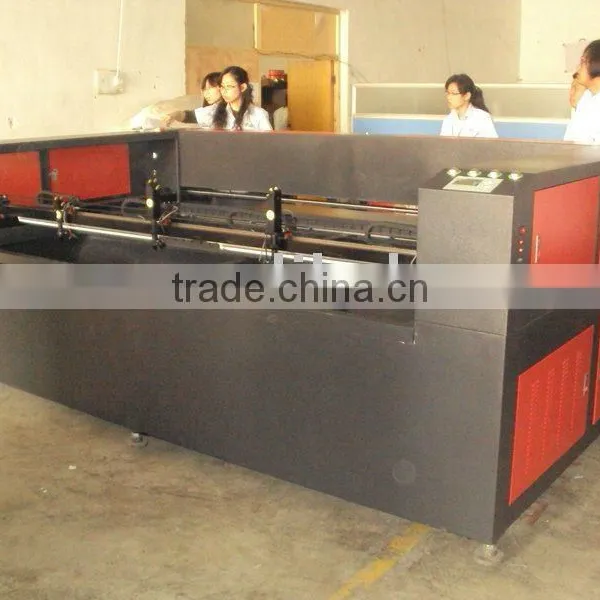

JQ-1621-4 Large Table Laser Cutter
Performance Features
- Configure higher power laser tube;
- DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc;
- Owns functions of restoring from power off, continuation on break point;
- Transmit files directly in CorelDraw, AutoCAD etc;
- Adopt international linear rail, more precision.
Model | JQ-1621-4 Laser Cutting Machine |
Working area | 210cm*160cm / 93in*63in (L*W) |
Equipment Dimension | 268cm*300cm*112cm /106in*91in*44in (L*W*H) |
Laser tube | 60W/80W/100W/130W/150W |
Laser type | CO2 sealed laser tube,water-cooled |
Engraving speed | 0-6000mm/min |
Cutting speed | 0-5000mm/min |
Laser Output | 1-100%software setting |
Resetting positioning accuracy | ≤±0.01mm |
Operating temperature | 0 - 45°C |
Operating humidity | 5 - 95% |
Min. shaping character | English 1.0 x 1.0mm |
Power supply | 220V/50HZ , 110V/60HZ |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system | 3 phases stepper motor |
Equipment Dimension | 268cm*230cm*112cm/106in*91in*44in |
Packing Dimension | 278cm*240cm*130cm/109in*94in*51in |
Net Weight | 1200kg |
Optional part | Partial up-down work table, USB Port, Autofocus |
Recommended Spare Parts | Laser Tube and Lens |
Application Field
Applicable Industries
Garment sampling, large width tailoring, leather industry, shoemaking decoration, furniture, advertisement, packing and printing, molding and art carft industries, etc.
Applicable Materials
Non-metal materials, such as fabrics, leather, paper, bamboo, ware, acrylic, glass, films and canvas, etc
