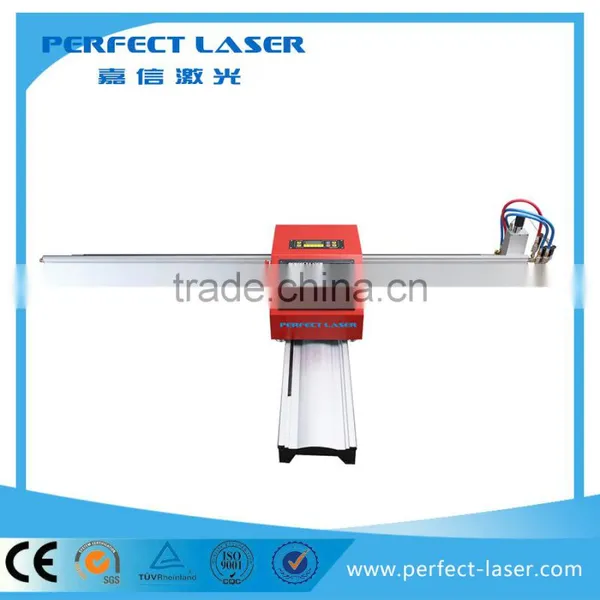

plasma cutter /cnc metal plasma cutting machine PE-CUT-C1

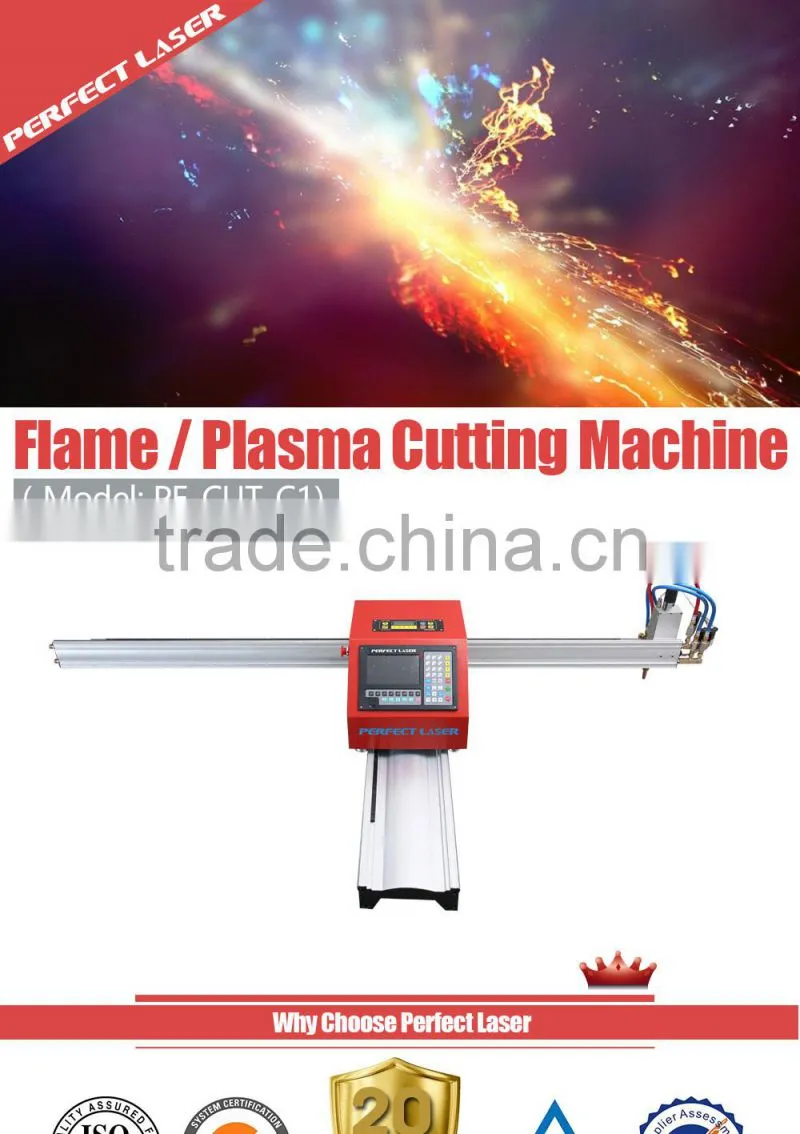

( plasma cutter , model :PE-CUT-C1)
Contact name : Cindy Skype: perfectlaser010 Whatsapp:008613659897768
1. Features:
1) Running parts are all adopted the seamless gear, rack drive and stepper motor.

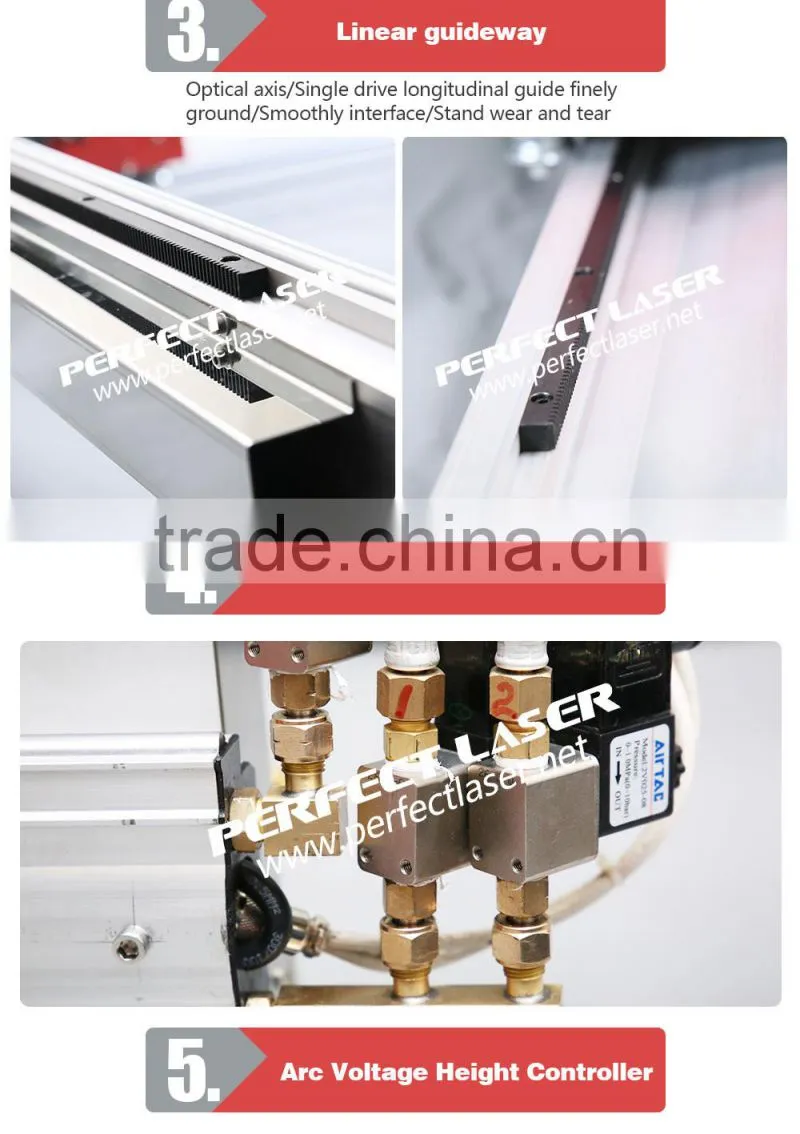

2) Vertical linear guide rails imported from Taiwan, high precision, stable.
3) Bottom floor adopts high-quality flat steel square tube, and after processing, it has the characters of high-precision, rust resistant, beautiful and clean.
4) Beams using special aluminum industrial profile, light weight, no deformation;

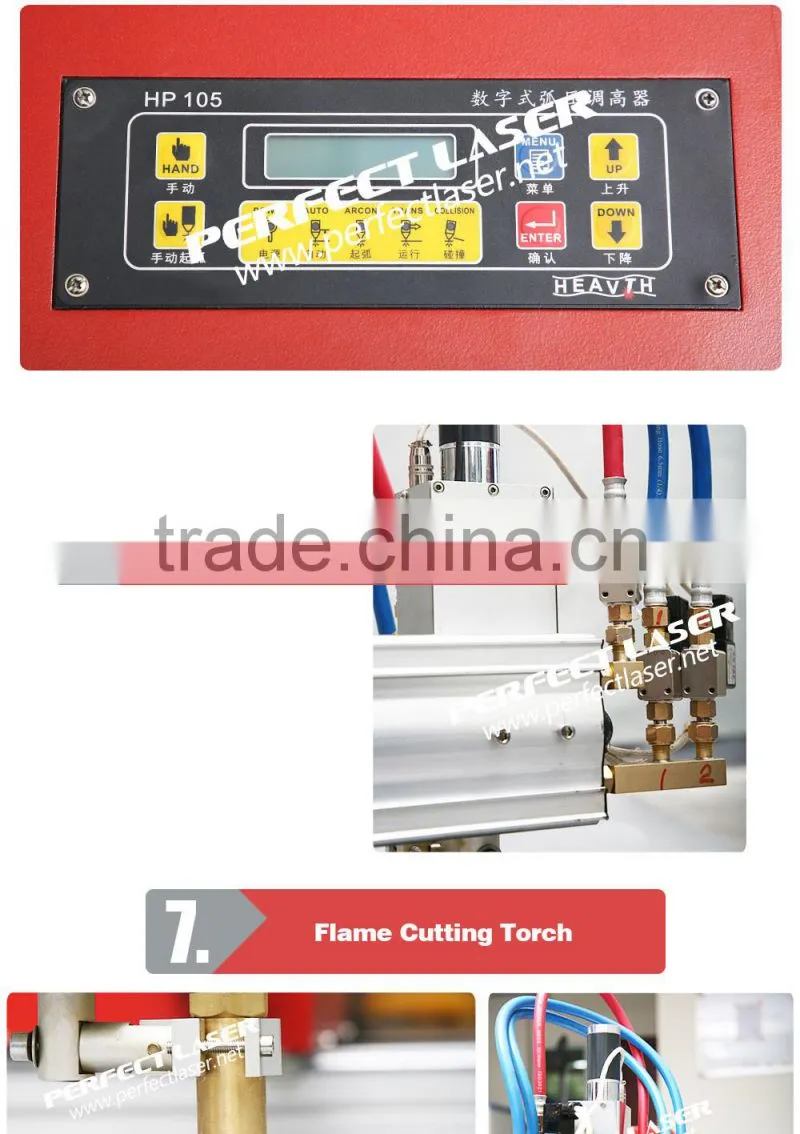

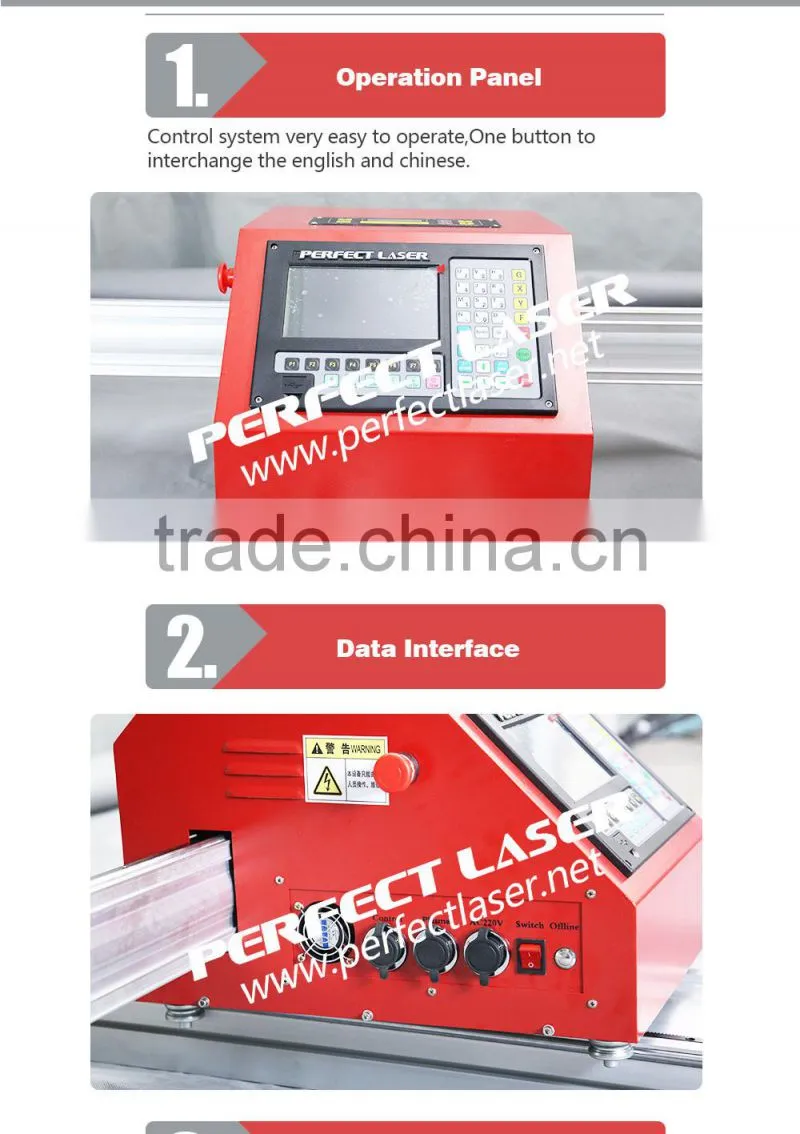

5) Control system using self-developed control system, with currently the most excellent stability and superior noise immunity. English interface, simple operation, finished with dedicated graphics conversion software, CAD drawings can be directly converted into cutting code. With U-disk interface, graphic design by the Office of the U disk into the cutting machine. Simple graphics can be entered directly in the field cutting machine.
6) Linear guide rail beams to the optical axis, reducing wear and tear on the beam, to better ensure the cutting precision
2. Application:

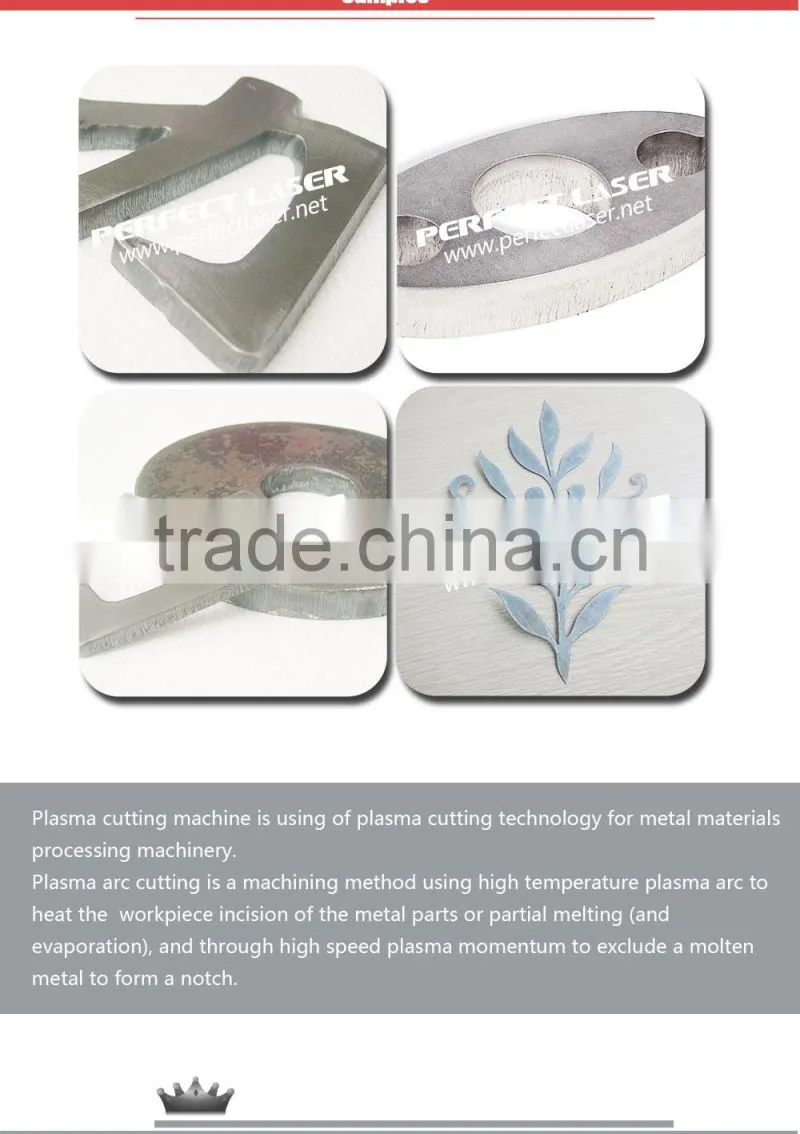

CNC plasma cutting machine is automatic and high efficiency cutting equipment. It is widely used in all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting etc.
PE-CUT-B1 & PE-CUT-B2 are cantilever structure. The lateral cutting width is 2000-2800 mm, the longitudinal length is 3000 mm. Longitudinal tracks can be configured. It can set up several cutting torch; it can choose auto-adjusting height system. It is small and easy to move and flexible. So it is convenient.

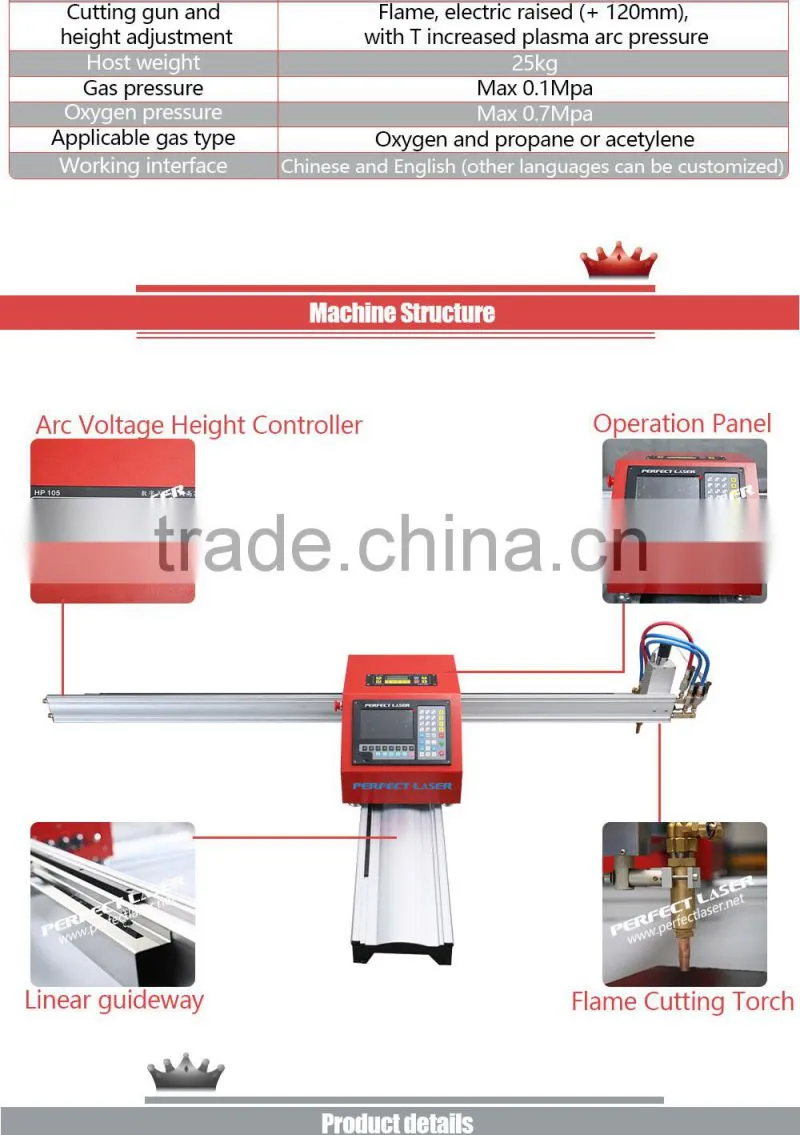

PE-CUT-C1 & PE-CUT-C2 are also cantilever structure. The lateral cutting width is 1200-1400 mm, the longitudinal cutting length is 1500-2000 mm, this model is the most economic and lightest in weight in all of CNC cutting or plasma cutting machine, it has auto-fire and auto-adjusting height switch. It can move entirely, and the usage way is “sports car”, it can be placed on armor plate that is to be give stuff, and it is also very convenient.
4. Technical Date
Model |
PE-CUT-B1 |
PE-CUT-B2 |
PE-CUT-C1 |
PE-CUT-C2 |
Working Area (mm) |
2800 x 3000 |
2000 x 3000 |
1200 x2000 |
1400x1500 |
Effective Working Area (mm) |
2800x2000 |
2000x2000 |
1200x2000 |
1400x1500 |
Auto-Inflame |
1 set |
|||
NC Cutting |
1 set |
|||
Controlled Switch |
some |
|||
Lifting Height of Cutting |
≤200mm |
|||
Cutting Speed |
0-3500mm/min |
|||
Roughness of Cutting Surface |
Ra≤12.5μm |
|||
Driving System |
three-phase AC motor Single-driving |
|||
After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
