Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > Gantry Type Plasma Cutting Machine PE-CUT-A3

Gantry Type Plasma Cutting Machine PE-CUT-A3

Name: Gantry Type Plasma Cutting Machine PE-CUT-A3
Brand: Perfect Laser
SKU: 144364576

Gantry Type Plasma Cutting Machine PE-CUT-A3 thumbnail-1

Gantry Type Plasma Cutting Machine PE-CUT-A3 thumbnail-2

Gantry Type Plasma Cutting Machine PE-CUT-A3 thumbnail-3

Gantry Type Plasma Cutting Machine PE-CUT-A3 thumbnail-4

Gantry Type Plasma Cutting Machine PE-CUT-A3 photo-1

Gantry Type Plasma Cutting Machine PE-CUT-A3 photo-2

Gantry Type Plasma Cutting Machine PE-CUT-A3 photo-3

Gantry Type Plasma Cutting Machine PE-CUT-A3 photo-4

US$ 8,500 - 9,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Hubei, China

Brand Name:

Perfect Laser

Contact Supplier Request Quote Chat Now

Perfect Laser (Wuhan) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Hubei, China

Brand Name Perfect Laser

Model Number PE-CUT-A3

Voltage 220V 110V

Rated Power 40A 60A 80A 200A 300A

Dimension(L*W*H) 4.02*2.2*1.56

Weight 600KG, 600kg

Certification CE, ISO , TUV , ISO2000

Warranty 12 months after shippment

After-sales Service Provided Engineers available to service machinery overseas

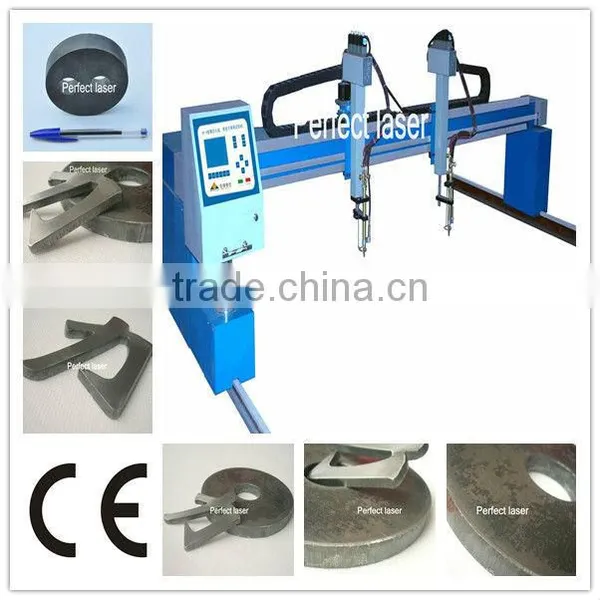

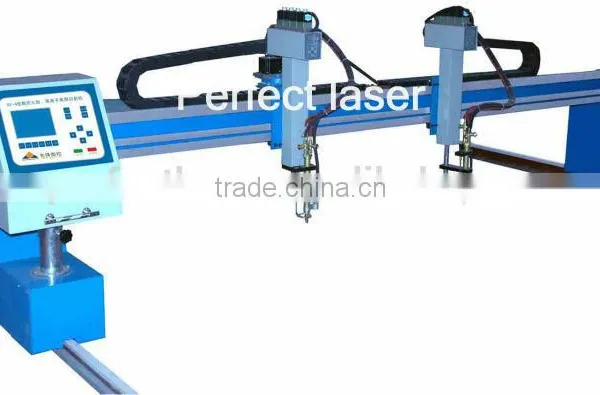

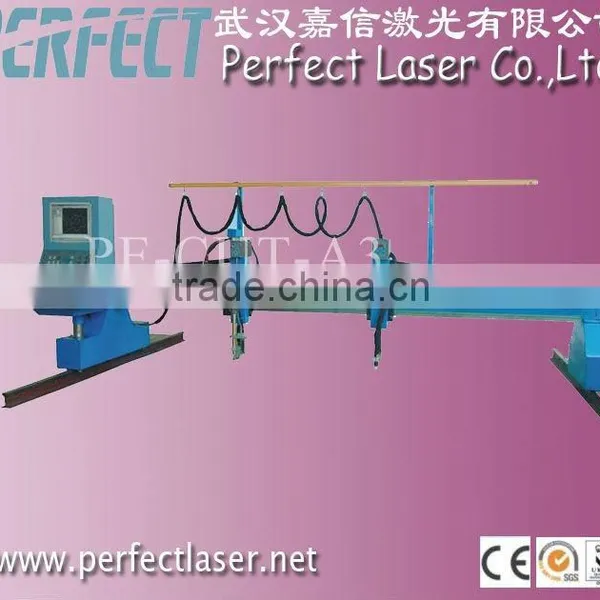

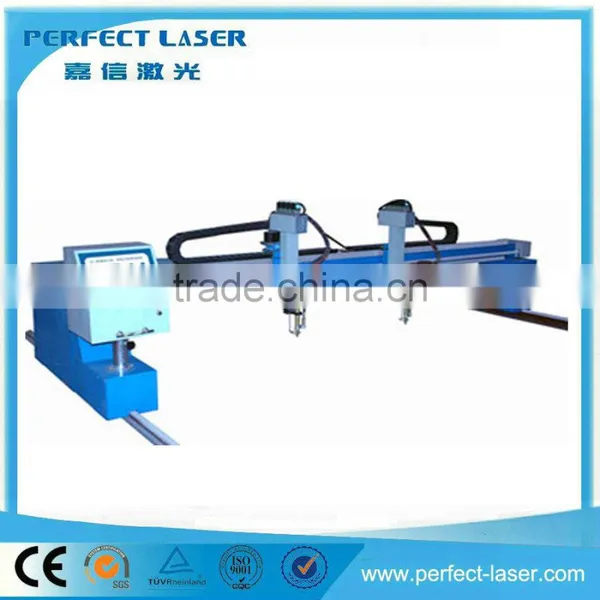

Gantry type plasma cutting machine PE-CUT-A3

Product Description

Product Features:

Machine design simple.

Bench-gantry structure, welding after the vibration aging treatment to eliminate stress, so that in the long-term use of no deformation.

All mechanical drive system using rolling bearings and precision machining accuracy as 6 GB of precision gears mesh with the rack

Planetary reduce drive system, its input and output error of only 16 arc minutes, at the same time, in the horizontal and vertical structure of the gear drive, an increase of automatic clearance compensation device so that it can accurately drive the structure of the implementation of the directives issued by the CNC.

Take the initiative to end beam: vertical track for the introduction of automatic clamping device-oriented structure and there is no eccentric clamping structure, relying on automatic detachable power-oriented structure to make it two. In the track combined with the smooth running of the department will not have a wheel clamp tight or lax-phenomenon.

All the equipment look to see, such as steel, screws, using black or chrome handle.

Spray machine to use more advanced types of paint, the color demand on users.

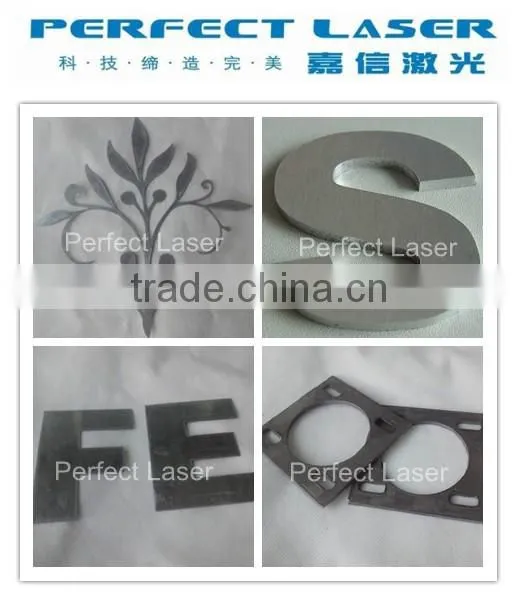

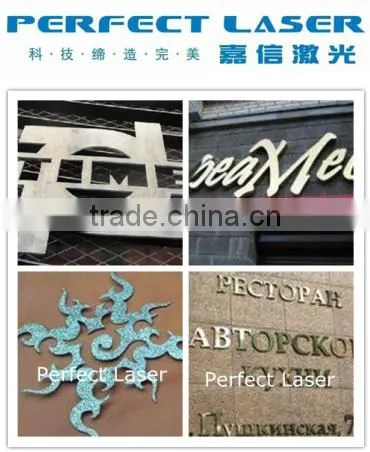

steel plasma cutting spare parts Application scope and material:

1. Hardly oxidized metal

2. Easily oxidized,

3.Stainless steel

4.Brass, aluminum, and zinc

steel plasma cutting spare parts Basic Information:

1. Shape gantry.

2.Adopt dual-driving, longitudinal tracks can be configured according to users.

3.The lateral cutting width is 3000 mm – 6000 mm

4.The longitudinal cutting length is 3000 mm.

5.Set up several cutting torch and CNC

6.The control system of this type equipped on industrial PC,it can draw CAD on spot,

7.Being able to track graphs while cutting.

Technical Data

lateral rail span	4000mm
effective incise width	3200mm
length of vertical rail	6000mm
effective incise length	4800mm
auto-inflame	1 set
NC cutting	1 set
controlled switch	some
lifting height of cutting	≤200mm
cutting speed	0-3500mm/min
roughness of cutting surface	Ra≤12.5μm
driving system	three-phase AC motor dual-driving
