portable smaller cnc plasma cutting machine with cheap price

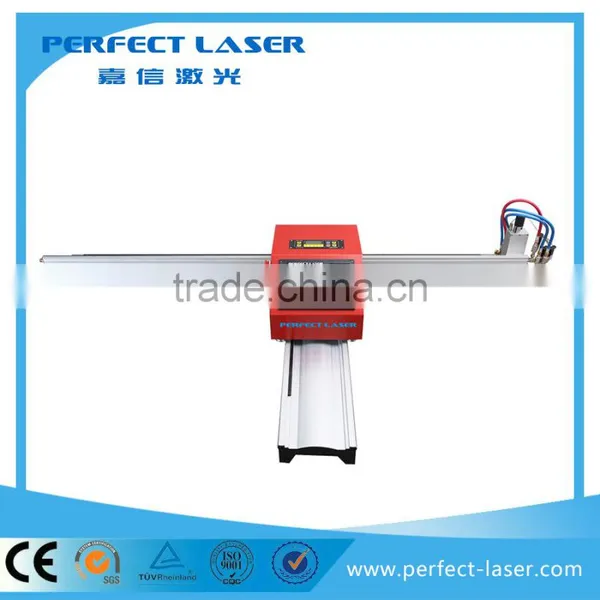

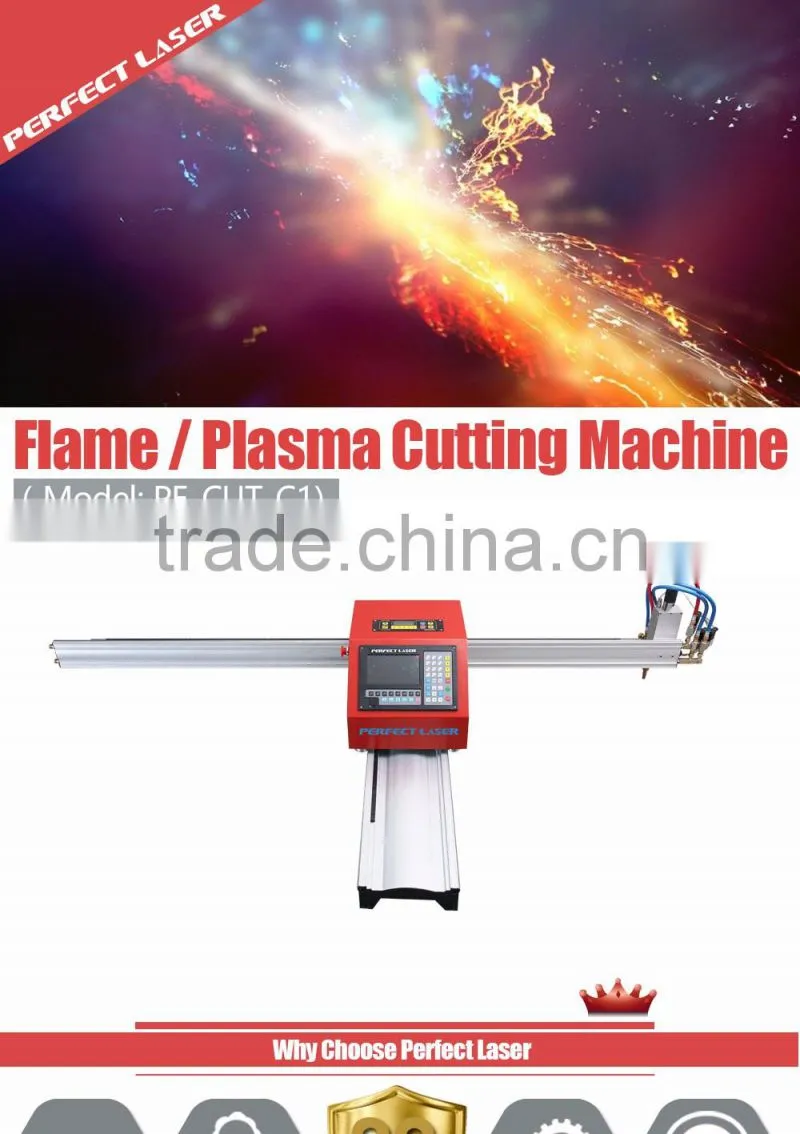

( Portable CNC Plasma Cutting Machine Model: PE-CUT-C1)
Contact: Lily Skype: perfectlaser01 Whatsapp: 008613659889218
Product Description of portable cnc plasma cutting machine:

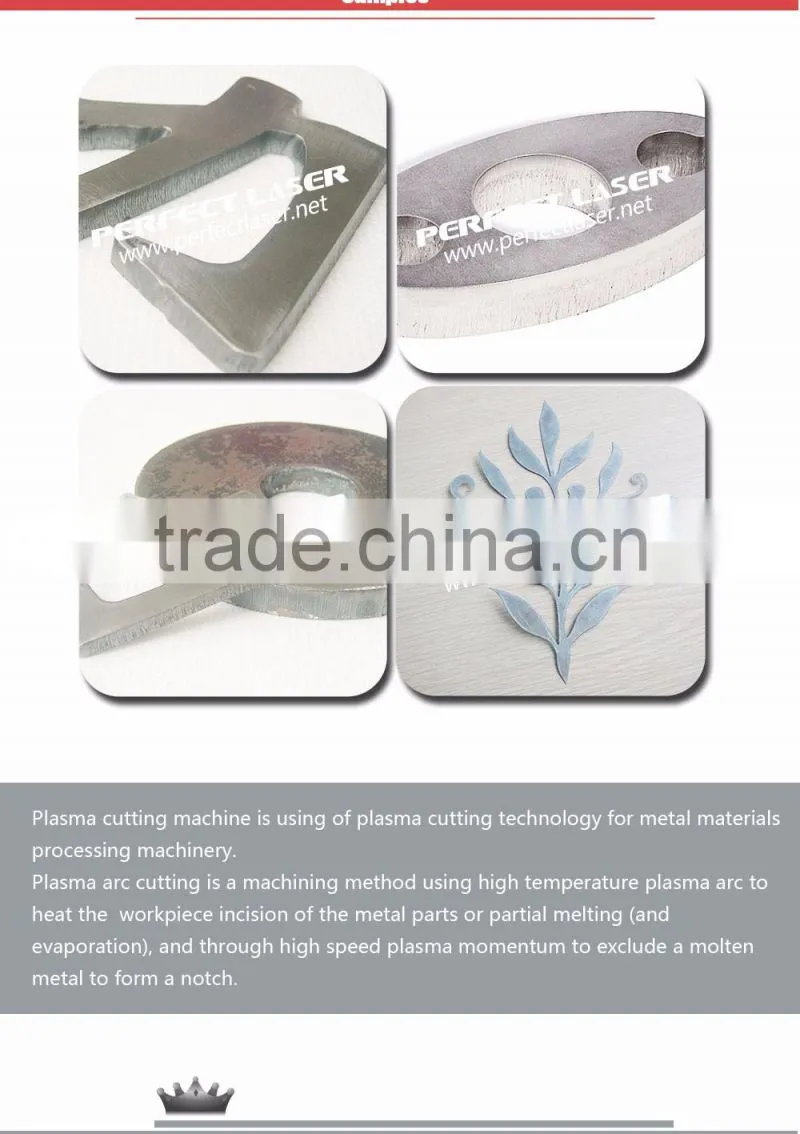

Flame and Plasma cutting machine is using of plasma cutting technology for metal materials processing machinery. Flame and Plasma cutting is a machining method using high temperature plasma arc to heat the workpiece incision of the metal parts or partial melting (and evaporation), and through high speed plasma momentum to exclude a molten metal to form a notch.
Advantages of portable cnc plasma cutting machine:
1. Flame and Plasma cutting machine is used for cutting the small thickness of metal, plasma cutting speed are high, especially cutting the ordinary carbon steel sheet cutting, speeds can up to oxygen cutting method of 5 ~ 6 times.
2.The cutting surface is smooth.
3.Thermal deformation is small, almost no heat affected zone.
4.Economic and practical.
5.Don’t need the compressor, transformers, gas cylinders and other auxiliary equipment, relatively portable, easy to carry.
Parameter Datas of portable cnc plasma cutting machine:
| Model | PE-CUT-C1 |
| Input power | 220±10%V AC 50HZ 220W |
| Cutting method |
Oxygen + propane or acetylene; configurable plasma cutting machine |
| Effective cutting range | 1000×1500mm(can be customized) |
|
Rail( length * width * thickness) |
2500×273×60mm,3000×273×60mm,3500×273×60mm,6000×273×60mm (optional) |
|
Sleeper (length * width * thickness) |
500×80×40mm |
| Cutting speed(mm/min) | 50-2000(max 4000) |
| Cutting thickness (flame) | 5-150mm(oxygen + acetylene or propane) |

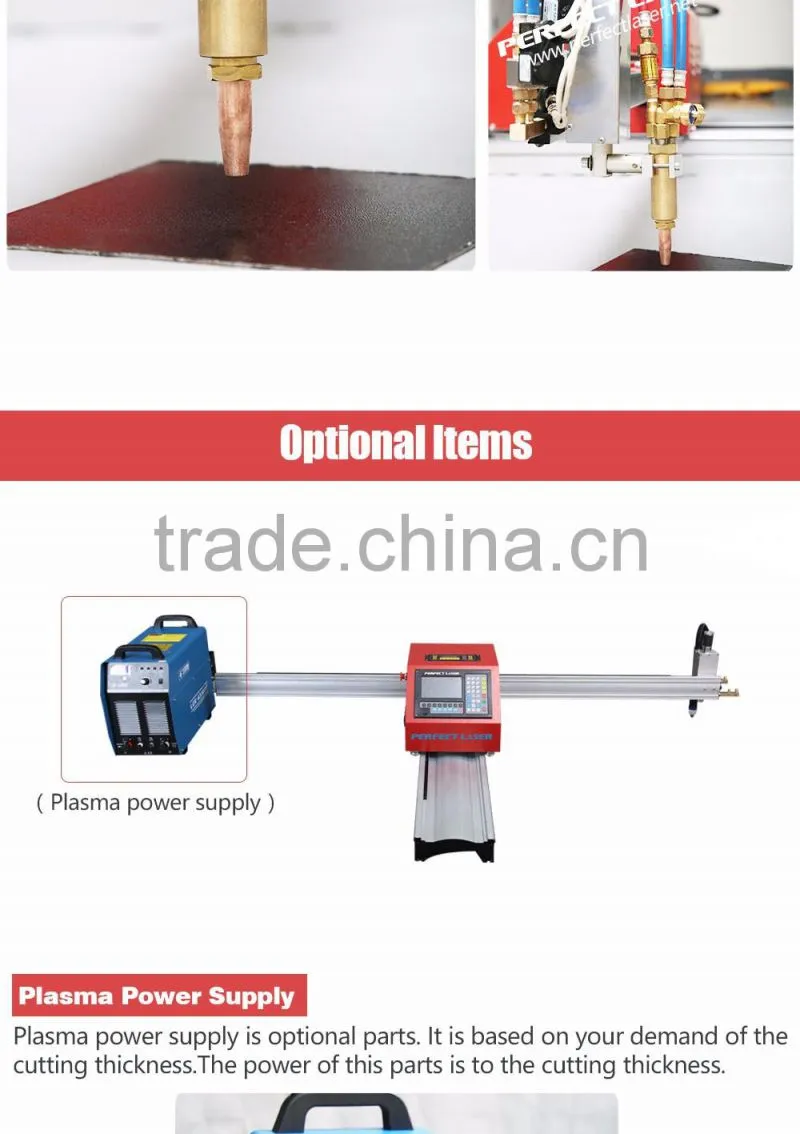

| Cutting thickness (plasma) | Depending on the customer's plasma power supply |
| Operating precision | ±0.2mm/m |
|

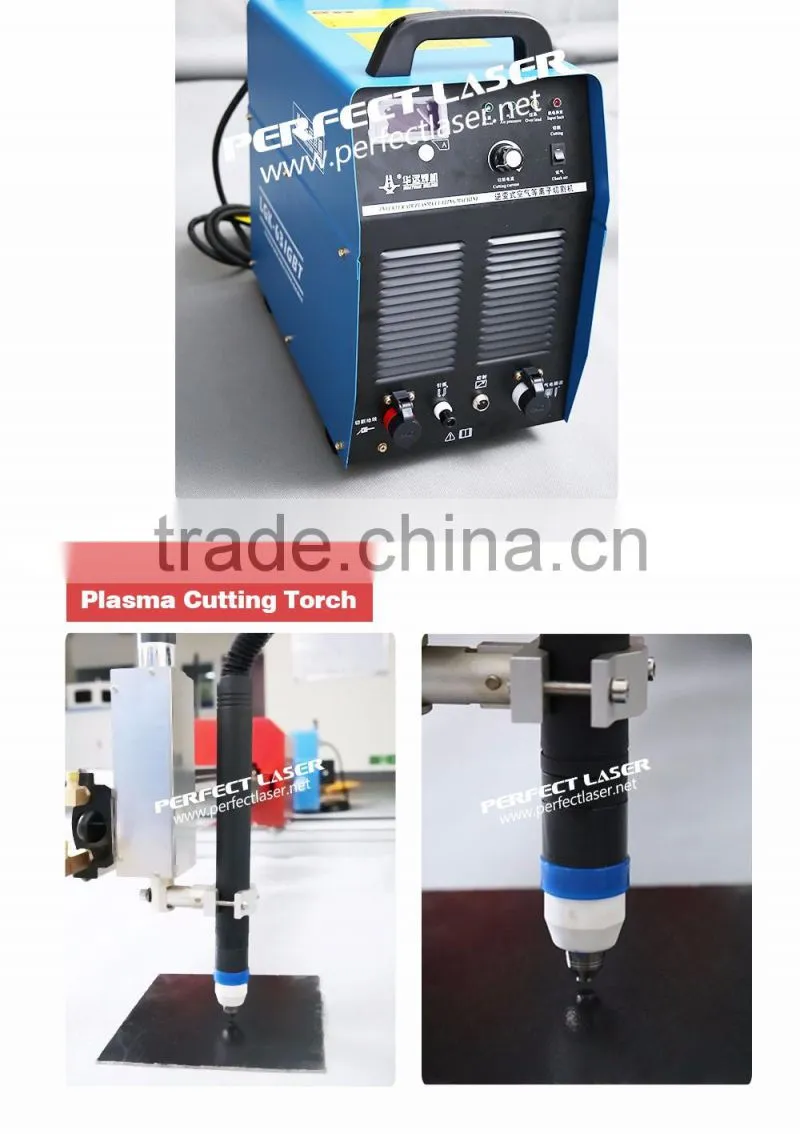

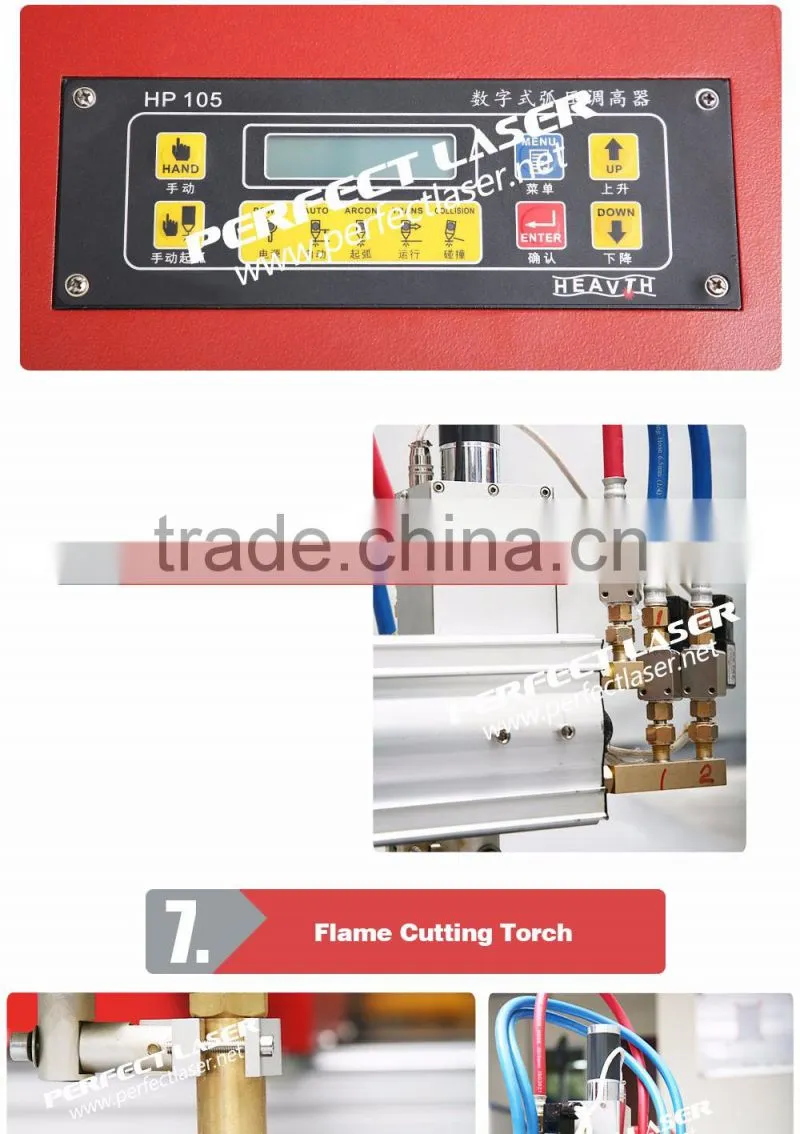

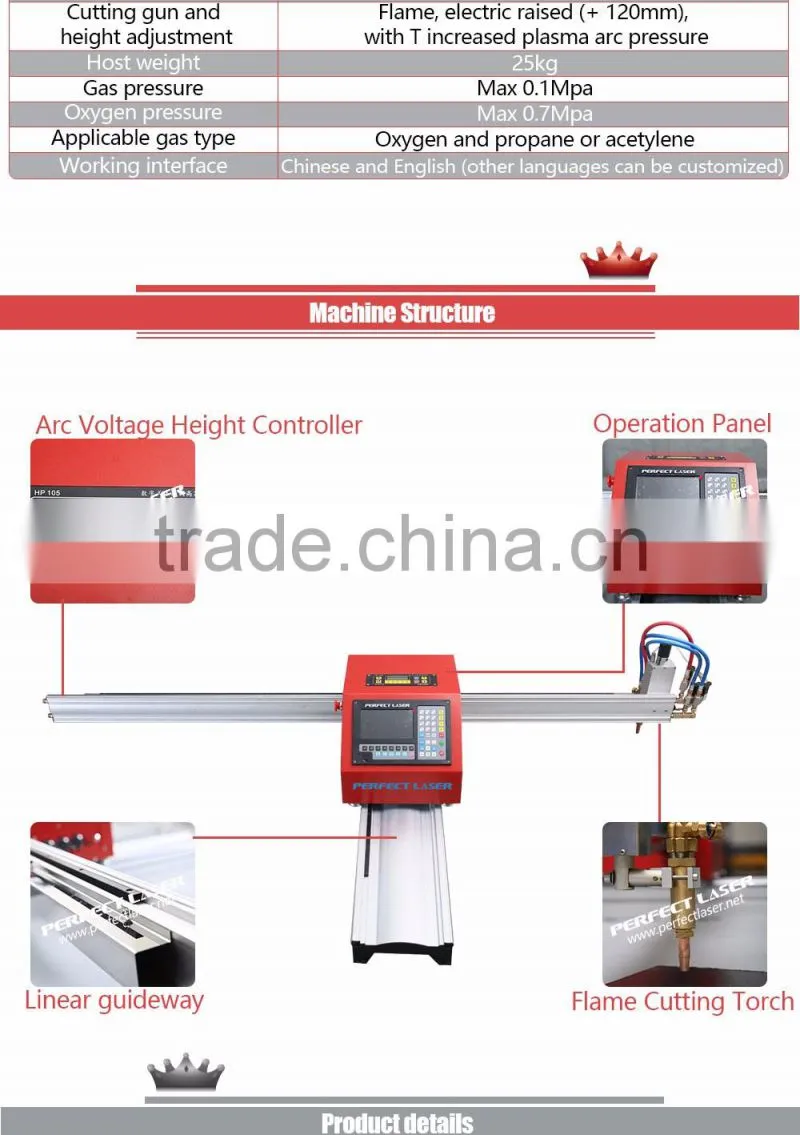

Cutting gun and height adjustment |
Flame, electric raised (+ 120mm), with T increased plasma arc pressure |
| Host weight | 25kg |
| Gas pressure | Max 0.1Mpa |
| Oxygen pressure | Max 0.7Mpa |
| Applicable gas type | Oxygen and propane or acetylene |
| Working interface |
Chinese and English (other languages can be customized) |

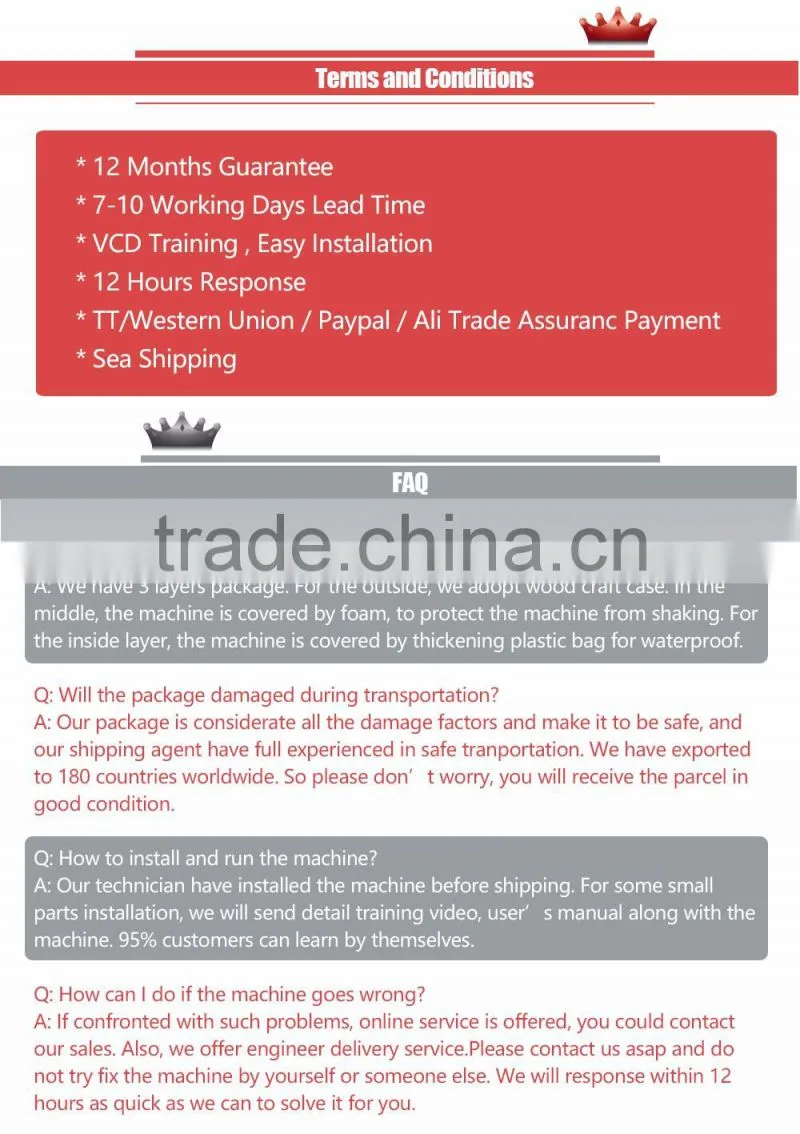

After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
