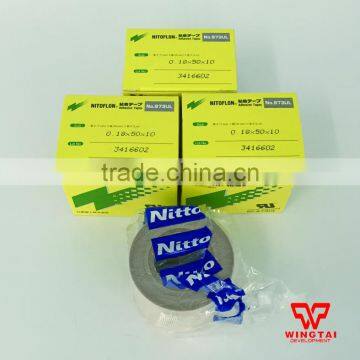

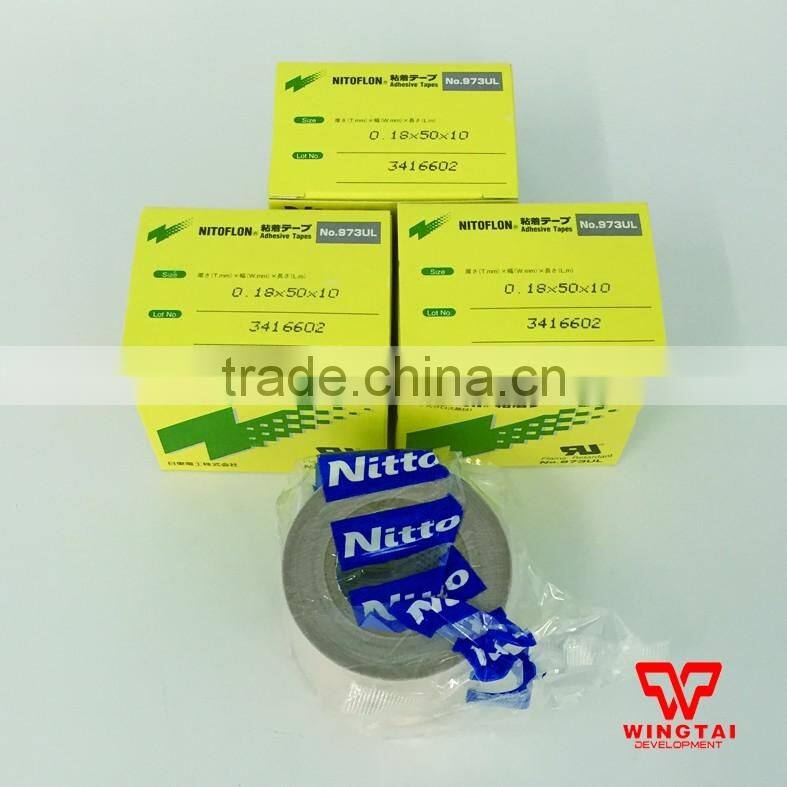

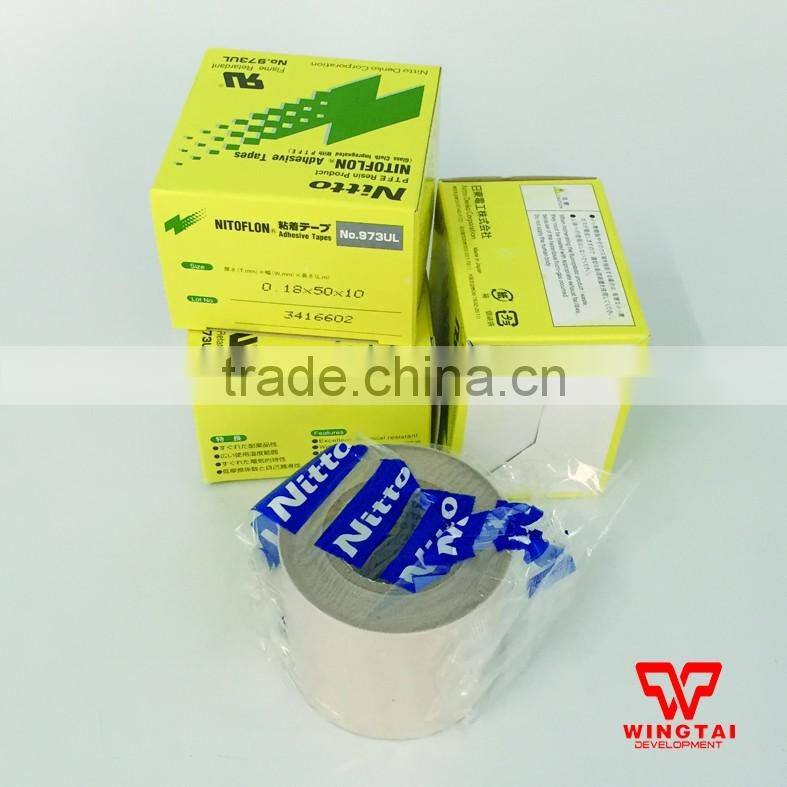

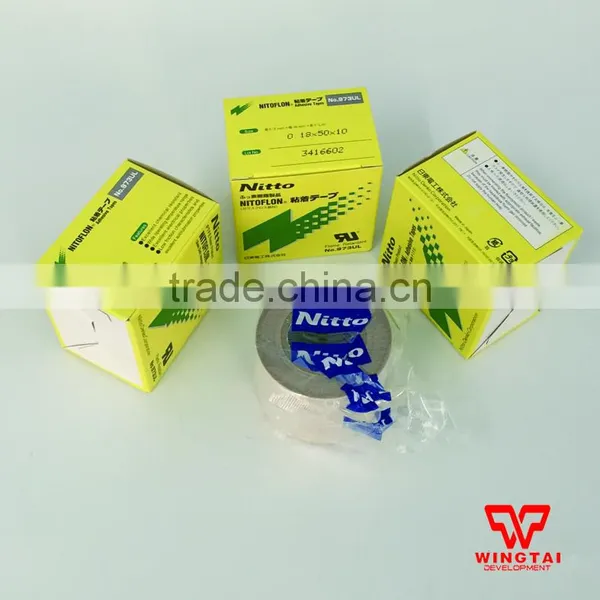

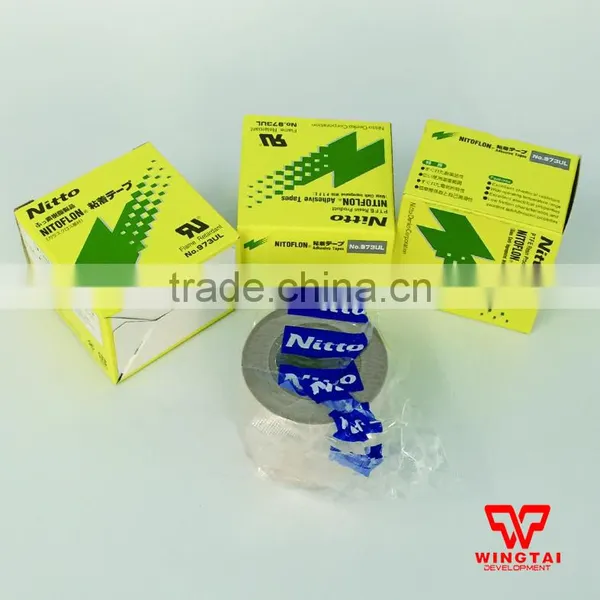

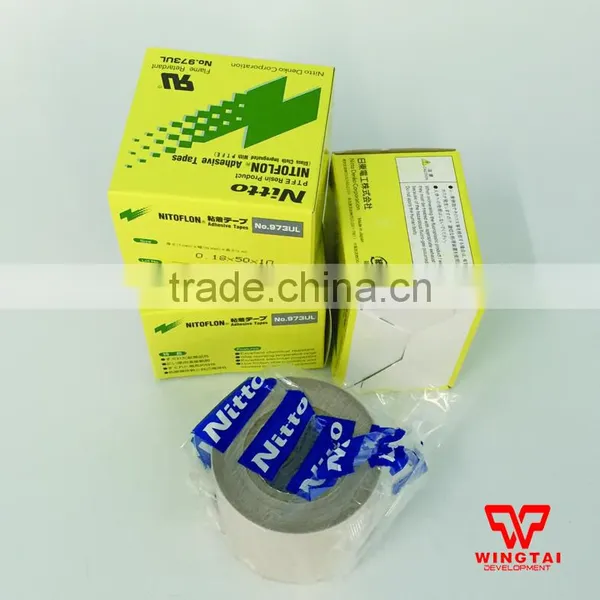

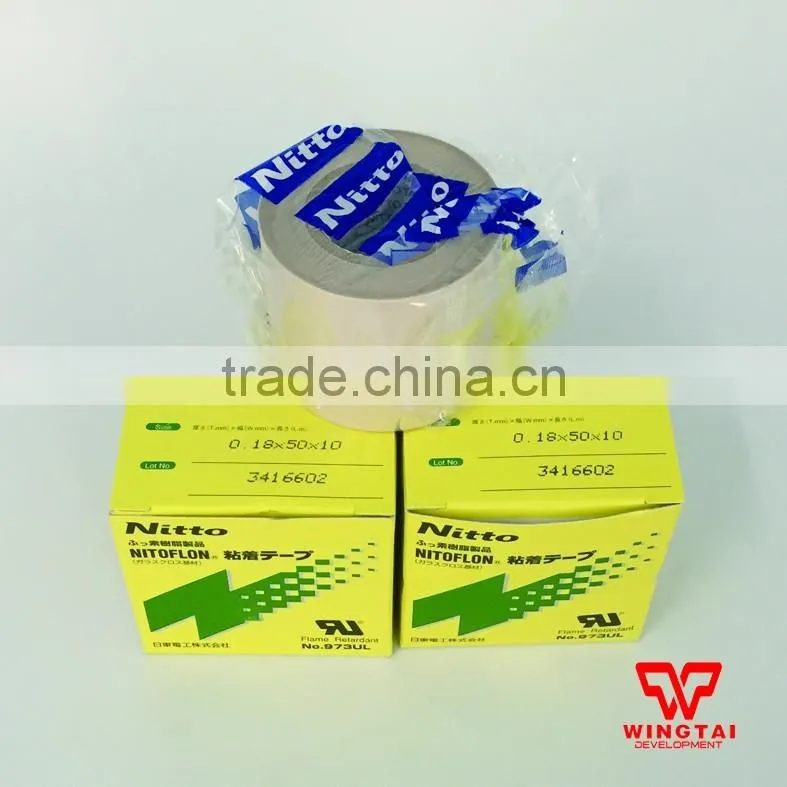

973UL T0.18mmW50mmL10m Nitto Nitoflon Tape

Name: 973UL T0.18mm*W50mm*L10m Nitto Nitoflon Tape
Brand: NITTO DENKO
Price: USD $26.5 - 28 / Roll

FOB Price

USD $26.5 - $28 / Roll

10 Rolls(Min.Order)

Supply Ability 3000 Roll / Rolls per Month
Port Shantou /Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Material:	PTFE	Use:	Masking	Adhesive Side:	Single Sided
Adhesive Type:	Hot Melt, Pressure Sensitive
Design Printing:	No Printing	Place of Origin:	Japan	Brand Name:	NITTO DENKO
Model Number:	973UL T0.18MMW50MML10M

Product Description

973UL T0.18mm*W50mm*L10m Nitto Nitoflon Tape

Model No. : 973UL

Size :0.18mm*50mm*10m

Hot selling !!!

Brand: NITTO DENKO
Origin: Japan
Adhesive Properties: Silicone;
Long-term temperature resistant: -60~280℃

Short-term temperature resistant: -50/300 ° C,

Tensile strength: (n / cm) 135-150;
Adhesion: (n/25mm)> 6.5.

Type : 973UL

Features

1:environmentally friendly products.
2:has a good off models and smoothness.
3:has good heat retention and dimensional stability.
4:T of non-adhesive surface with electrical characteristics, heat resistance, weather resistance, chemical resistance, water resistance (waterproof), low coefficient of friction, adhesion and other four non-fluorinated ethylene resin possess good properties.

Uses:
for the heat-resistant masking
for heat sealing
for the heat-resistant electrical insulation

General Properties:

Item		Unit	No.973UL-S	No.973UL		Test Method
Thickness		mm	0.13	0.15	0.18	Compatible with JIS C 2107
Tensile strength		N/19mm	240	590	530
Adhesive strength	25°C	N/19mm	6.8	9.0	9.7
	100°C		3.2	3.9	4.7
	150°C		2.2	2.6	3.0
Unwinding force		N/19mm	5.9	5.9	7.5
Temperature range		°C	-60~260

More relative Model Number:

Model	color	Specification			Short-term heat resistance (℃)	Continuous use temperature(℃)
Model	color	Thickness (mm)	Width(mm)	Length (m)	Short-term heat resistance (℃)	Continuous use temperature(℃)
No.973UL-S	Beige	0.13	10	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	13	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	15	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	19	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	25	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	38	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	50	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	75	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	100	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	300	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	600	10	300℃	-60~260℃
No.973UL	Beige	0.18	19	10	300℃	-60~260℃
No.973UL	Beige	0.18	25	10	300℃	-60~260℃
No.973UL	Beige	0.18	50	10	300℃	-60~260℃

Model Specifications:

Type	Spec.
923S	T0.10mmW38/50mmL33m
903UL	T0.08mmW13/19/25/38/50/300mmL10m
903UL	T0.18mmW19mmL10m
973UL-S	*T0.13mmW13/15/19/25/38/50/75/300/600mmL10m*

More model specifications, are welcome to inquire in advance orders!

Application

Widely used in the pharmaceutical industry, food industry, printing industry, industrial, chemical and other fields. The product is mainly used for bag sealing machine, etc.
