NITTO 923S

Name: NITTO 923S
Brand: NITTO DENKO
Price: USD $80 - 90 / Roll

FOB Price

USD $80 - $90 / Roll

1 Roll(Min.Order)

Supply Ability 1000 Unit / Units per Month
Port Shantou/Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Material:	PTFE	Use:	Masking	Adhesive Side:	Single Sided
Adhesive Type:	Hot Melt, Pressure Sensitive	Feature:	Heat-Resistant
Design Printing:	No Printing	Place of Origin:	Japan	Brand Name:	NITTO DENKO
Model Number:	NO.923S

Product Description

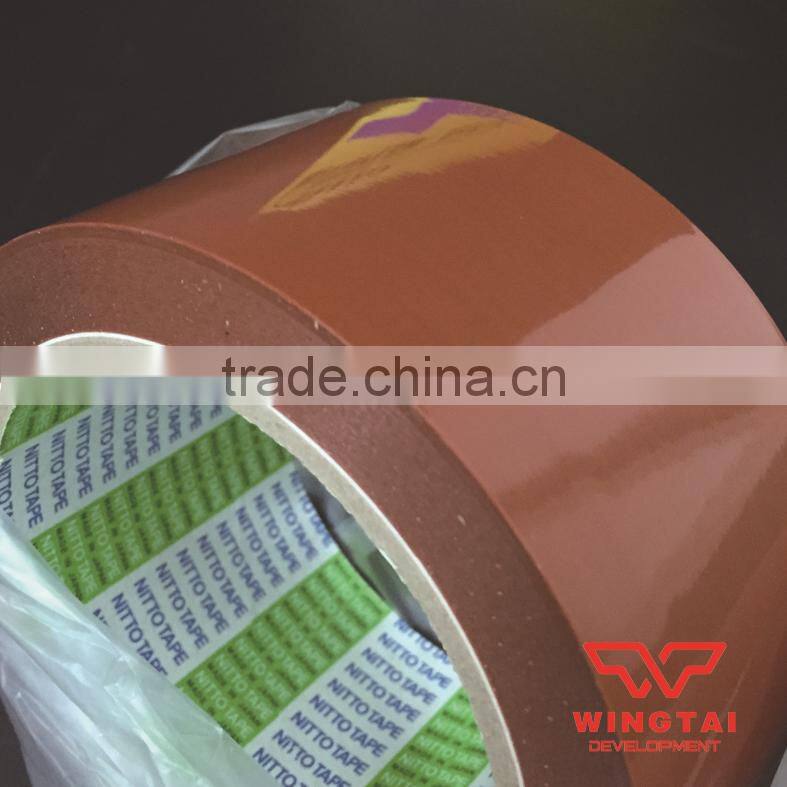

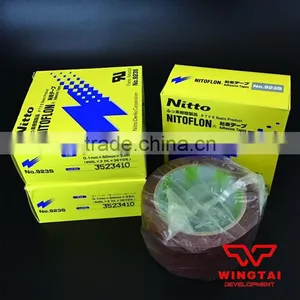

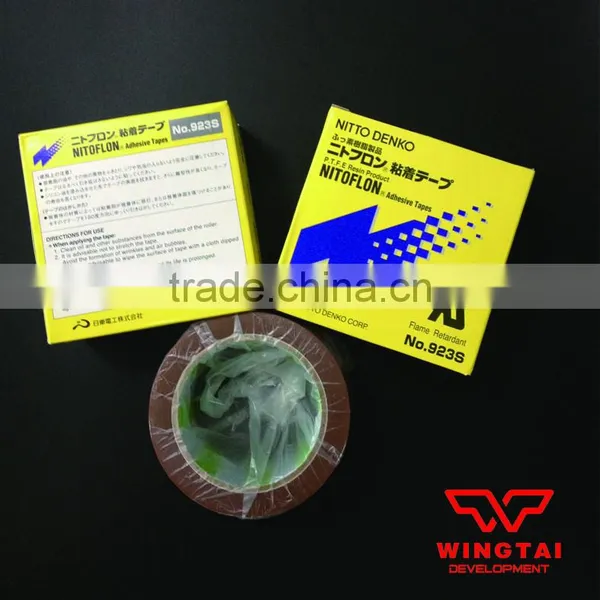

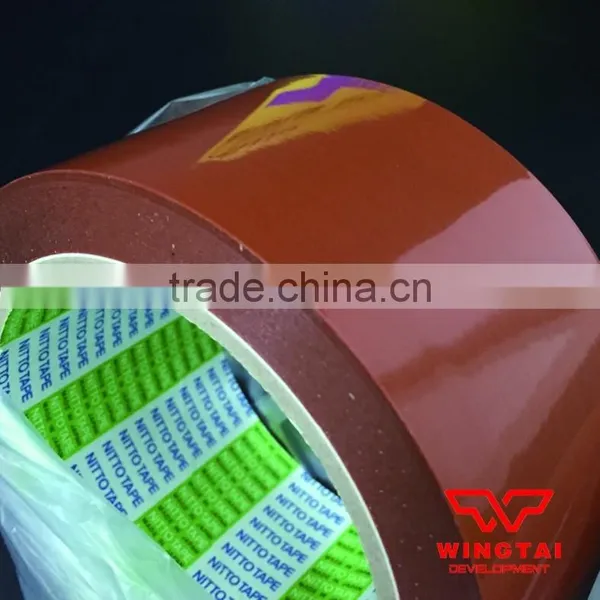

NITTO DENKO No. 923S NITOFLON PTFE Adhesive Tape

Product Description

Specification
	Color	Orange
	Spec.	T0.10mmW50mmL33m
	Backing Material	PTFE film
	Adhesive	Silicone
	Flammability Rating	Passes UL-510 Flame Test
	Short-term heat resistance	-50~300℃
	Continuous heat resistance	-50~250℃

Product Information

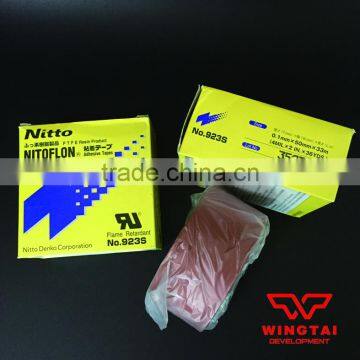

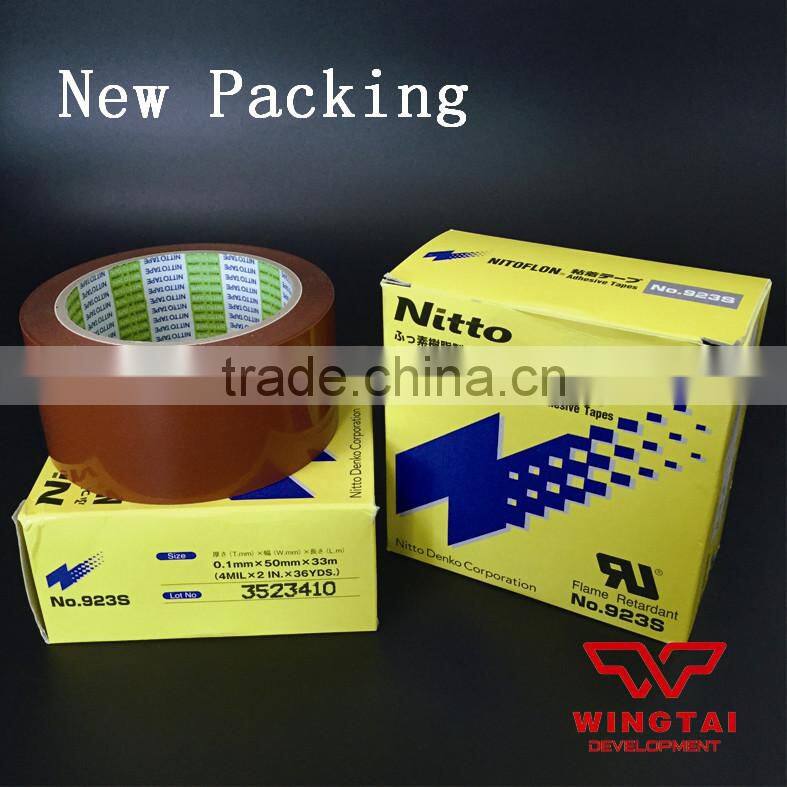

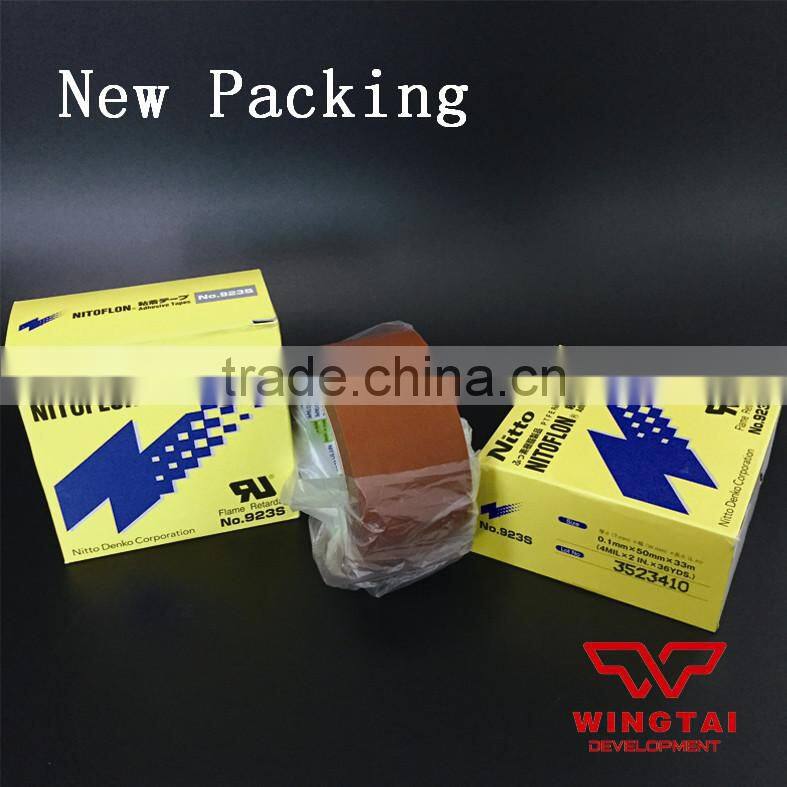

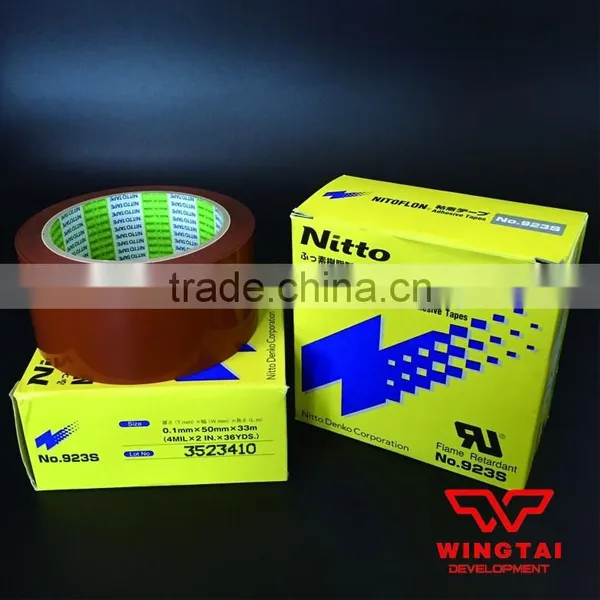

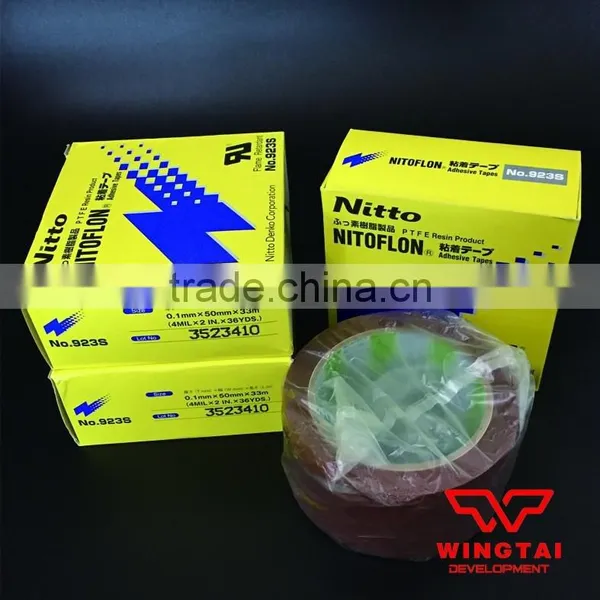

Note: Nitto tape has changed into new packing as it is showed above.

Features

1.The nonadhesive side exhibits excellent features such as desirable electrical properties, resistance to heat, weather, chemical, water (water-shedding), and anti-friction.

2. UL Rated.

3. Superior tensile strength.

4. Strong electrical properties.

Properties

BACKING MATERIAL	PTFE Film
ADHESIVE	Silicone
COLOR	Orange
Flammability Rating	Passes UL-510 Flame Test
	Imperial	Metric
Total Tape Thickness	3.9 mils	0.10 mm
Tensile Strength	37.7 lbs/in	128 N/19mm
Elongation	71%	71%
Dielectric Strength	11,000 volts	11.0 kV

More Specification

Specification

Model	color	Substrate			Short-term heat resistance (℃)	Continuous use temperature(℃)
Model	color	Thickness (mm)	Width(mm)	Length (m)	Short-term heat resistance (℃)	Continuous use temperature(℃)
NO.923S	orange	0.10	38	33	-50/300	-50/250
NO.923S	orange	0.10	50	33	-50/300	-50/250
