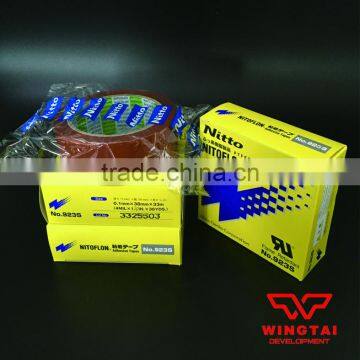

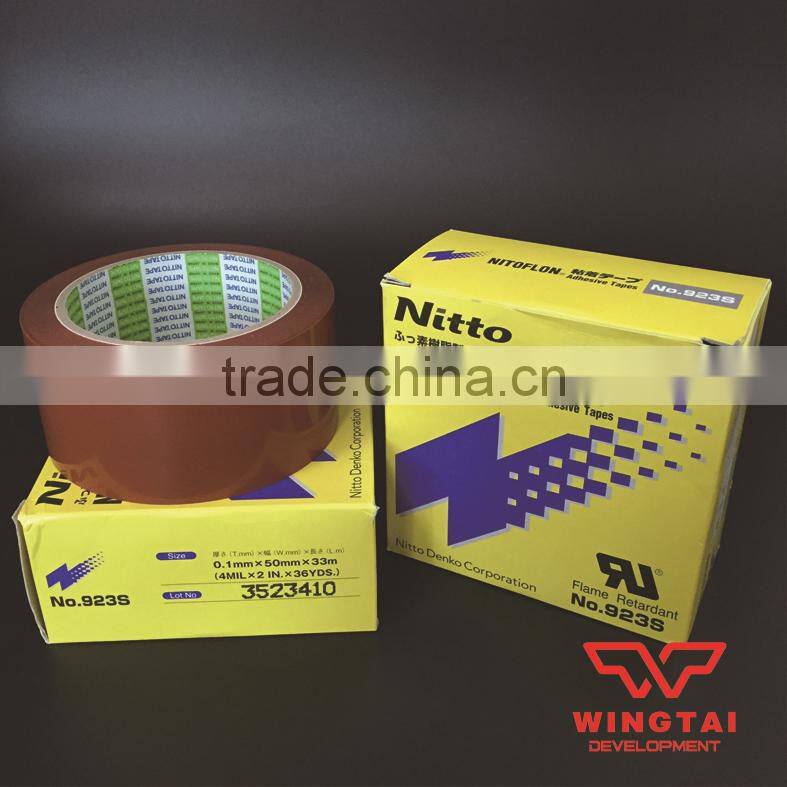

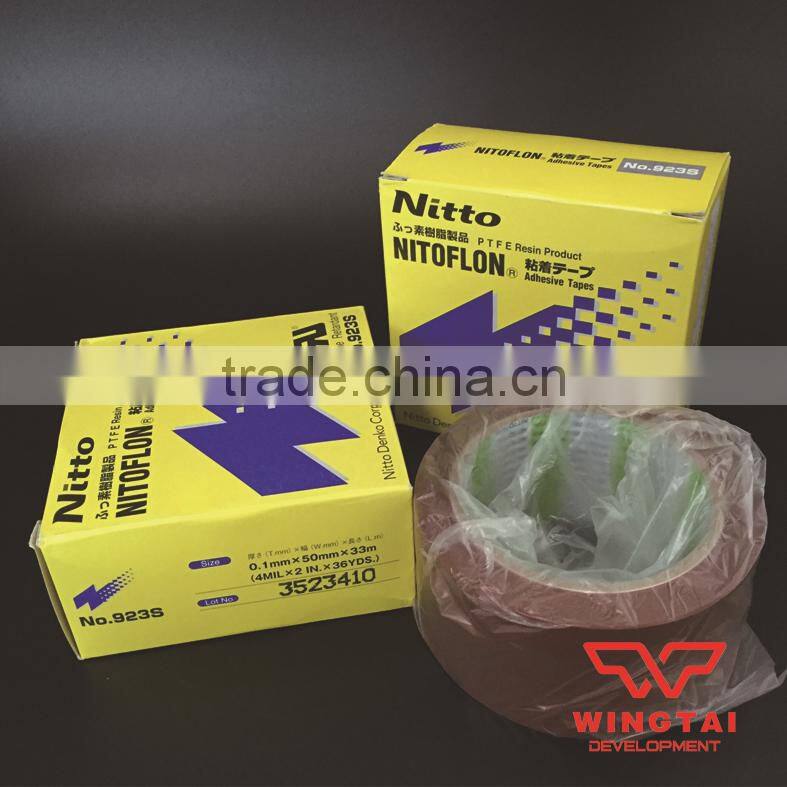

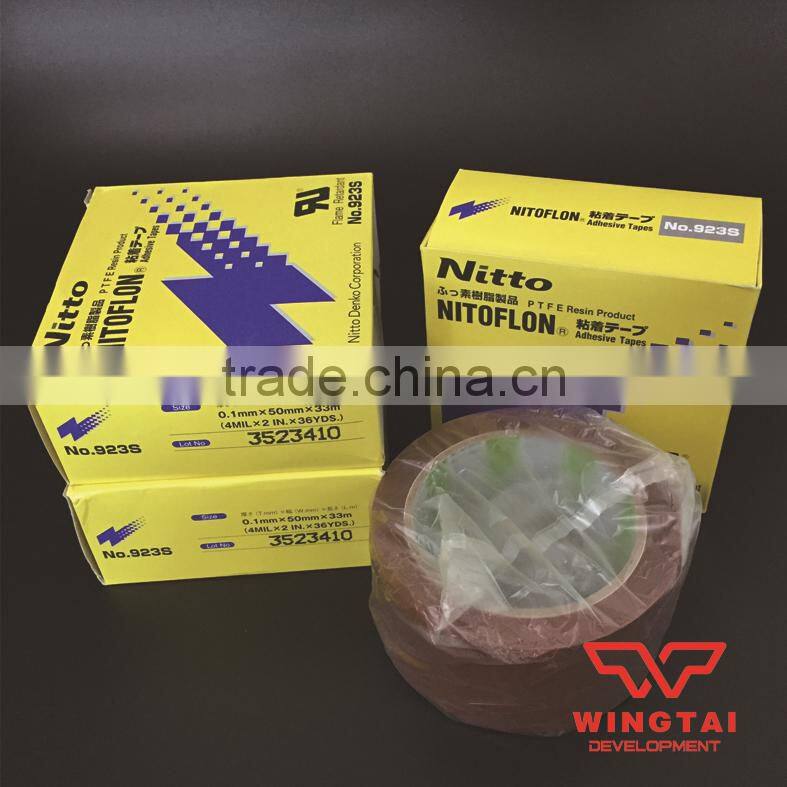

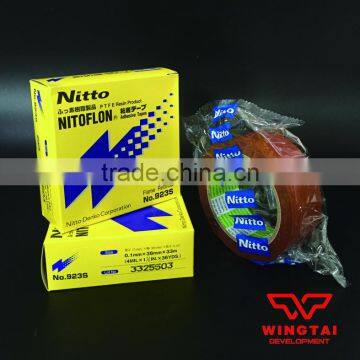

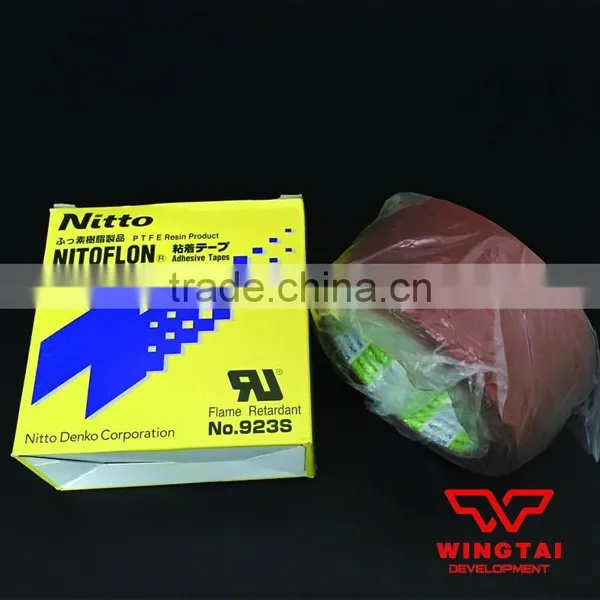

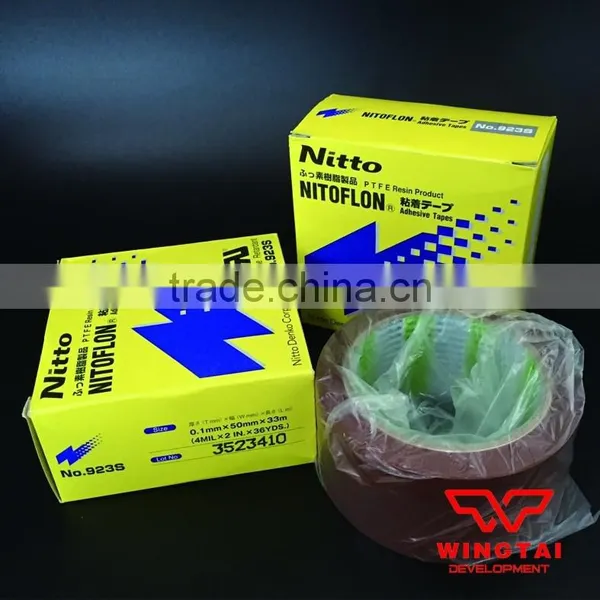

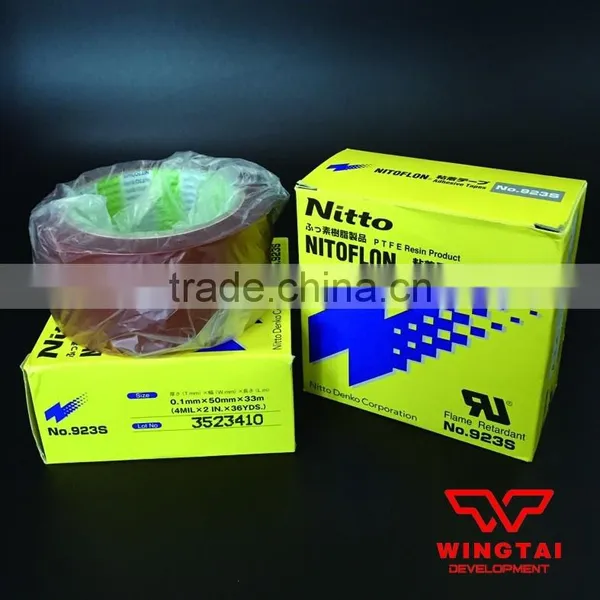

Nitto Denko Flame Retardant Adhesive Tape 923S
NITTO DENKO No. 923S NITOFLON PTFE Adhesive Tape
NO. 923S is a orange PTFE tape and use oriented polytetrafluoroethylene (PTFE) film as a based material. Single
surface treated and coated with a silicone adhesive can prevent with high heat and friction resistance.
· The non-adhesive side exhibits excellent features such as desirable electrical properties, resistance to
heat, weather, chemical, water (water-shedding), and anti-friction.
· UL Rated.
· Superior tensile strength.
· Strong electrical properties.
Product Construction
Properties
BACKING MATERIAL |
| PTFE Film | ||
ADHESIVE |
| Silicone | ||
COLOR |
| Brown | ||
Flammability Rating |
| Passes UL-510 Flame Test | ||
|
| Imperial |
| Metric |
Total Tape Thickness |
| 3.9 mils |
| 0.10 mm |
Tensile Strength |
| 37.7 lbs/in |
| 128 N/19mm |
Elongation |
| 71% |
| 71% |
Dielectric Strength |
| 11,000 volts |
| 11.0 kV |
Specification
Model | color | Substrate | Short-term heat resistance (℃) | Continuous use temperature(℃) | ||
Thickness (mm) | Width(mm) | Length (m) | ||||
NO.923S | orange | 0.10 | 38(7) | 33 | -50/300 | -50/250 |
NO.923S | orange | 0.10 | 50 | 33 | -50/300 | -50/250 |
| | |
| NITTO High Temperature Tape 973UL-S | Nitto PTFE Tape Nitoflon 975 | Nitto Denko Nitoflon Masking Tape 903ul |
| | |
| America Resistance 3M CIP36 Tape | Korea TACONIC PTFE Tape | TOFO Heat ResistanceTape |
