Home > Products > Laboratory Test Instruments > High Quality Two Side Wet Film Applicator For Paint

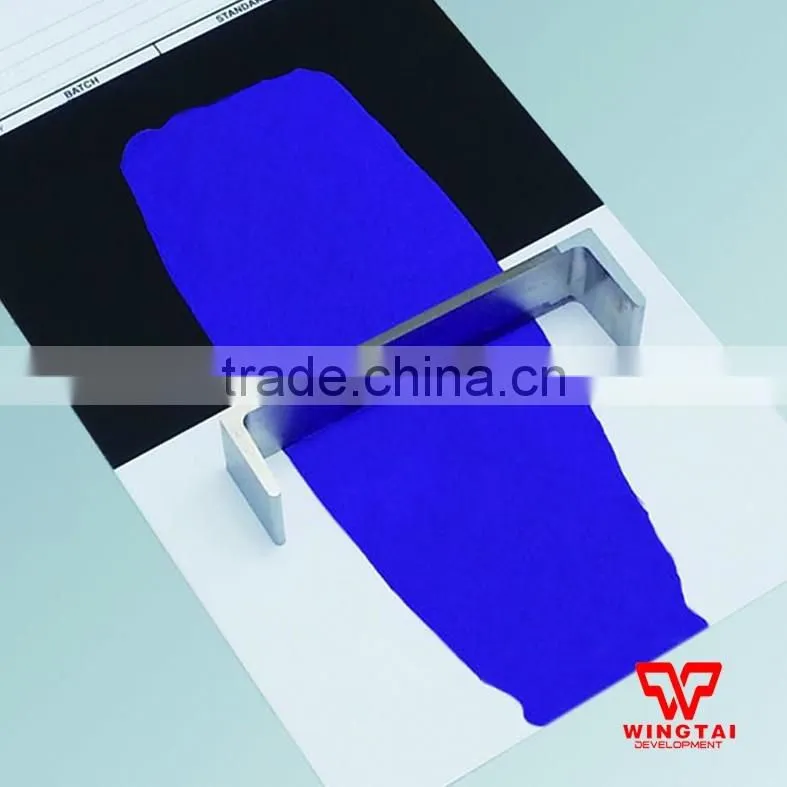

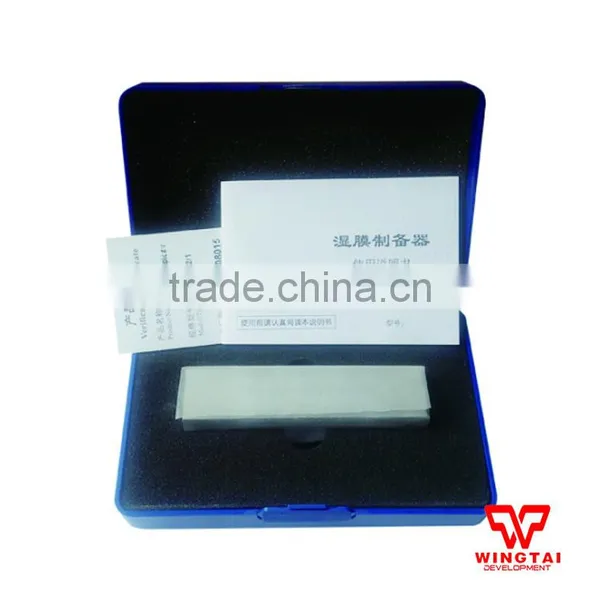

High Quality Two Side Wet Film Applicator For Paint
- 1000 Unit / Units per Month
- Shenzhen/Guangzhou
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Rongtai | Model Number: | 202 |
Power: | Other | Usage: | Other, dip-coating evenly paint on flat substrate, Binder and similar produc |
Product Description
High Quality Two Side Wet Film Applicator For Paint
1.Made of advanced stainless steel wear-resisting material
2.effective Width of coatingh: 80 mm;Total Length: 100 mm
For Conducting a credible and accurate determination for paint and coating,it requires the dry film or wet film real thickness (instead of assuming) should be under strict control. In ordinary quality control and research&development test, paint covering power, opacity, scrub resistance ability, sag resistance and other quality tests are required to have good consistency and repeatability of coating. Many ISO, GB, ASTM standards require to preset a same thickness coating. The most commonly use method of sample preparation is a wet film applicator, which can apply needed thickness from 0 to 3600 microns of coating.
Main technical parameters:
- High grade stainless steel wear- resisting material
- U type design convenient for disposable coating
- Effective coating width: 80mm
-Total length: 100mm
-Ordering information:
Order Information:

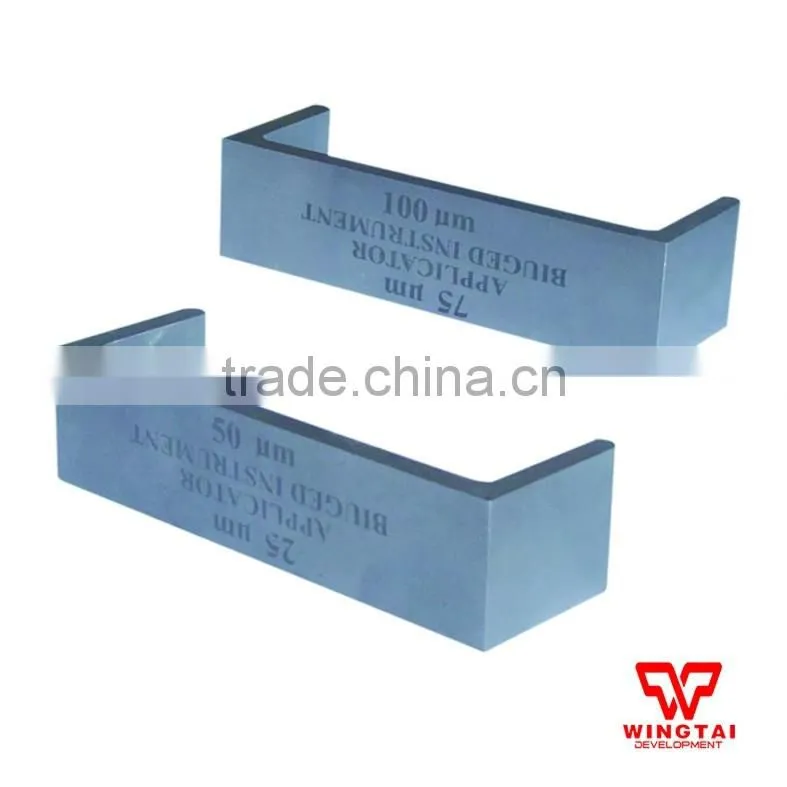

Model NO. | Coating Thickness | Groove Accuracy | Coating Width | Length |
BGD 202/1 | 25, 50μm | ±1 | 80mm | 100mm |
BGD202/2 | 75, 100μm | ±1 | 80mm | 100mm |
BGD202/3 | 150, 200μm | ±1 | 80mm | 100mm |
BGD202/4 | 300, 400μm | ±1 | 80mm | 100mm |
Double Groove Hegman Fineness Gauge | Single Groove Fineness Of Grind Gauge | 160*190mm lengthen type Stainless Steel 4 Side Wet Film Applicator |
(38um 76um) Cube Film Applicator | Hand Ink Proofer For Flexo Ink Tester | Bending Testing Cylindrical Shaft Bending Device |
Cross Cut Adhesion Tester For Paint | 50ml Stainless Steel Density Cup | GB/T 9264 Standard Sagging Tester For Pain |
Digital Display BGD186 Krebs Stormer Viscometer | RDS Scrape Ink Bar From United States | GB/T 1727-92 Standard AARON Scraping Ink Rod |
