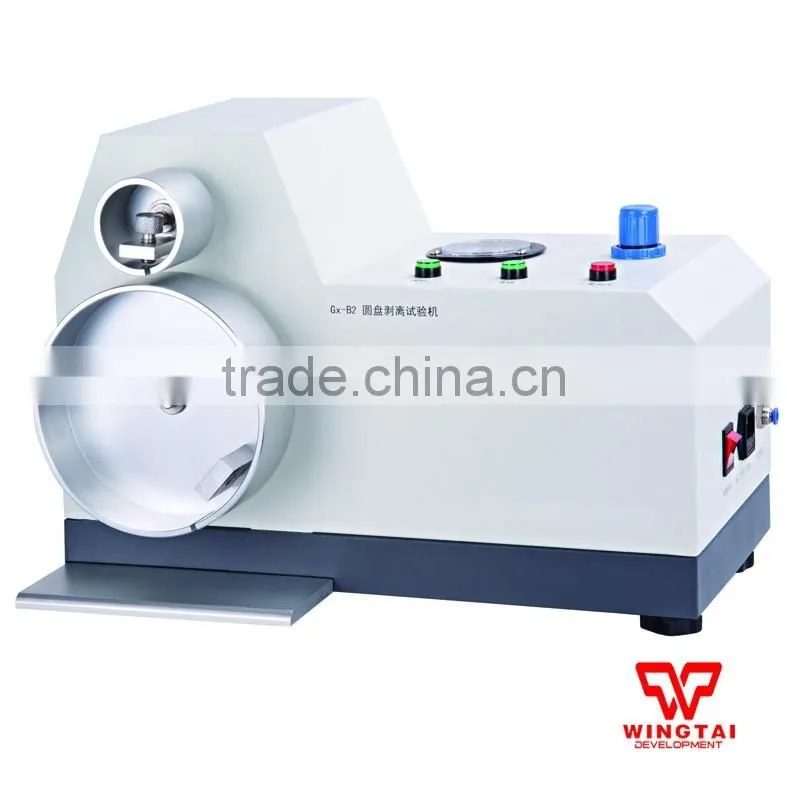

Help CenterGB/T 7707-2008 Standard Disk Stripping Tester For Plastic Film
Related Products
-
Gx-Y2 AdhesiveTape Roll Machine For Plastic FilmUS$ 2,448 - 2,460MOQ: 1 Piece -
Gx-Y2 AdhesiveTape Rolling MachineUS$ 2,448 - 2,460MOQ: 1 Piece
-
Standard Disk Stripping Tester For Plastic FilmUS$ 2,720 - 2,780MOQ: 1 Piece
-
Continuous Intaglio Proofing Press For LabelUS$ 4,100 - 4,300MOQ: 1 Unit
-
Gravour Continuous Intaglio Proofing Press For Label/Continuous Gravure Printing Ink ProoferUS$ 4,100 - 4,300MOQ: 1 Unit
This instrument is used for ink layer binding strength test of printing plastic film product.It can also be further extended for testing the surface adhesion status formed by coating, composite process.
Working Principle
Choose the glass tape and the ink printing surface standard.stick them together by standard load,rolling speed and rolling times.Put them there ,then separate them with certain pressure and speed.Observe the stripping condition, analysis ink layer combination fastness.
Testing Principle
It is used to stick the standard cellophane adhesive tape and printed surface of sample after adjusting test environment with standard rolling load,rolling speed and rolling times,place and adjust a certain time,then strips off the adhesive tape from test sample using Disk Peeling Tester with controlled force and speed allowing transfer of ink from adhesive tape to sample,observing the status of ink layer stripped of to determine the ink fastness properties and bonding strength.
Standards
GB/T 7707-2008,GB/T 7706-2008
1.Pneumatic pressure, pressure adjustable, easy to operate.
2.Have fixture in disk to fix the sample, easy to use
Pressure Between Disks |
100N |
Rolling speed |
0.8m/sec. |
Disk A size |
D170mm, width 55mm |
Disk B size |
D65mm, width 55mm |
Air supply |
Compressed air |
Air interface |
D6mm tube |
Instrument size |
40×18×35cm |
Power |
1000W |
Power Supply |
AC 220V,50Hz |
Net Weight |
21KG |
