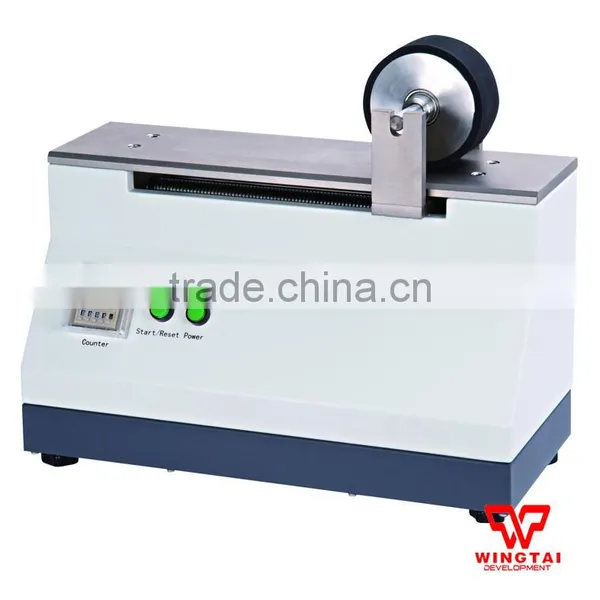

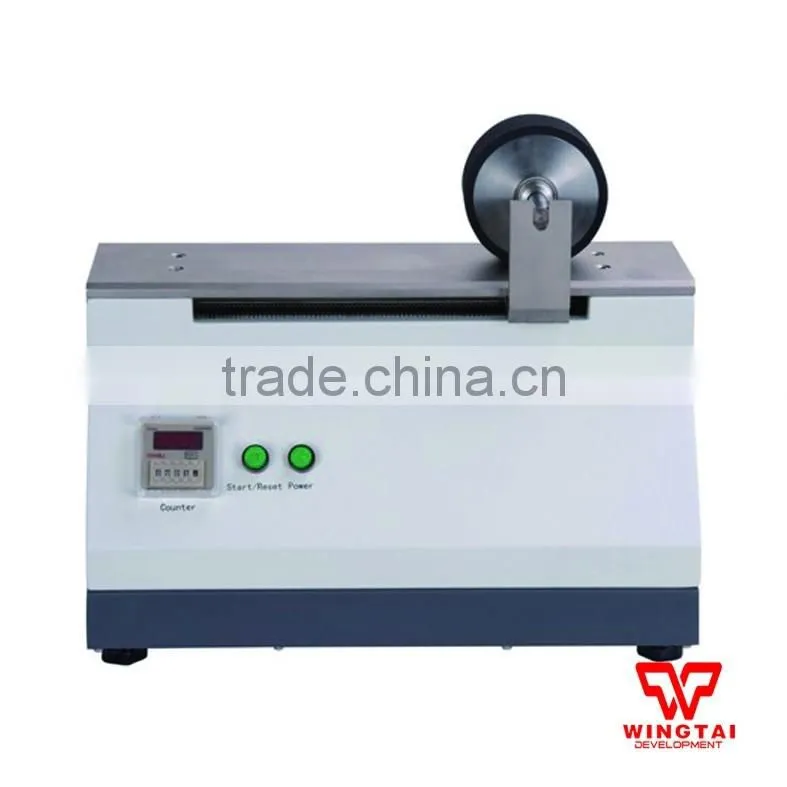

Gx-Y2 AdhesiveTape Rolling Machine
This instrument is used together with Gx-B2 Disk Stripping Tester; according to the Standards requirements,it sticks adhesive tape to the printed surface of plastic film to make sample for Disc Peeling Tester to do stripping experiment.
Working Principle
Stick adhesive tape to the printed surface of film sample, and press and roll to strengthen. This instrument is used together with Gx-B1 Disc Peeling Tester.
Testing principle
It is used to stick the standard cellophane adhesive tape and printed surface of sample after adjusting test environment with standard rolling load,rolling speed and rolling times,place and adjust a certain time,then strips off the adhesive tape from test sample using Disk Peeling Tester with controlled force and speed allowing transfer of ink from adhesive tape to sample,observing the status of ink layer stripped of to determine the ink fastness properties and bonding strength.
Standards
GB/T 7707-2008,GB/T 7706-2008,JIS C2107,JIS Z0237
Roller Load |
20N ± 0.5N |
Rolling speed |
300mm/min |
Roll number |
3-999 times |
Plate between the pressure |
100N |
Peel Speed |
0.8m / s |
Roller size |
Φ84mm, width 45mm |
Instrument size |
400x180x350mm |
Power |
1000W |
Power Supply |
AC 220V,50Hz |
Net Weight |
20KG |
Suitable for the standard rolling bonding in adhesiveness test of adhesive products.
|
|
|
