Gravour Continuous Intaglio Proofing Press For Label/Continuous Gravure Printing Ink Proofer

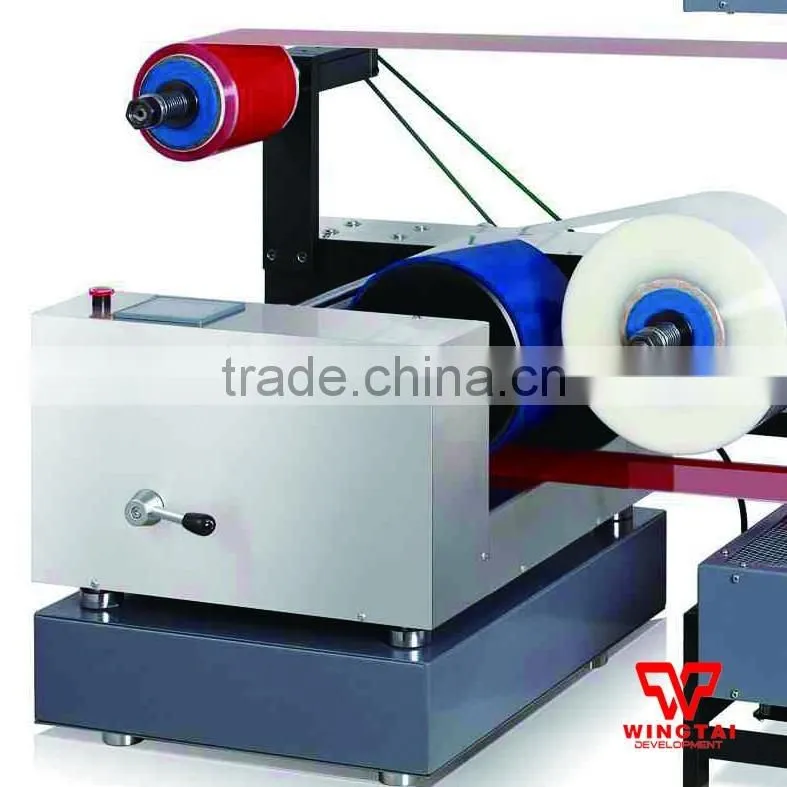

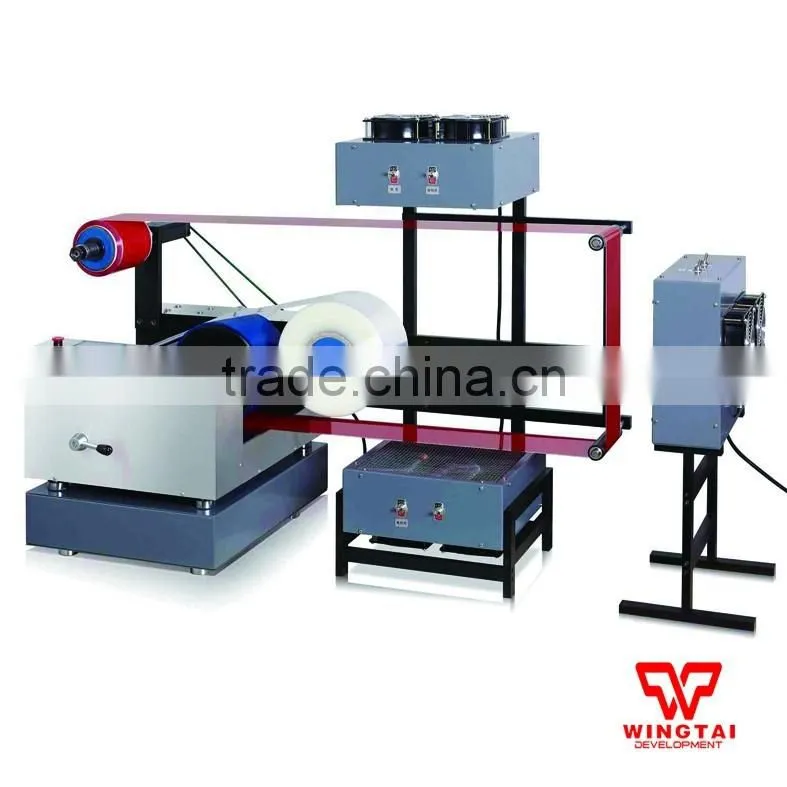

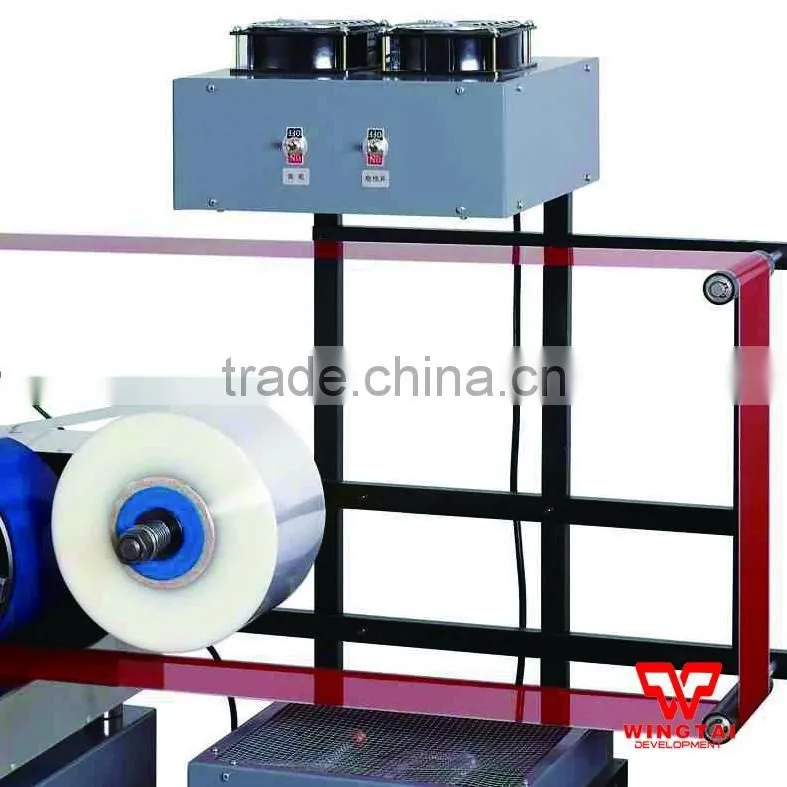

Gravour Continuous Intaglio Proofing Press For Label/Continuous Gravure Printing Ink Proofer photo-1
Gravour Continuous Intaglio Proofing Press For Label/Continuous Gravure Printing Ink Proofer photo-2
Gravour Continuous Intaglio Proofing Press For Label/Continuous Gravure Printing Ink Proofer photo-3

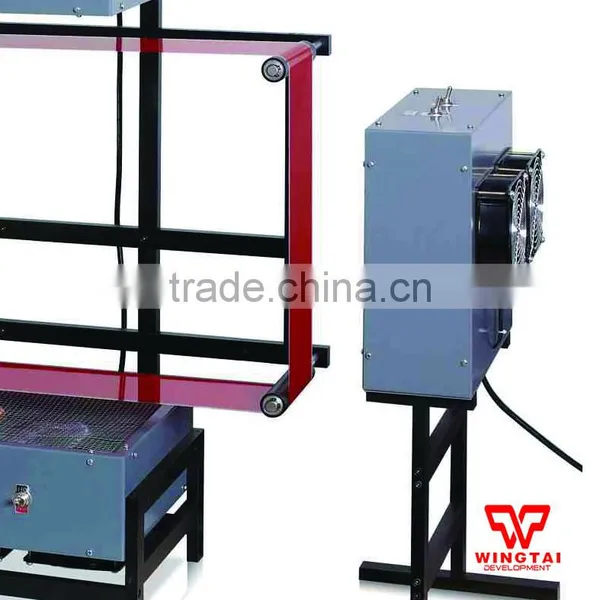

Gravour Continuous Intaglio Proofing Press For Label/Continuous Gravure Printing Ink Proofer photo-4

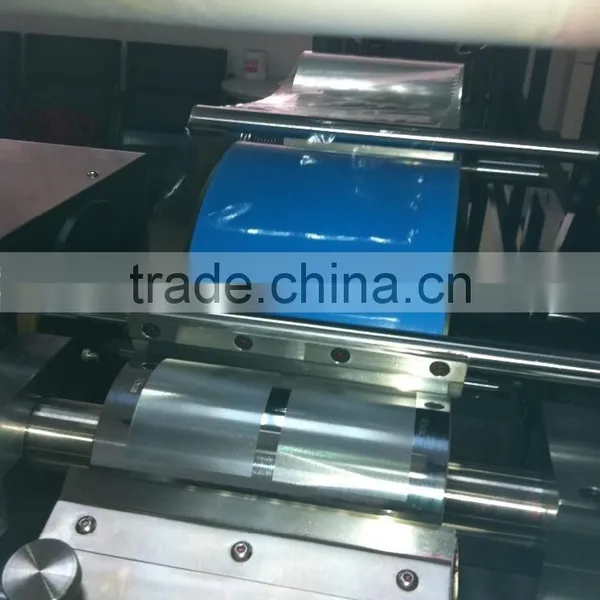

Gravour Continuous Intaglio Proofing Press For Label/Continuous Gravure Printing Ink Proofer photo-5
US$ 4,100 - 4,300 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Rongtai
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name Rongtai
Model Number CB100-EX
Usage Paper Printer, Other, Paper Printer, Fflexo printing
Automatic Grade Automatic
Voltage 220V 50HZ
Gross Power 120W
Dimensions(L*W*H) 525x430x280mm
Weight 110kg
Warranty One Year



Gravour Continuous  Intaglio Proofing Press For Label / Continuous Gravure Printing Ink Proofer



Technical parameter:



Input voltage: AC220V, 50Hz-60Hz Power: 0.2KW
Proofing pressure: -1 to +3mm, subject to tuning (4mm adjustable for pressing roller and printing roller)
Proofing speed: 0-130m/minute Outline dimension: 525X430X280mm Screen specs: 80X135mm
Screen quantity: One grid roller as standard configuration (customized screen available)
Color bar size: 52X65mm/6 bars
Printing material size: 250x120mm
Effective proofing area (design area): 100X200 mm
Paper material: Diameter less than 250mm, 3-inch paper roll.
Net weight: 110kg







 Gravour Continuous Intaglio Proofing Press For Label/Continuous Gravure Printing Ink ProoferGravour Continuous Intaglio Proofing Press For Label/Continuous Gravure Printing Ink ProoferGravour Continuous Intaglio Proofing Press For Label/Continuous Gravure Printing Ink Proofer
