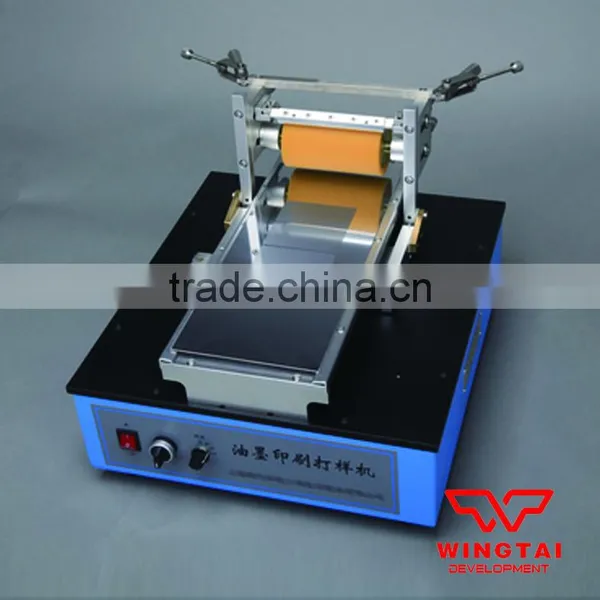

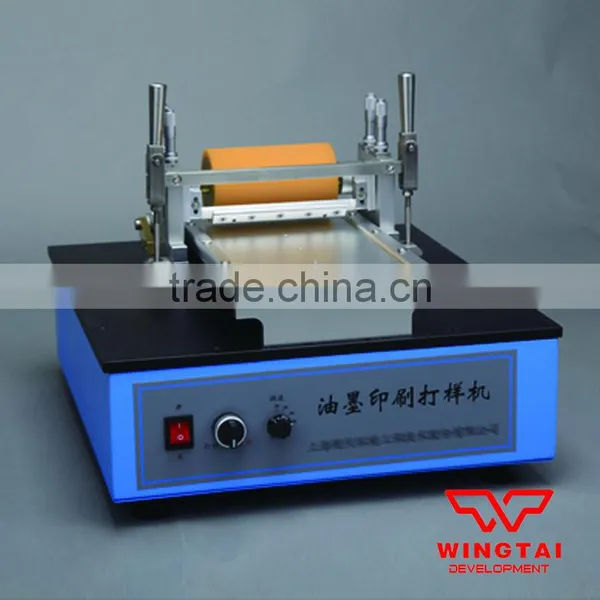

Gravure Printing Ink Proofer
High quality proofs using gravure, gravure-offset or flexo inks are produced instantly using the BGD Printing Proofer. Featuring electronically engraved printing plates and variable printing speeds of up to 45m/min, this is an essential tool for all those involved in the manufacturing or use of liquid inks. Ideal for R &D and computer colour matching data, quality control and presentation samples. And these Printing Proofers are very easy to clean and all parts are solvent resistant.
1.Almost any flexible substrate can be printed or laminated
2. Excellent printability ensured by micrometer control
3.Multiple ink samples may be printed simultaneously for comparison purposes
4. High printing speeds enable use of inks nearing press viscosity
|
Ordering Information → Parameter ↓ |
622/1 |
622/2 |
622/3 |
Applicable for |
Gravure Ink |
Flexographic Ink |
Water based Inks |
Motor Power |
120W |
120W |
70W |
Impression roller |
Φ76×130mm |
Φ50×130mm |
Φ19×153mm |
Roller Hardness |
Shore A 55 |
Shore A 50 |
Shore A 45~50 |
Printing Speed |
Four sorts: 20-30-40-45m/min |
Four sorts: 20-30-40-45m/min |
4-15 m/min (Adjustable variable speed) |
Printing Length |
150mm |
150mm |
180mm |
Power |
220V 50Hz |
220V 50Hz |
220V 50Hz |
Overall Size |
500×425×350mm |
500×425×350mm |
500×425×240mm |

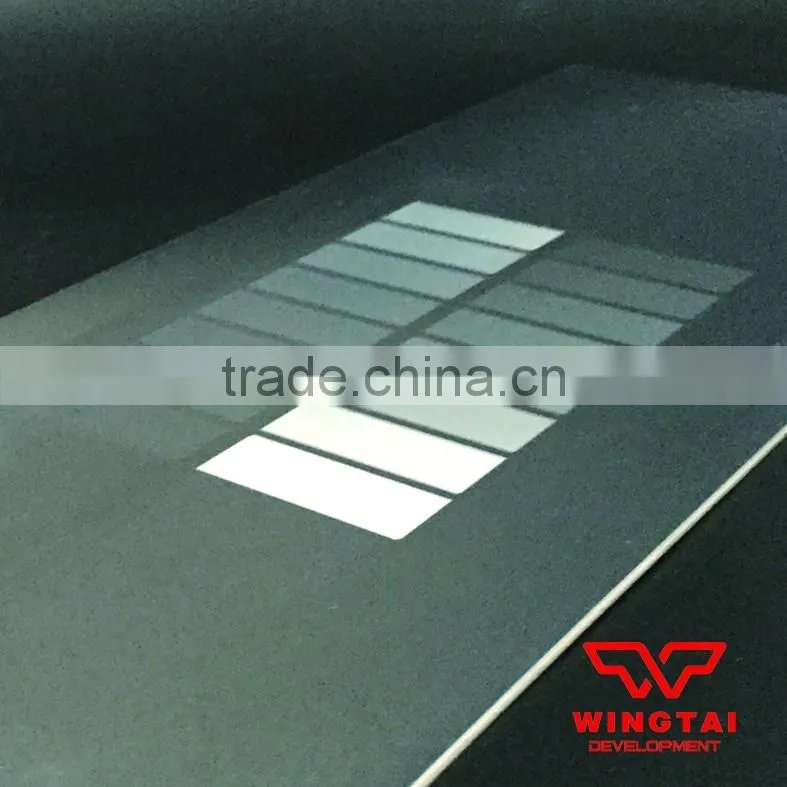

Printing Plate
Printing plates for use with the Printing Proofer are electronically engraved in exactly the same way as production cylinders. A choice of one or more of the standard plates available will normally be satisfactory.
