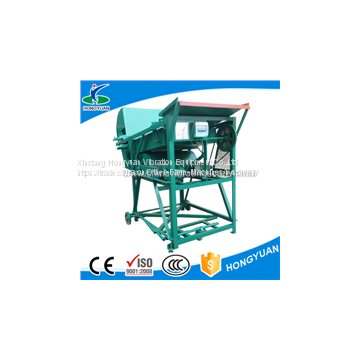

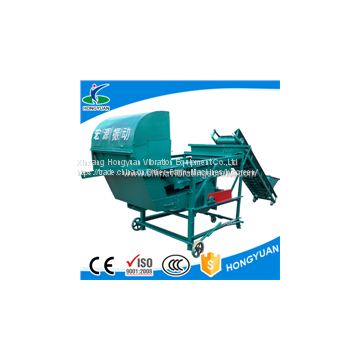

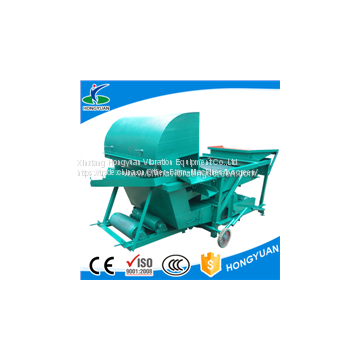

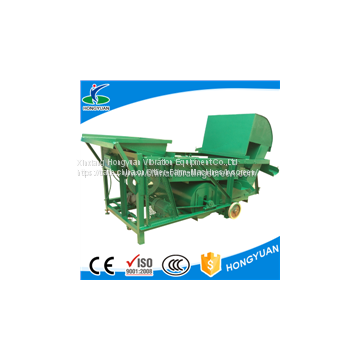

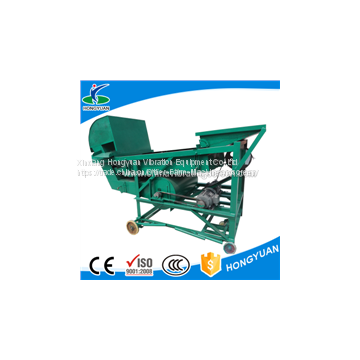

Small and mobile sun flower seeds farm selecting machine

Small and mobile sun flower seeds farm selecting machine

Product description

Small and mobile sun flower seeds farm selecting machine is also a kind of food screening machine.The screen mesh can be replaced as per different grain size,so it is suitable for the cleaning and screening of corn, wheat, peanut, soybean, rice, millet, cotton seed, tea seed and other economic crops.

Tips

Cleaning is the removal of foreign substances and impurities in the material;Classification refers to the classification of materials according to their size, shape, density or quality.

Type Images

As per demand, there are two types of machine which one is only for cleaning and sieving. It can be outlet directly after sieving.

Working principle

• There are three screen decks of this machine. At first,the the front screen will sort out the dust and similar impurities. Then the main fan will suck it out at last part. First screen deck is for the big impurities, second decks for cleaning grain, third decks is for broken grain and sand etc.

• And another one is cleaning sieving machine with throwing device. After the grains finished cleaning, it will be casted out by Grain throwing device to realise sort out the stone and mildew grains. This machine also solves the question of feeding grains after screened. The grain granule can be thrown straight line shape, throwing distance can reach 6-8 meters, the machine without food conveyor belt can be directly run into the house of the rolls, it is also called "grain winnower".

Advantages

1.Two types of the machine.

2.Small: it is convenient to move the sifting machine, and there is a moving wheel under the machine, and one can move back and forth.

3.Multi-function: the sieve separator can be used to sift the different particle materials, and the sieving machine can realize the sieving of the material by changing the mesh, realizing the purpose of multi-purpose.

4.Large output: the cleaning screen was selected for 8 tons per hour.

Packing

In standard fumigation ply wooden box

Company

Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating.
The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment ,such as screw conveyor,drag conveyor and high-pressure conveyor  as well as elevating equipment .

Match Products

The machine can also be used, such as grain auger, belt conveyor, bucket elevator, do transmission, from one point to food machine for processing, and then by the discharging mouth of the grain cleaner for packaging, transport, loading, etc.
