Small Footprint Mobile Convenient Sunflower Seed Selection Machine

Small footprint mobile convenient sunflower seed selection machine

There are three layers of sieve bottom of this machine. At first,the front screen will sort out the dust and samilar impurities. Then the main fan will select at last part. After the grains finished cleaning, it will be casted out by Grain Casting Machine to realise sort out the stone and mildew grains. This machine also solves the question of feeding grains after screened. First layer is for the big impurity, second layer for small impurity, three layer is for half a grain, and fourth layer for sand etc.

The grain granule can be thrown straight line shape, throwing distance can reach 6-8 meters, the machine without food conveyor belt can be directly run into the house of the rolls, it is also called "grain thrower without wind".

This new type grain winnowing machine is suitable for grains corns wheat sorghums millets rapeseeds sunflower seeds,beans and so on .It is widely applied in the livestock breeding, small farm, small feed producing cocompany,grain and cooking oil processing factory,wind plant,chemical plant and pharmaceutical factory etc.

With wheels , it is very easy to move .

With hand crank , you can use it for manual or electrie

The machine can be changed the punching mesh or the stainless steel mesh according to the grain granule size.

Multi-purpose by change the mesh or adjust the blowers so as to meet the different sieving or throwing demand.

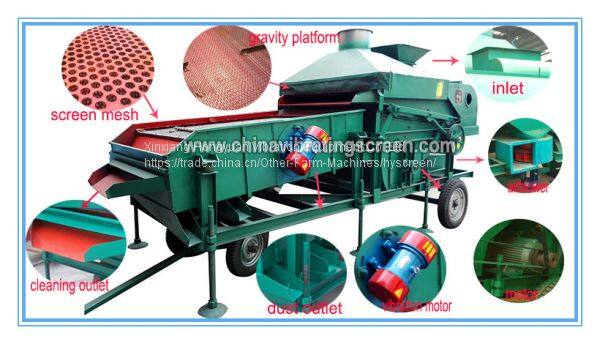

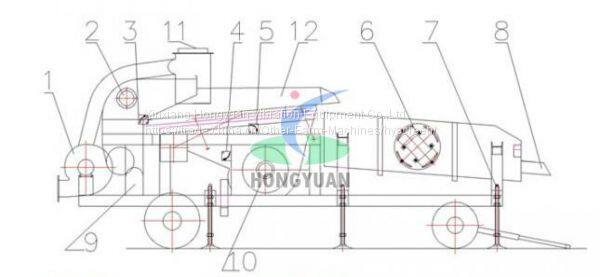

1. Dust removing blower                                         2.Observation hole

3.Plate                                                                    4. Adjust the air pressure

5. Adjust the propotion of screen volume               6.Vibrating Motor

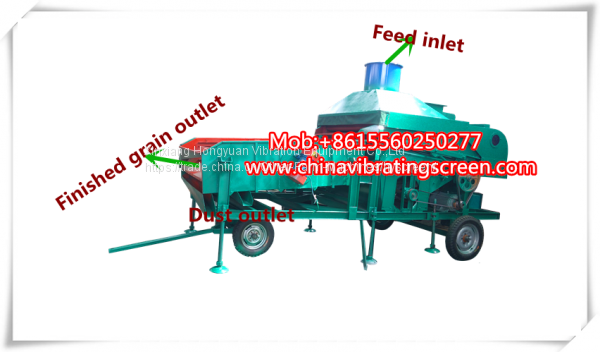

7. Adjust the height                                                 8. Finished grain outlet

9. Coarse cereals outlet                                         10. Main air blower

11.Feed inlet                                                          12. Separation platform

Packaging Details:

In standard fumigation or wooden case or as your request

Delivery Detail:

7-15 working days after receiving your deposit

Note:

The HYL-25-Ⅲ grain seed screen cleaning machine is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc
