Specifications
enamel water tank 501.Easily assembled by bolt&nut;
2.Anti-corrosion;
3. Cabinet light and beautiful;
4.Long service

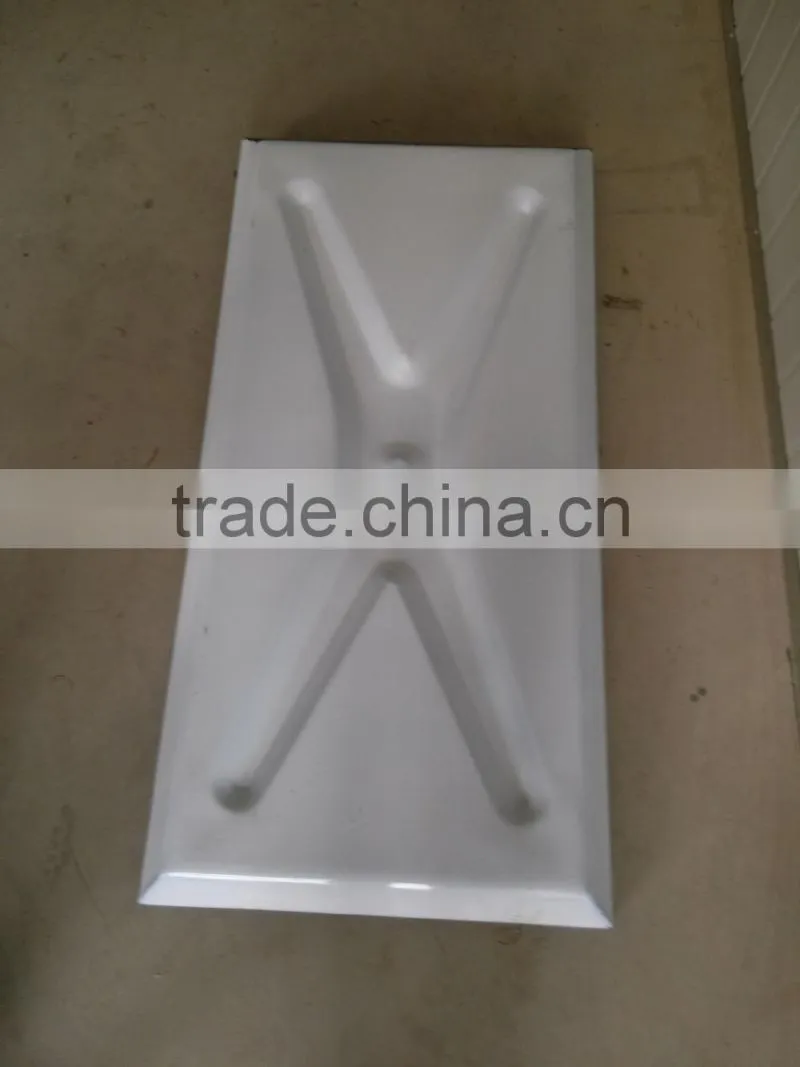

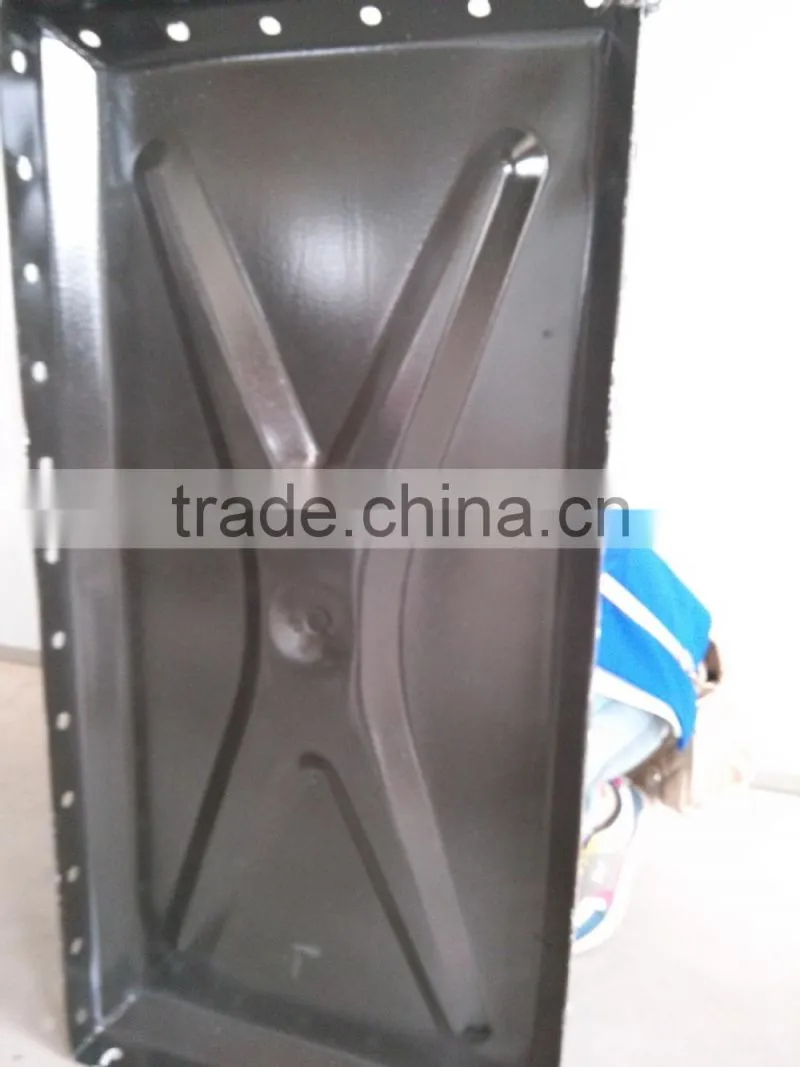

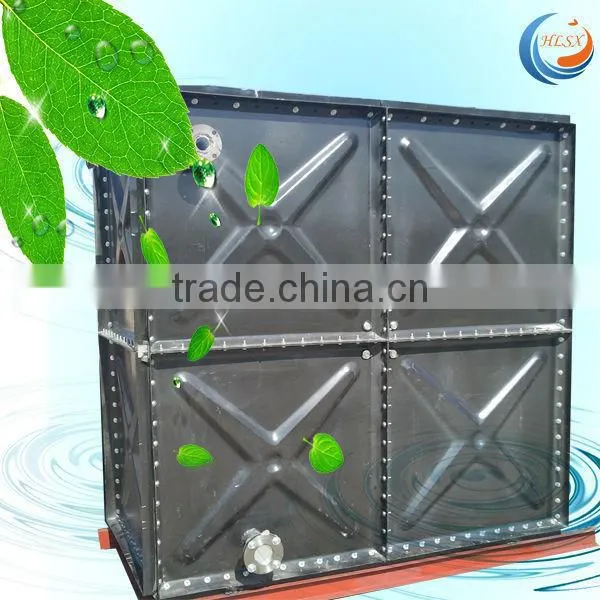

Huili enamel water tank, FRP water tank
Brief Introduction
Huili enamelled steel water tank combination adopt advanced tecniques and pick up high quality material to ensure the cleaning of water quality.
Huili enamelled steel water tank is anti-corrosion, anti-aging, flexibility, no distorsion, no
infiltrationand leakage. Tank is easy to clean and conveniently to install and assemble. It can
storage not only hot water, but also cold water, and has a better shockproof and shock resistant ability.
It has a wide range of application. Not only applies to new construction, but also suitable for the replacement for old buildings. Enamelled steel water tank has good effect in practice for a long
time. Our company have mass production and the product will be used more universally,
standardly and in series. Product quality have reliable guarantee.
Instuctions
1. Please provide water tank’s size, position and diameter of pipe.
2.When the provided pipe position is on the slab joint,we will adjust it and no change in pipe’s diameter.
3.Temperature of the storage water between 4℃-80℃ is approprate. If the requirment temperature is higher than this, please inform us when you order, and we will deal with it.
4.Body load of water tank is base on the approved by structure design personnel.
Assembling and check
1.There needs to Keep a maintenance channel which width no less than 700mm betwteen the vertical wall and water tank, and between horizontal wall and water tank body no less than 500mm.
2.When construction, finish concrete foundation first, make sure all slab joints and the surrounding of the water tank is located on the support.
3.When finished assembled, turn off the The outlet pipe and a drain pipe first, then turn on the inlet pipe, as water as examine to fill with water, no leakage in 24 hours is qualified.
Specification parameter
Nominal volume (m³) |
outline dimension(m) |
Thickness of each panel(mm) |
|||||||
long |
width |
high |
cover panel |
bottom panel |
From the bottom up |
||||
1st layer side panel |
2nd layer side panel |
3rd layer side panel |
4th layer side panel |
||||||
1 |
1 |
1 |
1 |
2 |
2.5 |
2.5 |
/ |
/ |
/ |
6 |
2 |
2 |
1.5 |
3 |
2.5 |
2.5 |
/ |
/ |
|
12 |
3 |
2 |
2 |
3 |
3 |
2.5 |
/ |
/ |
|
15 |
3 |
2 |
2.5 |
3 |
3 |
2.5 |
2.5 |
/ |
|
45 |
6 |
2.5 |
3 |
4 |
4 |
3 |
2.5 |
/ |
|
126 |
9 |
4 |
3.5 |
4 |
4 |
3 |
2.5 |
2.5 |
|
200 |
10 |
5 |
4 |
5 |
4 |
4 |
3 |
2.5 |
|
Application
1. Construction & fire-fighting water supply
2. Water storage pool
3. Water supply for living and production of industry, mining and enterprise
4. Water circulation system, chilling water supply system
Accessaries
Packaging and delivery
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts will be replaced for free if the problems are caused by quality fault.
2.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard water tank and customized water tank according to client s specific requirements,
it would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?

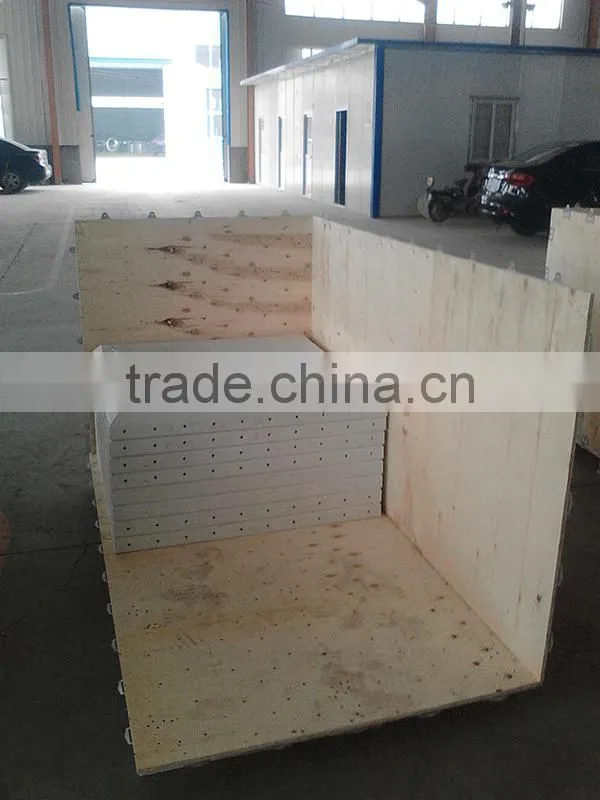

Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading
Company introduction
Dezhou Huili tank Co. Ltd., is a professional production enterprise specializing in the
production and design of the water tank.
Company's products include: fiber glass reinforced plastic water tank, stainless steel water
tank, enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank
and underground water tank.
Company tenets: quality first, customer first and best credibility! The same price with best
quality, the same quality with highest reputation!
The company has a professional after-sale service institution, each service branch are
provided with a fixed installation and after sale service personnel to ensure the user to get a
response from us in the first time.
