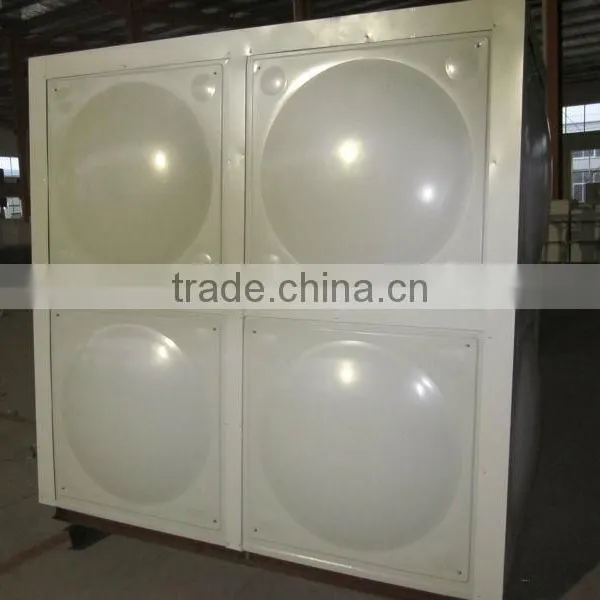

Cheaper BDF water tank factory with latest technology
Product Description
Product Name |
BDF water tank |
Process technique |
Stamping forming process |
Raw material |
SUS304 inside hot dip galvanizing outside |
Accessories |
SUS304;hot dip galvanizing steel |
Foundation |
Concrete base |
Bottom base |
Channel steel |
Panel size |
1*1m,1*0.5m,0.5*0.5m |
Panel thickness |
2.8mm,3.3mm |
Working time |
More than 20 years |
Volume |
0.125~5000CBM |
What‘s the BDF water tank?
Fabricated BDF water tank is assembled together by BDF single plate,seal mateials,metal compents and piping system.
Structure drawing
Application
1. Construction & fire-fighting water supply
2. Water storage pool
3.Water supply for living and production of industry, mining and enterprise
4. Water circulation system, chilling water and hot water supply system
Internal structure
Accessaries
Assembling and check
1.There needs to Keep a maintenance channel which width no less than 700mm betwteen the
vertical wall and water tank, and between horizontal wall and water tank body no less than
500mm.
2.When construction, finish concrete foundation first, make sure all slab joints and the surrounding of the water tank is located on the support.
3.When finished assembled, turn off the The outlet pipe and adrain pipe first, then turn on the inlet pipe, as water as examine to fill with water, no leakage in 24 hours is qualified.
Tank insulation
In cold region, outdoor water tanks have an inevitable insulated problem, then need to add insulation to the tank.
There are many insulation materials commonly used polyurethane, rubber and plastic, etc.The polyurethane heat preservation effect is the best, also is my company's innovative product, has been in different has been widely used in different occasions, the market reaction is good.
The tank polyurethane heat preservation make full use of the polyurethane itself good effect of heat preservation and bonding properties, high pressure foaming , and various forms of water tank is perfect joint, outsourcing angles, beautiful and durable.
Besides, there are more economical and general rubber insulation for you to choose, it is a suitable choice in not very high requirement heat preservation.
Innovative in heat preservation of exterior used the glue plate, color steel plate, stainless steel plate, aluminum plate, galvanized steel, compared with the traditional aluminum foil, use
this protective material insulation board for longer service life, better, more beautiful
appearance.
Packing & Delivery
