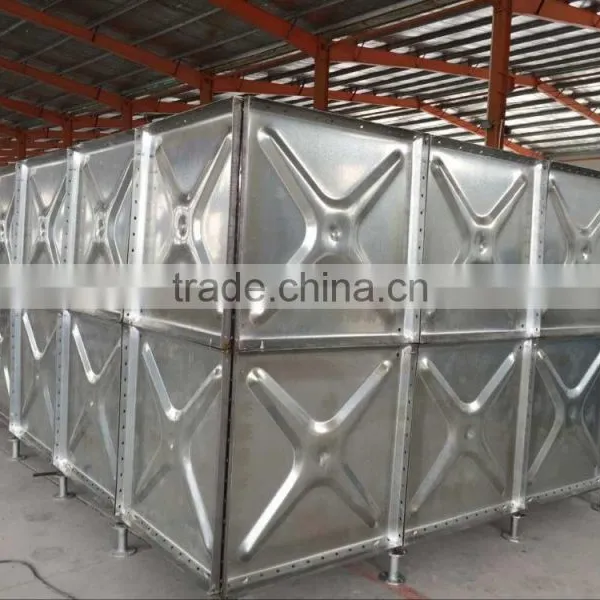

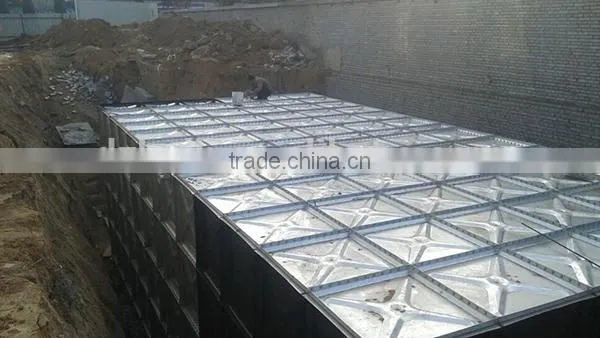

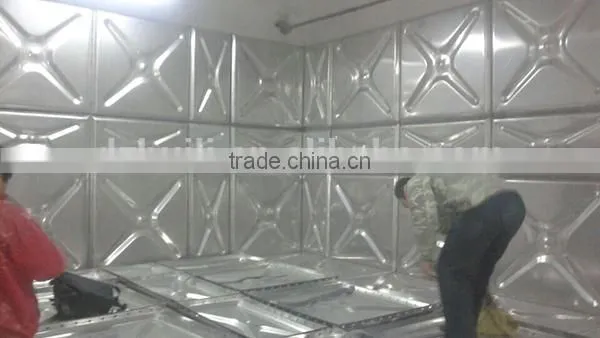

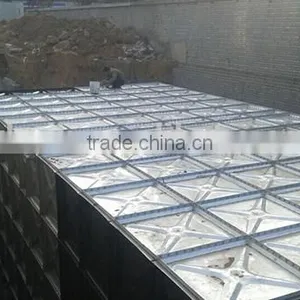

Dezhou Huili product! Modular BDF water storage container
water storage container
Keywords to search Huili water tank:
SMC/FRP/GRP water tank
Stainless steel water tank
Enameled water tank
Hot dip galvanised water tank
gush-paint water tank
BDF/CSB Underground water tank
All of water tank can add thermal insulation layer
Brief Introduction
The BDF is the latest product of our company. The board is the center of the technical innovation, which inside use the SS304 and outside use the hot dip galvanized steel.This is perfect
combination of the advantage of the stainless steel water tank and hot dip galvanized steel
water tank.
Product Name |
BDF water tank |
Process technique |
Stamping forming process |
Raw material |
SUS304 inside hot dip galvanizing outside |
Accessories |
SUS304;hot dip galvanizing steel |
Assembling technique |
Ramming craft |
Foundation |
Concrete base |
Bottom base |
Channel steel |
Panel size |
1*1m,1*0.5m,0.5*0.5m |
Panel thickness |
2.8mm,3.3mm |
Working time |
More than 20 years |
Volume |
0.125~5000CBM |
Weight |
According to the dimension |
Color |
Silver |
Application
1.Industrial and civil buildings and water storage of living cold water, hot water, fire water, the system expansion condensation water tank.
2.Water treatment industry among the original water tank,clean water tank, the sewage treatment tank of environmental protection equipment .
3.Food and beverage, medicine, chemical industry reservoir, supplement, heat preservation water tank on boiler industry.
4.Solar energy heat pump, air and other ancillary heat with heat preservation water tank.
Advantages
1. Possessing the function of the stainless steel water tank .
2.The panel thickness is only two types:2.8# and 3.4# which furthest guarantee the working
time and quality of the tank body.
3.The cover can be the hot dip steel board which can furthest limit your cost.
4.Imported material,never rust.
5.Choose import food grade stainless steel plate, corrosion resistance is strong, and can effectively reflect the sun's rays, not long moss, keep the water clean.
6.Light weight. Weight is only about a third of ordinary steel water tank.
7.Low price with stamping process type forming process,the characteristicplate type,with the minimum consumption of materials to achieve high strength requirements. the price is close to ordinary steel tank.
8.Unique structural design. It will never leak, welding, high intensity, and It is different withbolt structure , eliminating the sealing strip, won't appear the phenomenon of leakage and untight seal .
Accessaries
Water tank insulation
Insulation material: polyurethane
Thickness: 30mm, 50mm, 80mm, 100mm
Outer coating material: color steel, galvanized steel, SUS201, SUS304
Certification
Package and delivery
