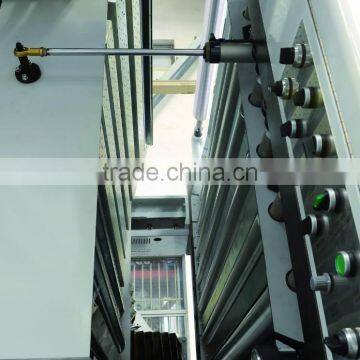

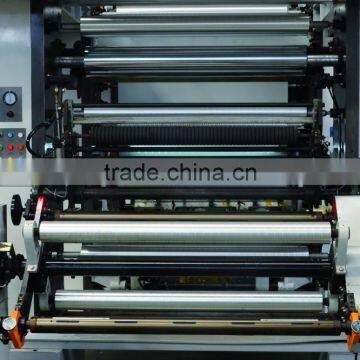

China best super speed high grade 8 color plastic bag rotogravure printing machine for sale
This is computer control high speed 8 color rotogravure printing machine for flexible packaging converting, such as roll laminated film, plastic bag, paper etc. Main electric parts all Japan or Europe imported so can guarantee the printing equipment with high precision and reliable in function.We can special made all sizes, welcome to contact Kingsun for more details.
Main technical parameters:
Printing sequence: From left to right
Printing number: 8 colors
Max. material width: 850mm(1050,1250mm)
Max. printing width: 850mm
Max. mechanical speed: 270m/min
Max. printing speed: 250m/min (Cylinder ≥φ170mm)
Unwind dia: Φ600mm
Rewind dia: Φ600mm
Paper core: Φ76mm*Φ92mm
Min. change material effective dia: Φ200mm
Unwind and rewind structure: Double arms double directions double shafts turret installed outside type
Machine body wall thickness: 75mm(Heavy duty)
Machine body wall width: 500mm
Color group distance 1600mm
Plate cylinder width: 460mm-950mm
Plate cylinder diameter: Φ120-Φ300
Overprinting accuracy: ±0.1mm (Longitudinal and transverse)
Pre-register accuracy: ±8mm
Tension control range: ±0.3kg/ full web width
Max. impression pressure: 500kg/full web width
Splicing method: automatic non-wastage splicing without stopping machine
Inking form: Circulation inking system
Ink transmission: Ink transfer roller
Doctor blade transverse movement: ±5mm
Drying method: electricity heating
Temperature control accuracy: ±1℃
Total Power: 332KW
Electricity Power: 380v, ±10%, 50Hz three phase
Air source Minimum pressure: ≥0.7Mpa
Cooling water consumption: <7.68t/hour (full load print)
Roller driven motor: B&R servo motor 5.677KW
Size of overall machine: 18600L*4300W*3210H(mm)
Machine weight: Approx 38T
Machine color: Milky white
Printing material:
BOPP /OPP /CPP/BOPA 15-60µm
PET 12-60 µm
NY 15-25µm
Cellophane 20-30µm
PE 30-60µm
Paper sheet: 30-80g/m2
Compound film: 15-60µm
Other same properties film, paper, Al foil material.
