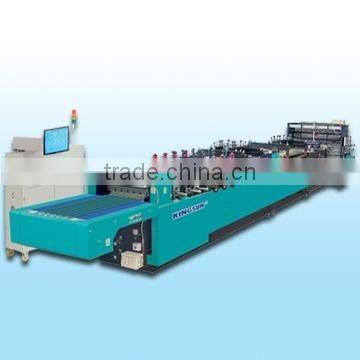

Help CenterKZD-400ZF High Speed Four Side Seal Center Seal Plastic Bag Making Machine
Related Products
-
China High Speed High Quality Best Plastic Bag Center Sealing MachineUS$ 25,000 - 90,000MOQ: 1 Set -
China Best High Speed High Qualilty Three Side Sealing Bag Making MachineUS$ 40,000 - 90,000MOQ: 1 Set
-
RZD Series Three Side Sealing Center Sealing Bag Making Machine(bag Maker)NegotiableMOQ: 1 Set
-
Computer Controlled Three-Side Sealing Center Sealing Plastic Bag Making MachineUS$ 25,000 - 35,000MOQ: 1 Set
-
China Best Quality High Quality Bubble Gum Paper Wax Coating MachineUS$ 10,000 - 25,000MOQ: 1 Set
KZD-400ZF Center seal,side sealing,4 side sealing high speed automatic platic bag making machine
Material: various laminated films.
Roll folding: max width: 850mm, max diameter: 600mm.
Bagging speed: 180 parts/min (mechanical design speed), approx. <40m/min.
Bagging width: max width 400mm.
Bagging length: 30-400mm, When the bag length is above 400mm,it will change into multiple conveyances.
Notes: The actual operation speed will reduce for the reason of difference of the bag type and material.
Unwind mode
Fabrication: put the warp beam horizontally.
Control: tension is automatically controlled by floating roller, magnetic powder brake displacement sensor.
Driving mode
Feeding traction: Driven by altemating servo motor.
Upper & lower sealing press: Altemating electrical machinery or altemating servo motor.
Functions
Heat seal: speed of heat seal, duration of heat seal, proportion of heat seal acce- leration etc.(main servomotor)
Temperature: 0-300,contact-free automatic control, CRT displaying.
Automatic count: presetting is available.
Punching device: time can be preset, continuous or interval punching is available.
Working mode: printing, non-printing.
There is KZD-400ZF,KZD-500ZF and KZD-600ZF model plastic bag making machinery.
