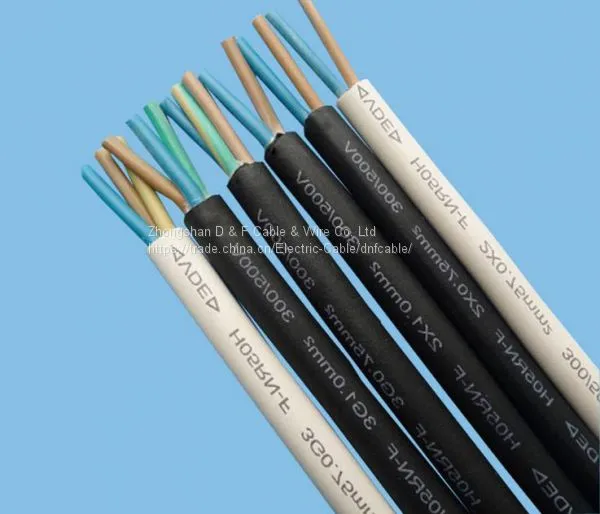

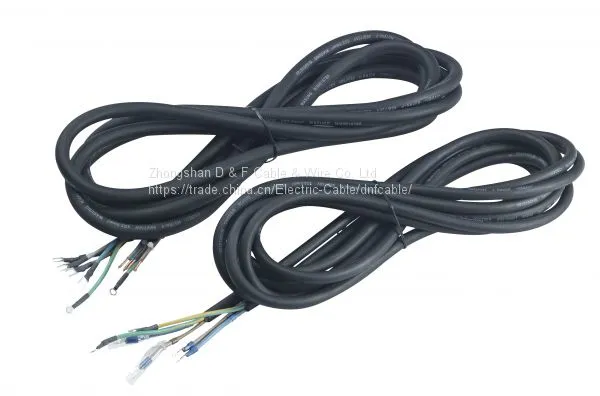

SAA Approval Rubber Cable 60245IEC53, 60245IEC57, 60245IEC66 Power Cord
US$ 0.1 - 10
MOQ: 3000 Meters
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Low Voltage
Application:
Industrial
Payment & Shipping
Payment Methods:
Port of Shipment:
zhongshan
Delivery Detail:
15 days
Related Products
-
VDE Approval Flexible Rubber Cable H05rr-F, H05rn-F, H07rn-FUS$ 0.1 - 10MOQ: 3000 Meters -
Cold Shrink Silicone Rubber Cable Joints With 10kV 15kV 35kV RatingsUS$ 50MOQ: 1 Piece
-
High Quality PVC PE Rubber Electric Flat or Round Submersible Pump CableNegotiableMOQ: 10 Kilometers
-
3/4 Core 2.5mm Oil/Water Resistant Flat Rubber Cable for Deep Well PumpsNegotiableMOQ: 500 Meters
-
Large Waste Recycling Crusher Car Shell Shredder Rubber Cable Aluminium Can Scrap Metal Shredders Machine EPCUS$ 4500 - 7900MOQ: 1 Set
Place of Origin
China
Type
Low Voltage
Application
Industrial
Insulation Material
Rubber
Jacket
Rubber
Conductor Material
Copper
Technical Data & Application:
| Type | Structure | Rated Voltage | Rated Temperature |
Outdoor Usage | Flame Resistance | Application |
| H05RR-F | Stranded bare copper conductor, EPR Insulation, CPE Jacket | 300/500V | 60ºC | / | / | Suitable for lightweight and conditions of light mechanical stress. Used in a variety of handheld household items such as office and kitchen appliances. Dry and damp rooms and only temporary use outdoors. Not for industrial/commercial or agricultural usage. |
| H05RN-F | Stranded bare copper conductor, EPR Insulation, CPE Jacket | 300/500V | 60ºC | Yes | Pass the vertical burning test. | Suitable for medium duty, and conditions of medium or low mechanical stress. Suitable for use outdoors. Use for power installation, household appliances, power tools, engineering lighting, and portable electrical equipment etc. |
| H05BN4-F | Stranded bare copper conductor, EPR Insulation, CPE Jacket | 300/500V | 90ºC | Yes | Pass the vertical burning test. | Suitable for lightweight and conditions of light mechanical stress. Used in a variety of handheld household items such as office and kitchen appliances. Can be used both in indoor and outdoor. |
| H07RN-F | Stranded bare copper conductor, EPR Insulation, CPE Jacket | 450/750V | 60ºC | Yes | Pass the vertical burning test. | Suitable for heavy duty and conditions of medium to high stresses. For usage in tools and agricultural devices both in and outdoors. |
| H03RN-F | Stranded bare copper conductor, EPDM Insulation, CPE Jacket | 300/300V | 60ºC | Yes | Pass the vertical burning test. | Used as power core for LED lights. |
H05RR-F
Colour of Jacket: Black,White,Gray
Colour of Cores:
2 Cores: Blue and Brown
Cores: Yellow/Green, Blue and Brown
4Cores: Yellow/Green, Brown, Black and Gray
5 Cores: Yellow/Green, Blue, Brown, Black and Gray
Dimensions and Specifications:
| Cross Section (mm2) | Diameter (mm) | Conductor D.C. resistance at 20ºC |
| 2×0.75 | 6.3±0.20 | 26.0 |
| 2×1.0 | 6.7±0.20 | 19.5 |
| 2×1.5 | 8.3±0.30 | 13.3 |
| 2×2.5 | 10.0±0.30 | 7.98 |
| 2×4.0 | 11.7±0.40 | 4.95 |
| 2×6.0 | 13.0±0.40 | 3.30 |
| 3×0.75 | 6.8±0.20 | 26.0 |
| 3×1.0 | 7.2±0.20 | 19.5 |
| 3×1.5 | 8.9±0.30 | 13.3 |
| 3×2.5 | 10.5±0.40 | 7.98 |
| 3×4.0 | 12.4±0.40 | 4.95 |
| 3×6.0 | 13.8±0.50 | 3.30 |
| 4×0.75 | 7.5±0.30 | 26.0 |
| 4×1.0 | 7.8±0.30 | 19.5 |
| 4×1.5 | 9.9±0.30 | 13.3 |
| 4×2.5 | 11.8±0.40 | 7.98 |
| 4×4.0 | 13.8±0.40 | 4.95 |
| 4×6.0 | 15.4±0.50 | 3.30 |
| 5×0.75 | 8.4±0.30 | 26.0 |
| 5×1.0 | 8.8±0.30 | 19.5 |
| 5×1.5 | 10.8±0.40 | 13.3 |
| 5×2.5 | 13.2±0.50 | 7.98 |
| 5×4.0 | 15.3±0.50 | 4.95 |
| 5×6.0 | 17.3±0.50 | 3.30 |
H05RN-F
Colour of Jacket: Black,White,Gray
Colour of Cores:
2 Cores: Blue and Brown
3 Cores: Yellow/Green, Blue and Brown
4Cores: Yellow/Green, Brown, Black and Gray
Dimensions and Specifications:
| Cross Section (mm2) | Diameter (mm) | Conductor D.C. resistance at 20ºC |
| 2×0.75 | 6.3±0.20 | 26.0 |
| 2×1.0 | 6.7±0.20 | 19.5 |
| 3×0.75 | 6.8±0.20 | 26.0 |
| 3×1.0 | 7.2±0.20 | 19.5 |
| 4×0.75 | 7.5±0.30 | 26.0 |
| 4×1.0 | 7.8±0.30 | 19.5 |
H05BN4-F
Colour of Jacket: Black,White,Gray
Colour of Core:
2 Cores: Blue and Brown
3 Cores: Yellow/Green, Blue and Brown
Dimensions and Specifications:
| Cross Section (mm2) | Diameter (mm) | Conductor D.C. resistance at 20ºC |
| 2×0.75 | 6.3±0.20 | 26.0 |
| 2×1.0 | 6.7±0.20 | 19.5 |
| 3×0.75 | 6.8±0.20 | 26.0 |
| 3×1.0 | 7.2±0.20 | 19.5 |
H07RN-F
Colour of Jacket: Black, White, Gray
Colour of Cores:
2 Cores: Blue and Brown
3 Cores: Yellow/Green, Blue and Brown
4Cores: Yellow/Green, Brown, Black and Gray
5 Cores: Yellow/Green, Blue, Brown, Black and Gray
Dimensions and Specifications:
| Cross Section (mm2) | Diameter (mm) | Conductor D.C. resistance at 20ºC |
| 1×1.5 | 6.2±0.20 | 13.3 |
| 1×2.5 | 6.6±0.20 | 7.98 |
| 1×4.0 | 7.9±0.30 | 4.95 |
| 1×6.0 | 8.7±0.30 | 3.30 |
| 2×1.0 | 8.3±0.30 | 19.5 |
| 2×1.5 | 9.3±0.30 | 13.3 |
| 2×2.5 | 11.2±0.40 | 7.98 |
| 2×4.0 | 12.8±0.40 | 4.95 |
| 2×6.0 | 14.4±0.40 | 3.30 |
| 3×1.0 | 9.0±0.30 | 19.5 |
| 3×1.5 | 10.1±0.40 | 13.3 |
| 3×2.5 | 12.1±0.40 | 7.98 |
| 3×4.0 | 13.9±0.40 | 4.95 |
| 3×6.0 | 15.4±0.5 | 3.30 |
| 4×1.0 | 10.0±0.40 | 19.5 |
| 4×1.5 | 11.1±0.40 | 13.3 |
| 4×2.5 | 13.3±0.40 | 7.98 |
| 4×4.0 | 15.2±0.50 | 4.95 |
| 4×6.0 | 17.2±0.50 | 3.30 |
| 5×1.0 | 11.0±0.40 | 19.5 |
| 5×1.5 | 12.2±0.40 | 13.3 |
| 5×2.5 | 14.6±0.50 | 7.98 |
| 5×4.0 | 16.9±0.50 | 4.95 |
| 5×6.0 | 19.1±0.60 | 3.30 |
H03RN-F
Colour of Jacket: Black,White,Gray
Colour of Insulation: Brown
Dimensions and Specifications:
| Cross Section (mm2) | Diameter (mm) | Conductor D.C. resistance at 20ºC |
| 1×0.5 | 3.4±0.15 | 39.0 |
| 1×0.75 | 3.6±0.15 | 26.0 |
