Home > Products > rubber cable > VDE Approval Flexible Rubber Cable H05rr-F, H05rn-F, H07rn-F

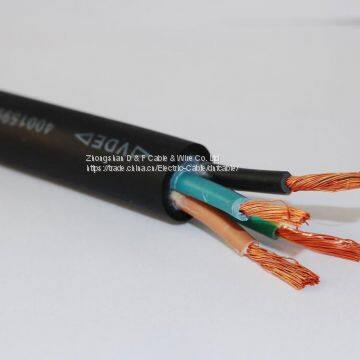

VDE Approval Flexible Rubber Cable H05rr-F, H05rn-F, H07rn-F
- 1000000 Meter / Meters per Month
- zhongshan
- T/T L/C PayPal Other
- 15 days
Product Details
| Place of Origin | China | Type | Low Voltage | |
| Application | Industrial | Insulation Material | Rubber | |
| Jacket | Rubber | Conductor Material | Copper |
Product Description
Technical Data & Application:
| Type | Structure | Rated Voltage | Rated Temperature | Outdoor Usage | Flame Resistance | Application |
| H05RR-F | Stranded bare copper conductor, EPR Insulation, CPE Jacket | 300/500V | 60ºC | / | / | Suitable for lightweight and conditions of light mechanical stress. Used in a variety of handheld household items such as office and kitchen appliances. Dry and damp rooms and only temporary use outdoors. Not for industrial/commercial or agricultural usage. |
| H05RN-F | Stranded bare copper conductor, EPR Insulation, CPE Jacket | 300/500V | 60ºC | Yes | Pass the vertical burning test. | Suitable for medium duty, and conditions of medium or low mechanical stress. Suitable for use outdoors. Use for power installation, household appliances, power tools, engineering lighting, and portable electrical equipment etc. |
| H05BN4-F | Stranded bare copper conductor, EPR Insulation, CPE Jacket | 300/500V | 90ºC | Yes | Pass the vertical burning test. | Suitable for lightweight and conditions of light mechanical stress. Used in a variety of handheld household items such as office and kitchen appliances. Can be used both in indoor and outdoor. |
| H07RN-F | Stranded bare copper conductor, EPR Insulation, CPE Jacket | 450/750V | 60ºC | Yes | Pass the vertical burning test. | Suitable for heavy duty and conditions of medium to high stresses. For usage in tools and agricultural devices both in and outdoors. |
| H03RN-F | Stranded bare copper conductor, EPDM Insulation, CPE Jacket | 300/300V | 60ºC | Yes | Pass the vertical burning test. | Used as power core for LED lights. |
H05RR-F
Colour of Jacket: Black,White,Gray
Colour of Cores:
2 Cores: Blue and Brown
Cores: Yellow/Green, Blue and Brown
4Cores: Yellow/Green, Brown, Black and Gray
5 Cores: Yellow/Green, Blue, Brown, Black and Gray
Dimensions and Specifications:
| Cross Section (mm2) | Diameter (mm) | Conductor D.C. resistance at 20ºC |
| 2×0.75 | 6.3±0.20 | 26.0 |
| 2×1.0 | 6.7±0.20 | 19.5 |
| 2×1.5 | 8.3±0.30 | 13.3 |
| 2×2.5 | 10.0±0.30 | 7.98 |
| 2×4.0 | 11.7±0.40 | 4.95 |
| 2×6.0 | 13.0±0.40 | 3.30 |
| 3×0.75 | 6.8±0.20 | 26.0 |
| 3×1.0 | 7.2±0.20 | 19.5 |
| 3×1.5 | 8.9±0.30 | 13.3 |
| 3×2.5 | 10.5±0.40 | 7.98 |
| 3×4.0 | 12.4±0.40 | 4.95 |
| 3×6.0 | 13.8±0.50 | 3.30 |
| 4×0.75 | 7.5±0.30 | 26.0 |
| 4×1.0 | 7.8±0.30 | 19.5 |
| 4×1.5 | 9.9±0.30 | 13.3 |
| 4×2.5 | 11.8±0.40 | 7.98 |
| 4×4.0 | 13.8±0.40 | 4.95 |
| 4×6.0 | 15.4±0.50 | 3.30 |
| 5×0.75 | 8.4±0.30 | 26.0 |
| 5×1.0 | 8.8±0.30 | 19.5 |
| 5×1.5 | 10.8±0.40 | 13.3 |
| 5×2.5 | 13.2±0.50 | 7.98 |
| 5×4.0 | 15.3±0.50 | 4.95 |
| 5×6.0 | 17.3±0.50 | 3.30 |
H05RN-F
Colour of Jacket: Black,White,Gray
Colour of Cores:
2 Cores: Blue and Brown
3 Cores: Yellow/Green, Blue and Brown
4Cores: Yellow/Green, Brown, Black and Gray
Dimensions and Specifications:
| Cross Section (mm2) | Diameter (mm) | Conductor D.C. resistance at 20ºC |
| 2×0.75 | 6.3±0.20 | 26.0 |
| 2×1.0 | 6.7±0.20 | 19.5 |
| 3×0.75 | 6.8±0.20 | 26.0 |
| 3×1.0 | 7.2±0.20 | 19.5 |
| 4×0.75 | 7.5±0.30 | 26.0 |
| 4×1.0 | 7.8±0.30 | 19.5 |
H05BN4-F
Colour of Jacket: Black,White,Gray
Colour of Core:
2 Cores: Blue and Brown
3 Cores: Yellow/Green, Blue and Brown
Dimensions and Specifications:
| Cross Section (mm2) | Diameter (mm) | Conductor D.C. resistance at 20ºC |
| 2×0.75 | 6.3±0.20 | 26.0 |
| 2×1.0 | 6.7±0.20 | 19.5 |
| 3×0.75 | 6.8±0.20 | 26.0 |
| 3×1.0 | 7.2±0.20 | 19.5 |
H07RN-F
Colour of Jacket: Black, White, Gray
Colour of Cores:
2 Cores: Blue and Brown
3 Cores: Yellow/Green, Blue and Brown
4Cores: Yellow/Green, Brown, Black and Gray
5 Cores: Yellow/Green, Blue, Brown, Black and Gray
Dimensions and Specifications:
| Cross Section (mm2) | Diameter (mm) | Conductor D.C. resistance at 20ºC |
| 1×1.5 | 6.2±0.20 | 13.3 |
| 1×2.5 | 6.6±0.20 | 7.98 |
| 1×4.0 | 7.9±0.30 | 4.95 |
| 1×6.0 | 8.7±0.30 | 3.30 |
| 2×1.0 | 8.3±0.30 | 19.5 |
| 2×1.5 | 9.3±0.30 | 13.3 |
| 2×2.5 | 11.2±0.40 | 7.98 |
| 2×4.0 | 12.8±0.40 | 4.95 |
| 2×6.0 | 14.4±0.40 | 3.30 |
| 3×1.0 | 9.0±0.30 | 19.5 |
| 3×1.5 | 10.1±0.40 | 13.3 |
| 3×2.5 | 12.1±0.40 | 7.98 |
| 3×4.0 | 13.9±0.40 | 4.95 |
| 3×6.0 | 15.4±0.5 | 3.30 |
| 4×1.0 | 10.0±0.40 | 19.5 |
| 4×1.5 | 11.1±0.40 | 13.3 |
| 4×2.5 | 13.3±0.40 | 7.98 |
| 4×4.0 | 15.2±0.50 | 4.95 |
| 4×6.0 | 17.2±0.50 | 3.30 |
| 5×1.0 | 11.0±0.40 | 19.5 |
| 5×1.5 | 12.2±0.40 | 13.3 |
| 5×2.5 | 14.6±0.50 | 7.98 |
| 5×4.0 | 16.9±0.50 | 4.95 |
| 5×6.0 | 19.1±0.60 | 3.30 |
H03RN-F
Colour of Jacket: Black,White,Gray
Colour of Insulation: Brown
Dimensions and Specifications:
| Cross Section (mm2) | Diameter (mm) | Conductor D.C. resistance at 20ºC |
| 1×0.5 | 3.4±0.15 | 39.0 |
| 1×0.75 | 3.6±0.15 | 26.0 |
