Specifications
peristaltic pumps1.easy to load or replacement of the tube
2. equipped with ordianry gear motor

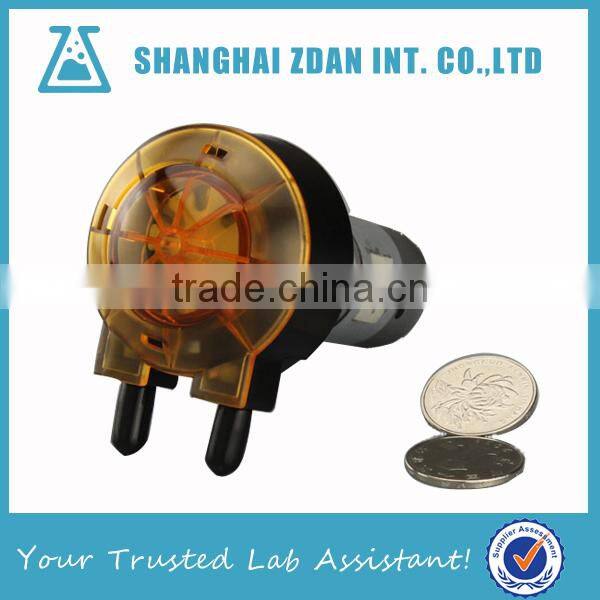

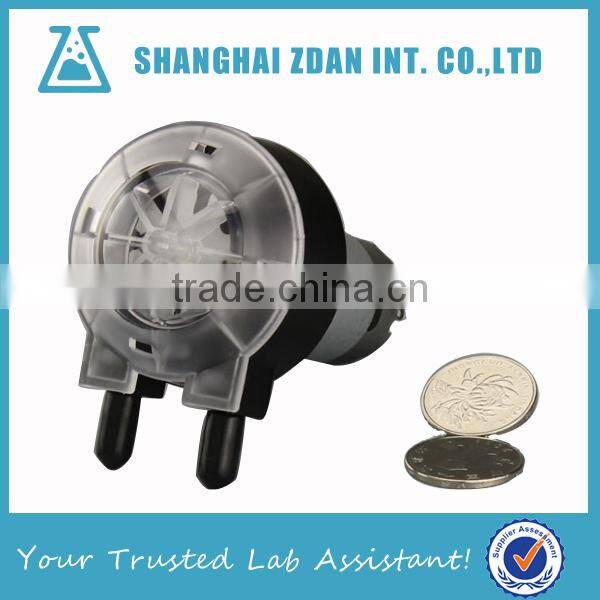

Product Name: ordinary gear motor small peristaltic pumps
Typical Application:
| Transport Detergent:Washing machines,Dishwashers | Analytical Instruments:Analytical instruments injection |
| Printing Equipment:Delivery Ink | Food Machinery:Beverage machine |
| Kitchen Equipment:Warewashing Equipment | Laundry Equipment:Laundry Equipment |
| Car Wash Equipment:Car wash Equipment | Analytical Equipment:Analytical Equipment |
Feature:
Maximum flow rate up to 86ml/min.
2 or 4 rollers in optional(Standard 2 rollers).
Hube thickness 1mm or 1.6mm in optional,max inner diameter up to 4mm.
Pump lid easy to load or replacement of the hube.
Three colors for the pump cover in optional(Sky blue,white,yellow,no request will delivery in random)
Material:
Crust:PC,PA66
Rollers:Nylon+MoS2
Select suggestion:
Gap using for high speed,for accuracy without requirements and strict cost control,please use ordinary DC gear motor Continuous long time operation,please use low speed(150r) .
Specification:
Item | 104K/ZL(DC motor) |
Speed | Ordinary standing speed 5,10,60,100,200(98,185r planets in optional) |
Flow Rate | 2-110ml/min |
Power | 3-12W |
Motor Type | 28 Series DC gear motor |
Drive | DC speed control plate in optional |
Voltage | 6V,12V,24V(6V not ordinary ) |
Weight | 0.18Kg |
104K Flow Rates(ml/min,Media:Water)
Hube/ID×Thickness | 2×1 | 3×1 | 4×1 | 14# | 16# |
10rpm | 1.9 | 4 | 7.2 | 1.3 | 4.3 |
30rpm | 5.7 | 12 | 21 | 3.9 | 13 |
62rpm | 11.5 | 25 | 43 | 8 | 26 |
100rpm | 19 | 40 | 72 | 13 | 43 |
200rpm | 38 | 80 | 140 | 26 | 86 |

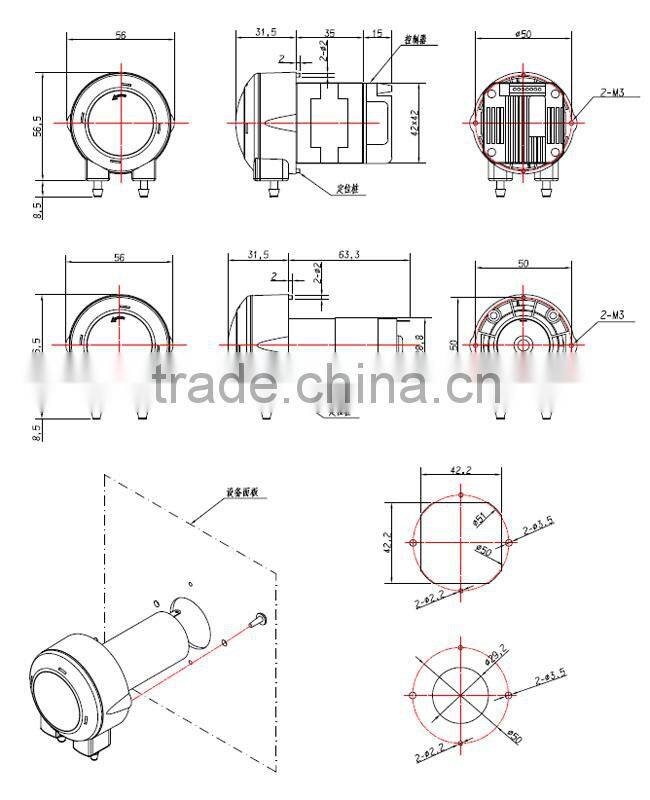

Dimension:
Why we can provide pumps with high quality:
Modern manufacture machine:
High skilled engineer and worker:
Good packaging:
