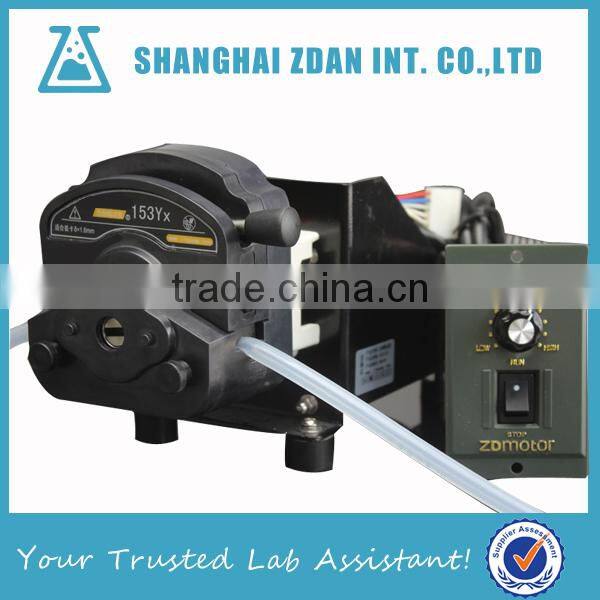

Industrial Easy Load Oem Peristaltic Pump 153y

Name: Industrial Easy Load Oem Peristaltic Pump 153y
Brand: ZDAN
SKU: 144055384
Availability: InStock

Shanghai Zdan International Co., Ltd.

US$ 100 - 150 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

ZDAN

Model Number:

153y

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name ZDAN

Model Number 153y

Theory Other, oem peristaltic pump

Structure Other, oem peristaltic pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, oem peristaltic pump

Pressure Other, oem peristaltic pump

Application Metering

Specifications

oem peristaltic pump
1.easy to load or replacement of the tube
2. maximum flow rate up to 1800 ml/min

Product Name: industrial easy load oem peristaltic pump 153y

Typical Application:

Medical appliance:perfusion and cooling pump, wash, liquor drainage, etc.
Environmental protection equipment:gas and liquid sampling

Specification:

Parameter
Items	153Y/JL,253Y/JL(AC motor) constant speed or with a speed controller to change speed	153Y/BT,253Y/BT(stepper motor) Several stepping driver
Rotate speed range	100-300(500)rpm	0.1~600rpm
Tubing model and size	We can fix tubing with thickness 1.6mm and 2.4mm,inner diameter 1.6~7.9mm
Tubing model and size	14#(1.6×1.6),16#(3.2×1.6),25#(4.8×1.6),17#(6.4×1.6),18#(7.9×1.6) 15#(4.8×2.4),24#(6.4×2.4)
Flow range	20-1700ml/min	0-2280ml/min
Motor power	16W	50W
Motor type	AC gear down motor	57 model stepper motor
Optional Voltage	220V50HZ(110V60HZ) optional	24V
Weight	2.5Kg	1.3Kg
Intend use	Suitable for OEM equipment, fixed on the equipment or meter panel.
