quick connect low flowrate peristaltic pumps
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZDAN | |
| Model Number | 104K | Theory | Other, peristaltic pumps | |
| Structure | Other, peristaltic pumps | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, peristaltic pumps | Pressure | Other, peristaltic pumps | |
| Application | Metering |
Product Description
Specifications
peristaltic pumps1.easy to load or replacement of the tube
2. maximum flow rate up to 86 ml/min
3 equipped with varies motor

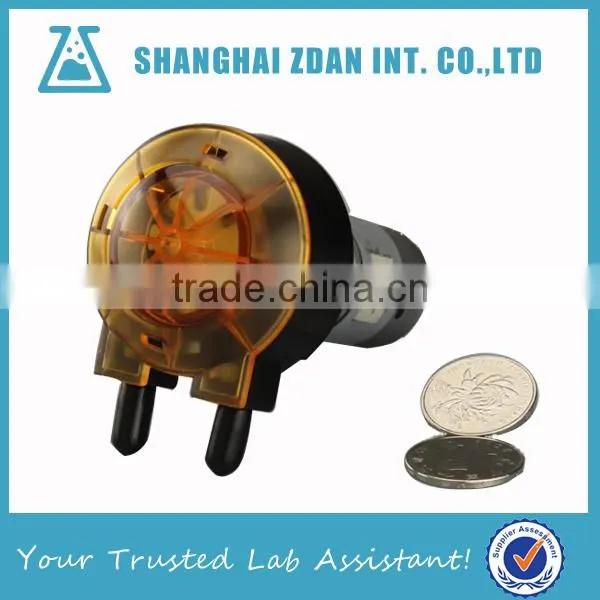

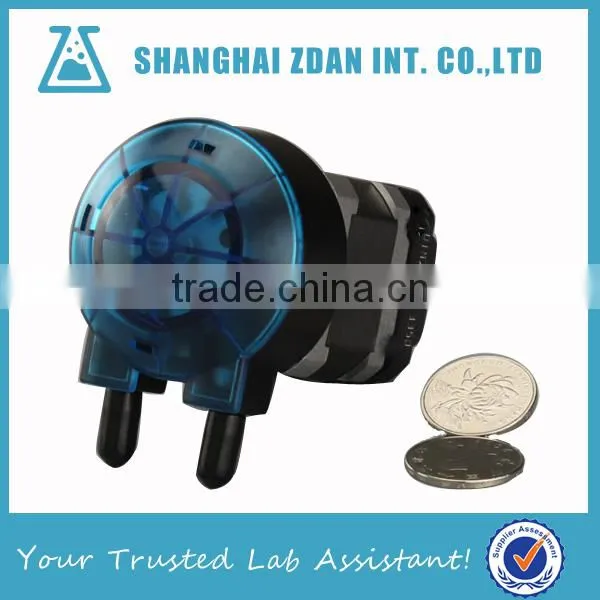

Product Name: quick connect low flowrate peristaltic pumps
Typical Application:
| Transport Detergent:Washing machines,Dishwashers | Analytical Instruments:Analytical instruments injection |
| Printing Equipment:Delivery Ink | Food Machinery:Beverage machine |
| Kitchen Equipment:Warewashing Equipment | Laundry Equipment:Laundry Equipment |
| Car Wash Equipment:Car wash Equipment | Analytical Equipment:Analytical Equipment |
Feature:
Maximum flow rate up to 86ml/min.
2 or 4 rollers in optional(Standard 2 rollers).
Hube thickness 1mm or 1.6mm in optional,max inner diameter up to 4mm.
Pump lid easy to load or replacement of the hube.
Can be equipped with DC gear motor,DC planetary reducer motor(quantitative) and stepper motor(Drive in optional,flow is variable),the stepper motor can meet the requirements for long life low noise operation of the motor.
Three colors for the pump cover in optional(Sky blue,white,yellow,no request will delivery in random)
Material:
Crust:PC,PA66
Rollers:Nylon+MoS2
Select suggestion:
Gap using for high speed,for accuracy without requirements and strict cost control,please use ordinary DC gear motor or DC planetary gear motor;for require precise control flow and longlife motor,suggested to use stepper motor.Continuous long time operation,please use low speed(150r) .
Specification:
Item | 104K/ZL(DC motor) | 104K/BT(stepper motor) |
Speed | Ordinary standing speed 5,10,60,100,200(98,185r planets in optional) | 0.1~200r |
Tubing | Can fitted with 1mm and 1.6mm thickness hube,ID 1.6~4mm | |
2×1,3×1,4×1,14#(1.6×1.6),16#(3.2×1.6) | ||
Flow Rate | 2-110ml/min | 0-140ml/min |
Roller | 2 and 4 rollers in optional(2 rollers have larger flow,4 rollers have low pulses,standard in 2 rollers) | |
Power | 3-12W | 5-30W |
Motor Type | 28 Series DC gear motor | 42 Stepper motor(must install with stepper drive before running,standard no drive) |
Drive | DC speed control plate in optional | Micro motor drive in optional(Type A and Type B) |
Voltage | 6V,12V,24V(6V not ordinary ) | 6~36V |
Weight | 0.18Kg | 0.35Kg |
104K Flow Rates(ml/min,Media:Water)
Hube/ID×Thickness | 2×1 | 3×1 | 4×1 | 14# | 16# |
10rpm | 1.9 | 4 | 7.2 | 1.3 | 4.3 |
30rpm | 5.7 | 12 | 21 | 3.9 | 13 |
62rpm | 11.5 | 25 | 43 | 8 | 26 |
100rpm | 19 | 40 | 72 | 13 | 43 |
200rpm | 38 | 80 | 140 | 26 | 86 |
Dimension:
Why we can provide pumps with high quality:
Modern manufacture machine:
High skilled engineer and worker:
Good packaging:
