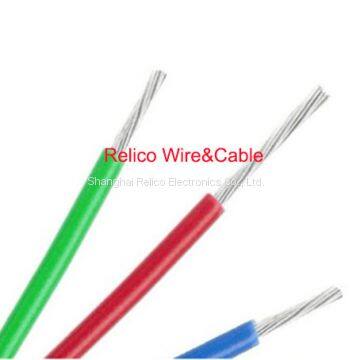

Help Center22 AWG Red PTFE Insulated Hook Up Electrical Wire 100M Silver Plating Copper Teflon Wire
Related Products
-
FF46-2: Silver Plated Copper, FEP Insulated High Temperature WireUS$ 0.1 - 0.2MOQ: 3000 Meters -
FF4-3: Nickel Plated Copper, PTFE Insulated High Temperature WireUS$ 0.1 - 0.2MOQ: 3000 Meters
-
AF-250: Silver Plating Copper, PFA Insulated High Temperature Lead WireUS$ 0.1 - 0.2MOQ: 3000 Meters
-
22 AWG Blue Color 100m Hook up Telfon Electrical Wire FEP Insulaterd Stranding Copper WireUS$ 0.1 - 0.2MOQ: 3000 Meters
-
UL1007 PVC Insulated Hook Up Electrical Wire (300V)US$ 0.1 - 0.3MOQ: 3000 Meters
Product Series:AF-250
Rated temperature:- 65° C to + 250°C
Rated voltage:600V
Test voltage:1000V
Insulation material:PTFE
Conductor material:Silver Or Nickel Plated Copper
Product Standards:GJB773A/2A-2000
Model Description
FF4-2: Silver Plated Copper, PTFE Insulated High Temperature Wire
FF4-3: Nickel Plated Copper, PTFE Insulated High Temperature Wire
Specification And Construction Data
Conductor size mm² | Conductor Construction Roots/mm | Insulation Thicknesmm | Wire Diametermm | Conductor Electric Resistance ≤ Ω/km | Weightkg/km | |
FF4-2 | FF4-3 | |||||
0.08 | 7/0.12 | 0.20±0.02 | 0.84±0.08 | 250 | 270 | 1.87 |
0.14 | 19/0.10 | 0.25±0.02 | 0.95±0.08 | 128 | 148 | 2.53 |
0.2 | 7/0.20 | 0.25±0.02 | 1.10±0.10 | 83.5 | 92 | 3.51 |
0.35 | 19/0.16 | 0.27±0.03 | 1.34±0.10 | 49.5 | 52.5 | 5.91 |
0.5 | 19/0.18 | 0.27±0.03 | 1.54±0.10 | 30.1 | 32.1 | 8.36 |
0.75 | 19/0.23 | 0.35±0.03 | 1.85±0.10 | 22.7 | 24.3 | 11.1 |
1 | 19/0.26 | 0.35±0.03 | 2.00±0.10 | 19.0 | 20 | 13.6 |
1.2 | 19/0.28 | 0.35±0.03 | 2.10±0.10 | 15.3 | 16.4 | 15.3 |
1.5 | 19/0.32 | 0.35±0.03 | 2.30±0.10 | 11.7 | 12.6 | 19.1 |
2 | 19/0.37 | 0.40±0.04 | 2.65±0.10 | 8.78 | 9.84 | 25.6 |
2.5 | 37/0.30 | 0.40±0.04 | 2.90±0.15 | 6.86 | 7.37 | 31.5 |
3 | 37/0.32 | 0.45±0.04 | 3.14±0.15 | 6.03 | 6.50 | 36.4 |
4 | 37/0.37 | 0.45±0.04 | 3.49±0.15 | 4.51 | 4.83 | 46.9 |
5 | 37/0.41 | 0.55±0.05 | 3.97±0.15 | 3.67 | 4.07 | 59.0 |
6 | 37/0.45 | 0.55±0.05 | 4.25±0.15 | 3.05 | 3.26 | 69.5 |
Order Information
1、The length of wire manufacturing is not less than 20 meter. Delivery of short segments with a length of not less than 10 meters is aviable and the percent is not over 10%. Delivery may also be made at any length in accordance with the agreement.
2、Conductor materials and constructions, such as nickel plated or nickel plated, may be made according to the agreement.
3、There are red, black, yellow, blue, green, white, brown, orange, purple, gray, transparent and translucent colors for election.
