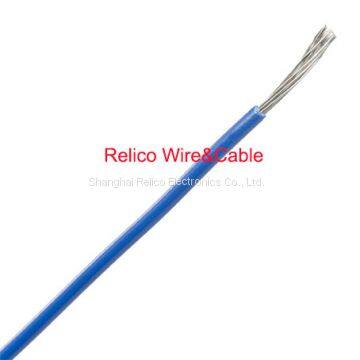

Help Center22 AWG Blue Color 100m Hook up Telfon Electrical Wire FEP Insulaterd Stranding Copper Wire
Related Products
-
22 AWG Red PTFE Insulated Hook Up Electrical Wire 100M Silver Plating Copper Teflon WireUS$ 0.1 - 0.2MOQ: 3000 Meters -
FF46-2: Silver Plated Copper, FEP Insulated High Temperature WireUS$ 0.1 - 0.2MOQ: 3000 Meters
-
FF4-3: Nickel Plated Copper, PTFE Insulated High Temperature WireUS$ 0.1 - 0.2MOQ: 3000 Meters
-
AF-250: Silver Plating Copper, PFA Insulated High Temperature Lead WireUS$ 0.1 - 0.2MOQ: 3000 Meters
-
UL1007 PVC Insulated Hook Up Electrical Wire (300V)US$ 0.1 - 0.3MOQ: 3000 Meters
Product Series:AF-200
Rated temperature:- 65° C to + 200°C
Rated voltage:600V
Test voltage:1000V
Insulation material:FEP
Conductor material:Tinned or Silver plating Cooper
Product Standards:GJB773A/2A-2000
Model Description
FF46-1: Tinned Copper, FEP Insulated High Temperature Wire
FF46-2: Silver Plated Copper, FEP Insulated High Temperature Wire
Specification And Construction Data
Conductor Size mm² | Conductor Construction Roots/mm | Insulation Thickness mm | Wire Diameter mm | Conductor Electric Resistance ≤ Ω/km | Weight kg/km | |
FF46-2 | FF46-3 | |||||
0.12 | 7/0.15 | 0.20±0.02 | 0.84±0.08 | 162.8 | 190 | 2.33 |
0.14 | 19/0.10 | 0.25±0.02 | 0.95±0.08 | 126 | 148 | 2.85 |
0.2 | 7/0.20 | 0.25±0.02 | 1.10±0.10 | 83.5 | 92 | 3.51 |
0.35 | 19/0.16 | 0.27±0.03 | 1.34±0.10 | 49.5 | 52.5 | 5.91 |
0.5 | 19/0.18 | 0.27±0.03 | 1.54±0.10 | 30.1 | 32.1 | 8.36 |
0.75 | 19/0.23 | 0.35±0.03 | 1.85±0.10 | 22.7 | 24.3 | 11.1 |
1 | 19/0.26 | 0.35±0.03 | 2.00±0.10 | 19.0 | 20 | 13.6 |
1.2 | 19/0.28 | 0.35±0.03 | 2.10±0.10 | 15.3 | 16.4 | 15.3 |
1.5 | 19/0.32 | 0.35±0.03 | 2.30±0.10 | 11.7 | 12.6 | 19.1 |
2 | 19/0.37 | 0.40±0.04 | 2.65±0.10 | 8.78 | 9.84 | 25.6 |
2.5 | 37/0.30 | 0.40±0.04 | 2.90±0.15 | 6.86 | 7.37 | 31.5 |
3 | 37/0.32 | 0.45±0.04 | 3.14±0.15 | 6.03 | 6.50 | 36.4 |
4 | 37/0.37 | 0.45±0.04 | 3.49±0.15 | 4.51 | 4.83 | 46.9 |
5 | 37/0.41 | 0.55±0.05 | 3.97±0.15 | 3.67 | 4.07 | 59.0 |
6 | 37/0.45 | 0.55±0.05 | 4.25±0.15 | 3.05 | 3.26 | 69.5 |
Order Information
1、The length of wire manufacturing is not less than 20 meter. Delivery of short segments with a length of not less than 10 meters is aviable and the percent is not over 10%. Delivery may also be made at any length in accordance with the agreement.
2、Conductor materials and constructions, such as nickel plated or nickel plated, may be made according to the agreement.

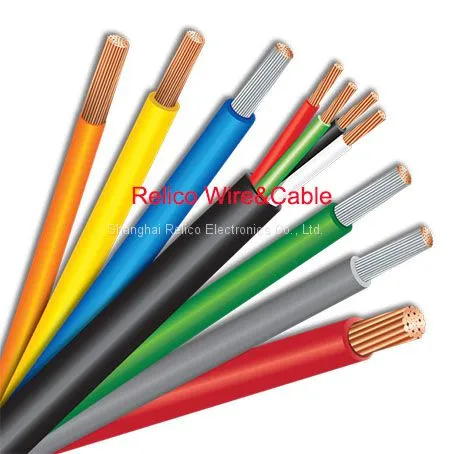

3、There are red, black, yellow, blue, green, white, brown, orange, purple, gray, transparent and translucent colors for election.
