Cube Sugar Production Line

Specifications

Cube Sugar Production Line

(1)HTL-T30 Sugar Grinding Machine

1)Working Principle:

 It’s used for candy, medical and other products, use very extensive. This machine use the high speed relative movement between activities fluted discs and fixed fluted discs, which makes the materials to be crushed by the fluted discs impacting, rubbing and shocking with each other and so on combined action. The machine has characteristics of simple but robust structure and smooth running which ensure the good effect of crushing. The crushed material will be directly discharged by the host grinding chamber. Particle sizes are obtained by changing different pore sizes of the mesh screen.

2)Features:

All through the casing wall is machined to achieve smooth surface, thus changing the phenomenon of normal rough wall machine easy sticking the powder. It can do less waste and less pollution. The machine makes food, pharmaceutical, chemical and other production more in line with national standards and GMP requirements.

3)Application:

The machine is used for candy, medical and chemical industry material crushing. It is also used for many kinds of block materials, low oil content of grain and other hard, brittle materials. It is prohibited smash inflammable and explosive objects.

4)Technical parameter:

(2)HTL– P300 Mixer

 1)Characteristics:

1. It is made up of machine frame, hopper, control system, transmission system.

2. Manual operation tipping bucket, automatic tipping bucket, veering and reversing switch controlling electromotor turning forward and back directly, and easy to operate.

3. Motor build-in system occupies little space and the machine structure is compact.

4. The transmission part uses worm gear reduction machine and chain.

5. The electric control part controls the main and vice motor turning forward, back and stop through control button, a. c. contactor. When the hopper rolling-over, the over travel-limit switch plays a part in limit protection.

6. High efficiency, low noise, and long operating life.

7. The machine mixes the powder sufficiently and uniformly.

8. It is equipped with ELCB which plays a part in protection of overload, short circuit and leakage of electricity. It is safe to be used.

2)Main technical:

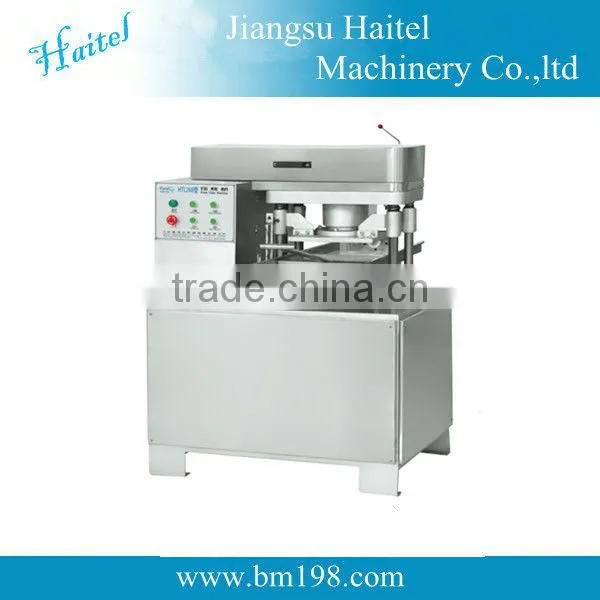

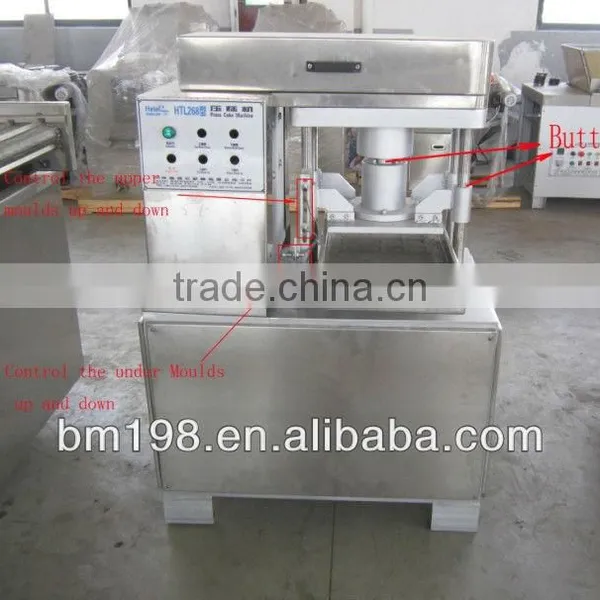

(3)HTL-268 Cube Sugar Making Machine

1)Characteristics:

The machine is of automation stamping forming combining mechanical, hydraulic and electrical engineering with features of being easy to operate, stable performance and being easy to maintain.

2)Application:

It is applicable to stamp different size and form of candy, Cube Sugar, pastry and applicable to medicine in form of rectangle, square, quincunx and column or according to customers’ requirement.

3)Main technical:

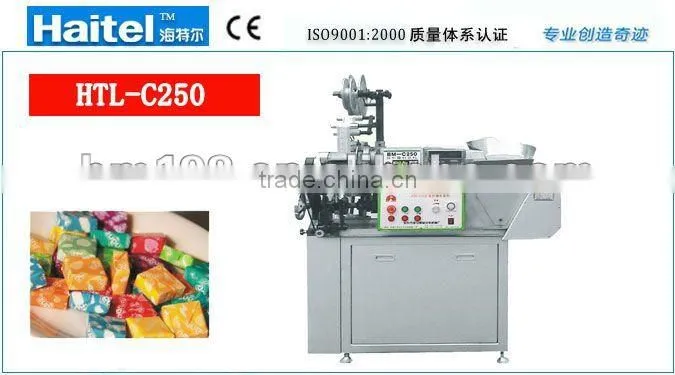

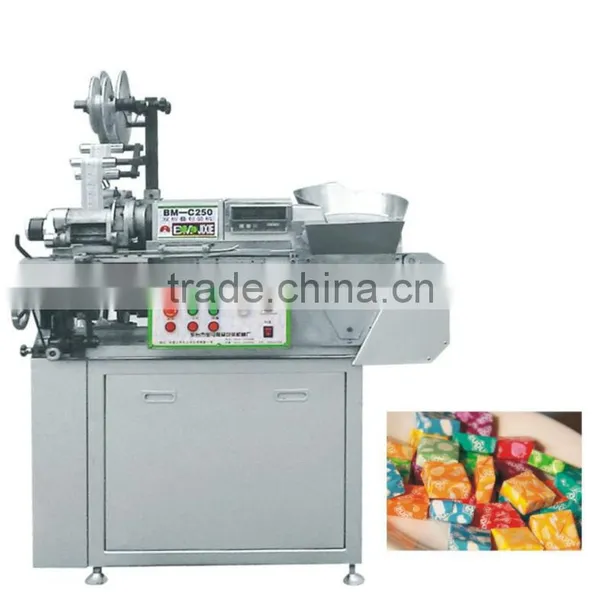

(4) HTL-C250 Cube Sugar Folding Packaging Machine

1) Characteristics:

Compact construction, stable performance, easy to operate, fixed with self-heating shaping system, hard to be torn open.

2) Application:

It is applicable to double layer packaging for rectangle and square creamy, peanut nugget candy, glycoprotein candy, hard candy, etc.

3) Main Technical:
