Specifications

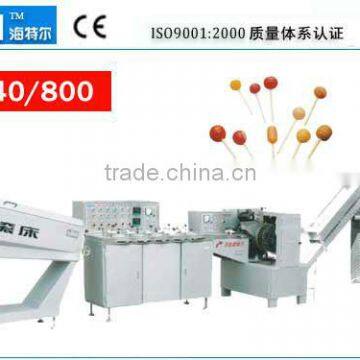

automatic lollipop production linee, the whole line of making lollipop candy,the whole peoduction line.HTL-400 Full-automatic ball lollipop production line

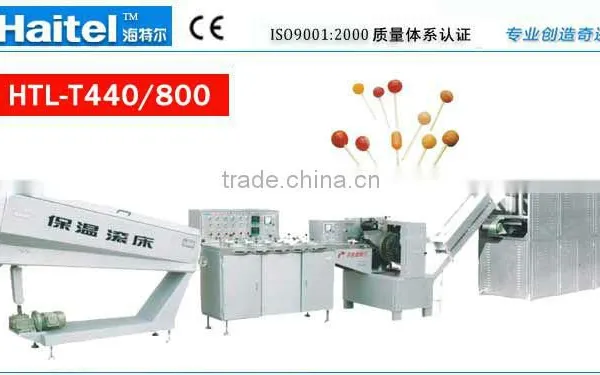

1.The whole production line introduction:
The lollipop production line is consisted by the vacuum sugar cooking machine, batch roller , rope sizer, forming machine, hoister, cooling cabinet, packing machine and so on, can produce monochrome, two-color, multicolor lollipop. Electrical integration control of the whole production line, easy to control the operation, large output, high efficiency, no waste of sugar, is the ideal equipment to produce the greatly lollipop candy.
2.The main technical parameters:
Output: 250-625kg/h
Total power: 8.2KW
Total dimension: 10115*1200*2000mm
3.Main production flow chart:
Sugar cooking →Syrup delivery →vacuum continuous cooking →sugar syrup cooling →sugar kneading →sugar rolling→ rope sizer →lollipop forming and automatic stick insert →hoister and cooling→ automatic packing
4. The equipment detailed introduction:

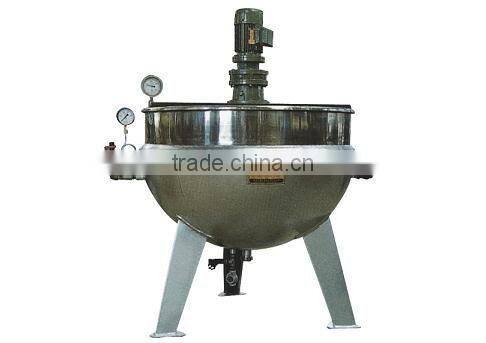

1)HTL-T300B Jacketed Steam Sugar Cooking Pot with Stirrer
| Application | Used for sugar, glucose syrup, heat melt mixing |
| Capacity | 300L. |
| Pan inner diameter | 900mm |
| Steam pressure | 0.4Mpa |
| Stirring power | 1.5kw |
| Stirring speed | 30rpm |
2) Syrup pump
Rate of flow |
200~500 L/h |
Max pressure |
20bar |
Power |
0.45kw |
Voltage |
380V |
Stroke length |
25 mm |
3)Storage tank
:
Capacity |
300L |
Power |
0.75kw |
Weight |
60kgs |

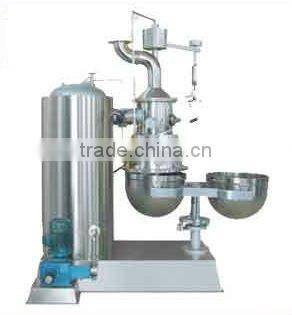

4) HTL-250 Vacuum Sugar Cooking machine
Capacity |
400kg/h |
Heating area |
2.45M2 |
Steam pressure |
0.59MPa |
Steam consumption |
110kg/h |
Temp. of the syrup before cooking |
105~115 oC |
Syrup temperature after heating |
135-145 oC |
Volumetric pump |
Jo-11-40.6kw |
Motor speed |
1370rpm/min |

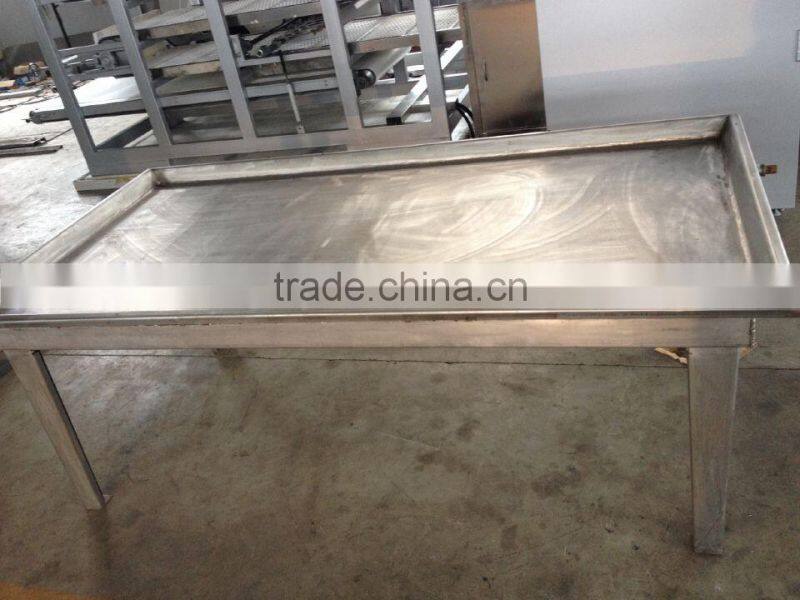

5) Water Cycle Cooling Table
Application |
Using water for cooling |
Dimension |
2000×1200×800 mm |

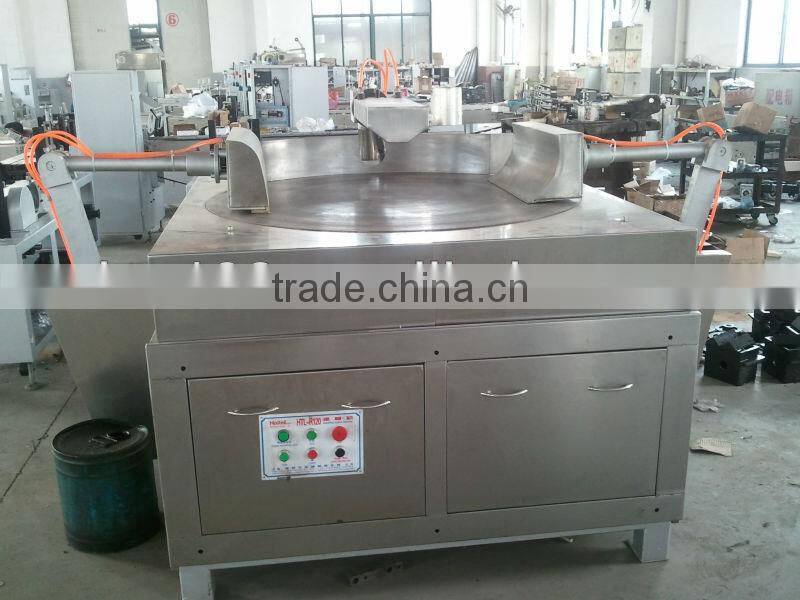

6) Kneading machine (optional)
Power |
2kw |
Output |
15-40kg/batch |
Dimension |
3600*1350*2000mm |
7) Batch roller
Dimension |
2200×700×1400 mm |
Voltage |
380 V |
Power |
3 KW |
Weight |
500 kg |
8)Rope sizer
Dimension |
1200*700*1300 mm |
Voltage |
380 V |
Power |
2kw |
Weight |
500 kg |

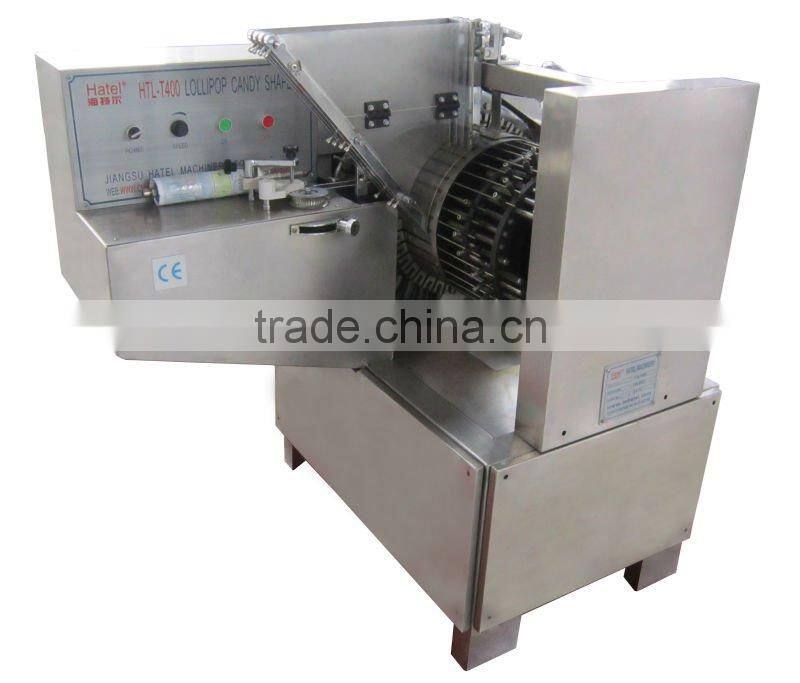

9)HTL-400 Ball Lollipop Candy Forming Machine
Dimension |
1115*900*1080 mm |
Voltage |
380 V |
Power |
2.2 KW |
Weight |
580 kg |
Output |
2-5T/8h |

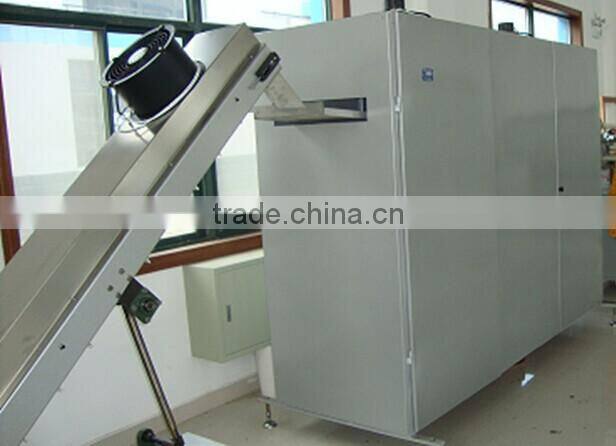

10)Hoister and cooling cabinet.
Machine |
Hoister |
Cooling cabinet |
Voltage |
380V/50Hz |
380V/50Hz |
Power |
0.37 KW |
3.19 KW |
Dimension |
1900×700×1750 mm |
3000×1200×2000 mm |
Weight |
150 kg |
400 kg |

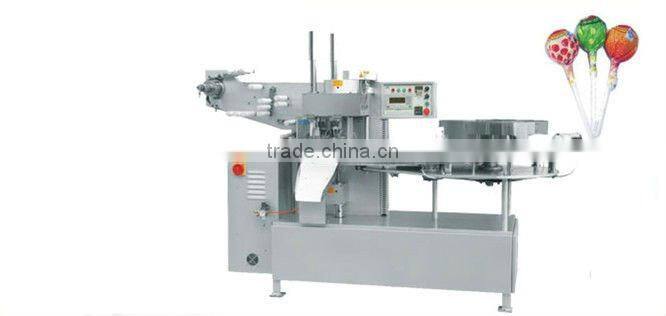

11) HTL-200 Automatic Ball Lollipop Twist Packing Machine (optional)
Characteristics
1.Color-mark adjustable tracking system, computer program and controlled precise positioning, coordination in film supplying, wrapping and strong sealing.
2.Photoelectrical tracking system, self-stop for no product feeding, no empty bags, good self adjustment ability.
3.Gradual motor to control film feeding seed with product feeding.
4.Imported frequency transformer, PLC, circumvolve coder and light-electrical switch.
5.Friendly designed, easy for operation and maintenance.
Main technical
Mode |
HTL-200 |
Lollipop candy size |
Min:φ22;Max;φ30 |
Film size |
Max size:125*125mm |
Output(by lollipop candy size φ25mm) |
2000kg/8h |
Total power |
2.2kw |
Dimension(L*W*H) |
2500*900*1500mm |
Total weight |
1200kg |
12)HTL-C800 Automatic ball lollipop pillow packing machine (optional)
Characteristics
1. Computer programmed control, large PLC touch screen, pre-setup parameters.
2. Automatic lollipop candy feeding system, high efficiency.
3. Servo motor non-stop compensation, one step bag length setting, saving in the time and rewind film.
Main technical
Mode |
HTL-C800 |
Packing speed |
150-300pcs/min |
Packing object |
Ball lollipop candy |
Packing size |
φ20-30mm |
Total power |
4.5kw |
Voltage |
380V 50Hz |
Total weight |
900kg |
Dimension(L*W*H) |
3200*1200*1500mm |
