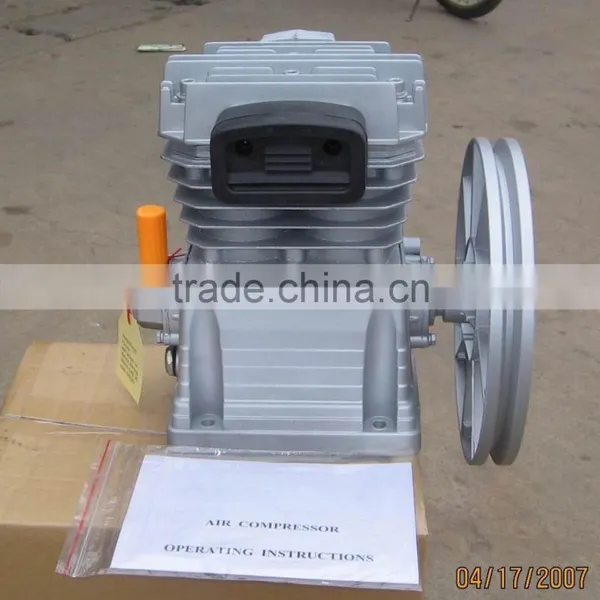

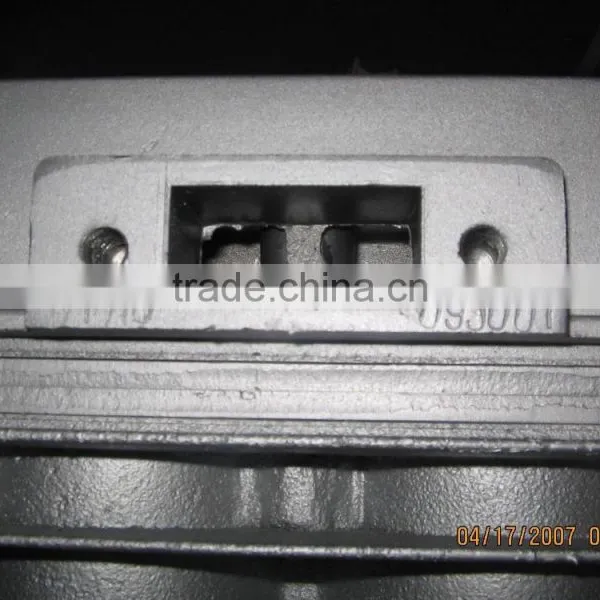

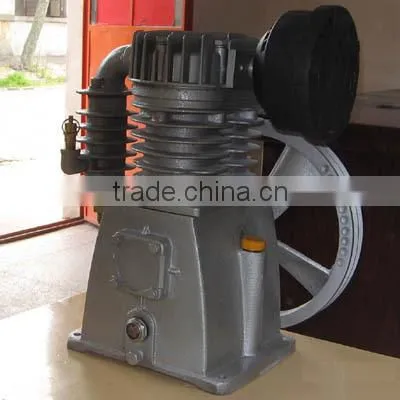

Home > Industrial Equipment & Components > Compressor > Compressor Unit > Belt Driven Air Compressor Pump BHI30
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Piston
Configuration:
Portable
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Portable Oil Free Air Compressor FW2050VNegotiableMOQ: 200 Units -
Direct Drive Oil Lubricated Air Compressor TV3050NegotiableMOQ: 200 Units
-
Small FL Type Air Compressor FN2050NegotiableMOQ: 200 Units
-
Oilless Dental Air Compressor RPW750LV30NegotiableMOQ: 200 Pieces
-
Portable Direct Driven Air Compressor BM2524A-2.0NegotiableMOQ: 300 Units
Condition
New
Type
Piston
Configuration
Portable
Power Source
Other, AC power or diesel/petro engine
Lubrication Style
Lubricated
Mute
No
Place of Origin
Jiangsu, China
Brand Name
will pro
Model Number
BHI30
Voltage
110V or 220V
Weight
9kg
Warranty
1 Year
After-sales Service Provided
No overseas service provided
Belt Drive Air Pump
visit for more information
visit /h-type-pump.html for more information
contact sales(at) for more information
| Model | BHII10 | BHII12 | BHII15 | BHII20 | BHI20 |
| Air delivery | 40 lit/min | 70 lit/min | 85 lit/min | 85 lit/min | 170 lit/min |
| Cylinder | (dia.51*38mm)* 1 | (dia.55*36mm)* 1 | (dia.65*38mm)*1 | (dia.65*46mm)*1 | (dia.55*35mm)*2 |
| Motor power | 0.75 kw/ 1.0 hp | 1.1 kw/ 1.5 hp | 1.1 kw/ 1.5 hp | 1.5 kw/ 2.0 hp | 1.5 kw/ 2.0 hp |
| Engine power | nil | 3.0 hp | 3.0 hp | 4.0 hp | 4.0 hp |
| Pump speed | 1,080 rpm | 1,080 rpm | 1,020 rpm | 980 rpm | 1,030 rpm |
| Max. pressure | 8 bar/ 115 psi | 8 bar/ 115 psi | 8 bar/ 115 psi | 8 bar/ 115 psi | 8 bar / 115 psi |
| Body material | cast Iron | cast Iron | cast Iron | cast Iron | cast aluminium |
| Pulley diameter | 150 mm | 265 mm | 150/170 mm | 265 mm | 265 mm |
| Test life | 9,000 hours | 9,000 hours | 9,000 hours | 9,000 hours | 8,000 hours |
| N.W. | 7.5 kg | 9.5 kg | 9.5 kg | 11 kg | 7.5 kg |

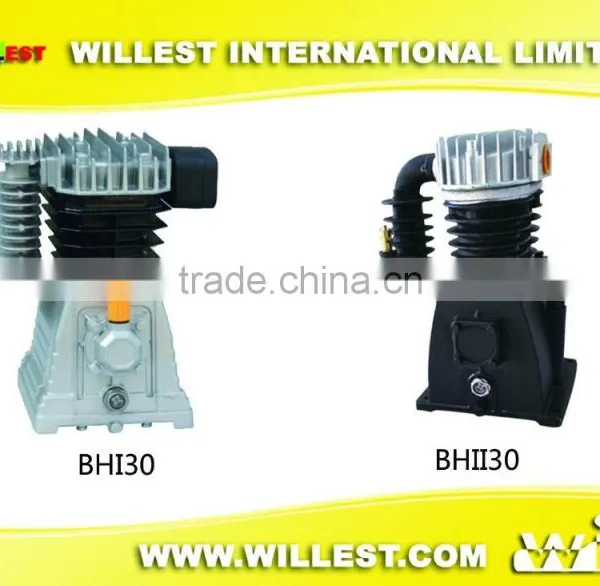

| Model | BHI30 | BHII30 | BHII30H |
| Air delivery | 200 lit/min | 237 lit/min | 233 lit/min |
| Cylinder | (dia.65*46mm)*2 | (dia.65*50mm)*2 | (dia.70*51mm)*1 |
| Motor power | 2.2 kw/ 3.0 hp | 2.2 kw/ 3.0 hp | 2.2 kw/ 3.0 hp |
| Engine power | 5.5 hp | 5.5/6.5 hp | 5.5/6.5 hp |
| Pump speed | 1,030 rpm | 1,020 rpm | 850 rpm |
| Max. pressure | 8 bar/ 115 psi | 8 bar/ 115 psi | 8 bar/ 115 psi |
| Body material | cast aluminium | cast iron | cast Iron |
| Pulley diameter | 265 mm | 320 mm | 250 mm |
| Test life | 8,000 hours | 8,000 hours | 8,000 hours |
| N.W. | 9 kg | 23.5 kg | 21 kg |
| Model | BHII40 | BHII40H | BHII55 |
| Air delivery | 285 lit/min | 270 lit/min | 422 lit/min |
| Cylinder | (dia.70*50.8mm)*2 | (dia.70*65mm)*2 | (dia.80*60mm)*2 |
| Motor power | 3.0 kw/ 4.0 hp | 3.0 kw/ 4.0 hp | 4.0 kw/ 5.5 hp |
| Engine power | 6.5/8.0 hp | 6.5/8.0 hp | 9.0 hp |
| Pump speed | 1,020 rpm | 980 rpm | 1,000 rpm |
| Max. pressure | 8 bar/ 115 psi | 8 bar/ 115 psi | 8 bar/ 115 psi |
| Body material | cast iron | cast iron | cast iron |
| Pulley diameter | 320 mm | 250 mm | 365 mm |
| Test life | 7,000 hours | 7,000 hours | 7,000 hours |
| N.W. | 30 kg | 22 kg | 43 kg |
| Model | BHII20T | BHII30T | BHII40T | BHI55T |
| Air delivery | 168 lit/min | 182 lit/min | 262 lit/min | 420 lit/min |
| Cylinder | (dia.70*40mm)* 1+(dia.38*40mm)* 1 | (dia.80*50mm)* 1+(dia.48*50mm)* 1 | (dia.90*60mm)* 1+(dia.51*60mm)* 1 | (dia.105*89mm)* 1+(dia.55*89mm)* 1 |
| Motor power | 1.5 kw/ 2.0 hp | 2.2 kw/ 3.0 hp | 3.0 kw/ 4.0 hp | 4.0 kw/ 5.5 hp |
| Engine power | 4.0/5.5 hp | 6.5 hp | 6.5/8.0 hp | 9.0 hp |
| Pump speed | 1,000 rpm | 1,000 rpm | 980 rpm | 980 rpm |
| Max. pressure | 12 bar/ 175 psi | 12 bar/ 175 psi | 12 bar/ 175 psi | 12 bar/ 175 psi |
| Body material | cast Iron | cast iron | cast iron | cast aluminium |
| Pulley diameter | 320 mm | 320 mm | 365 mm | 360 mm |
| Test life | 9,000 hours | 8,000 hours | 7,000 hours | 7,000 hours |
| N.W. | 25 kg | 32 kg | 41 kg | 32 kg |
