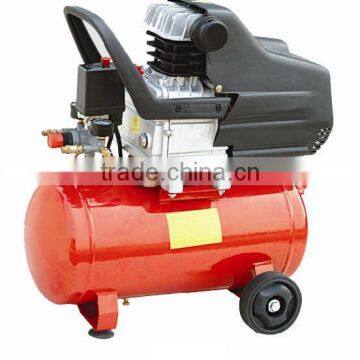

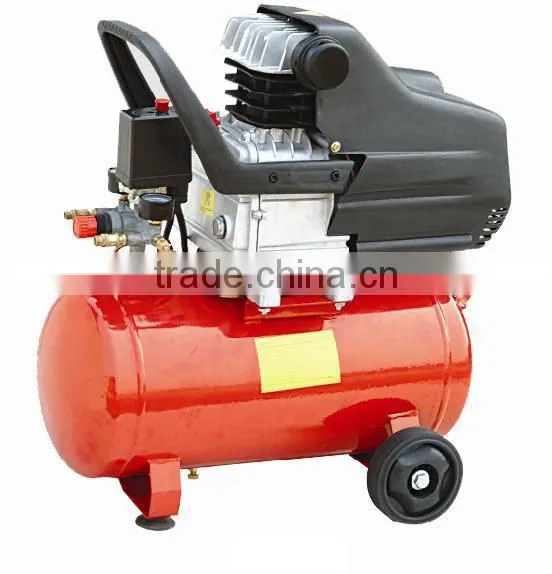

Home > Industrial Equipment & Components > Compressor > Compressor Unit > Portable Direct Driven Air Compressor BM2524A-2.0
Negotiable
MOQ: 300 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Piston
Configuration:
Stationary
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Compressor Parts - Air Filter Regulator Lubricator - Pneumatic Components CombinationNegotiableMOQ: 500 Pieces -
Air Filter Regulator - Air Source Treatment - Pneumatic ComponentNegotiableMOQ: 200 Pieces
-
High Pressure Diesel Belt Driven Air Compressor - BC50TCD100H160FNegotiableMOQ: 50 Units
-
Industrial Petro Belt Driven Air Compressor - BC50TCG130H160FNegotiableMOQ: 20 Units
-
Industrial Belt Driven Bare Compressor - BC150TE150NegotiableMOQ: 50 Units
Condition
New
Type
Piston
Configuration
Stationary
Power Source
AC Power
Lubrication Style
Lubricated
Mute
Other
Place of Origin
Jiangsu, China
Brand Name
willpro
Model Number
BM2524A-2.0
Voltage
110v
Weight
24.5kg
Warranty
1 Year
After-sales Service Provided
No overseas service provided

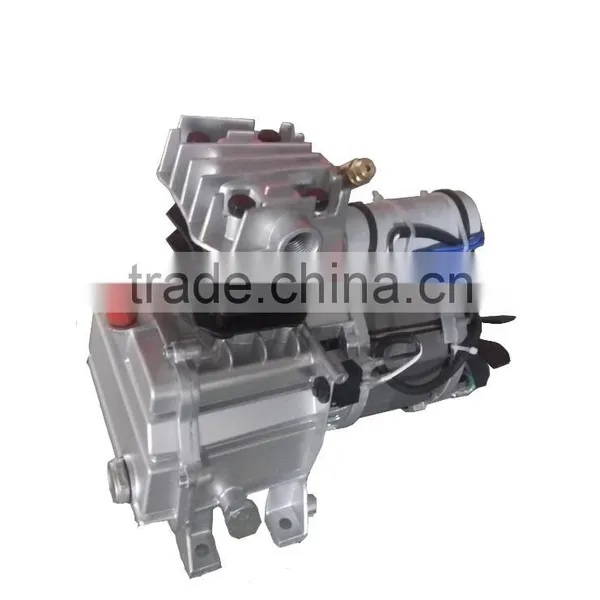

BM25 Oil Lubricated Pump+2Hp Motor+24L Tank+2x6" Solid Plastic Wheel
visit for more information
visit /barma-type-compressor.html for more information
contact sales(at) for more information
| Model | BM1516L-1.1 | BM1520-1.5 | BM2560EV/96EV-2.0 | BM2540V/60V-2.0 |
| 40psi Air delivery | 80 lit/min | 82 L/min | 110 lit/min | 202 lit/min |
| 90psi Air delivery | 70 lit/min | 69 L/min | 92 lit/min | 110 lit/min |
| Pump | BM15E oil lubricated | BM15 oil lubricated | BM25E oil lubricated | BM25 oil lubricated |
| Cylinder | Φ42x35mm x 1 | Φ42x35mm x 1 | Φ47x38mm x 1 | Φ48x40mm x 1 |
| Motor power | 1.1 hp 230v 50hz | 1.5 hp 230v 50hz | 2.0 hp 230v 50hz | 2.0 hp 230v 50hz |
| Motor speed | 2,850rpm | 2,850rpm | 2,800rpm | 2,800rpm |
| Max. pressure | 8bar/115psi | 8bar/115psi | 8bar/115psi | 8bar/115psi |
| Tank | 16 lit | 20 lit | 60/96 lit, vertical | 40/60 lit |
| Wheel | 2 with bracket | 4" solid plastic x 2 | 6" solid plastic x 2 | 6" solid plastic x 2 |
| N.W. | 18 kg | 19 kg | 36/49 kg | 35/44 kg |

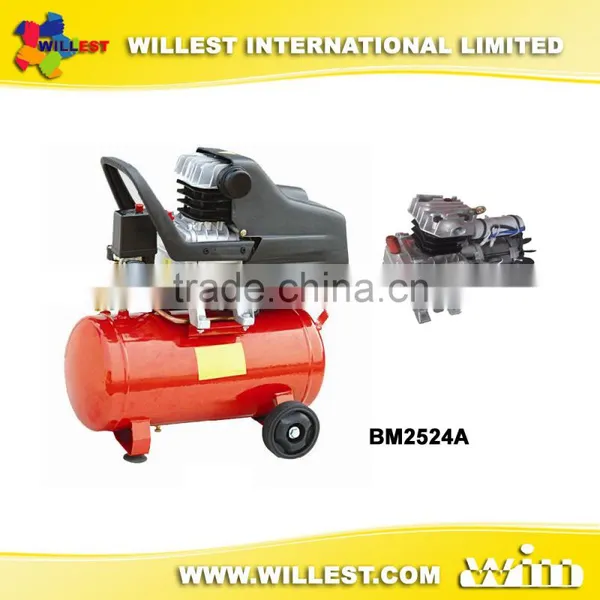

| Model | BM2524A-2.0 | BM2520WFA-2.0 | BM2024-2.0 | BM2550E-2.0 | BM2550-2.0 |
| 40psi Air delivery | 5 cfm (142 L/min) | 5 cfm (142 L/min) | 101 L/min | 110 lit/min | 202 lit/min |
| 90psi Air delivery | 4 cfm (114 L/min) | 4 cfm (114 L/min) | 84 L/min | 92 lit/min | 110 lit/min |
| Pump | BM25 oil lubricated | BM25 oil lubricated | BM20 oil lubricated | BM25E oil lubricated | BM25 oil lubricated |
| Cylinder | Φ48x40mm x 1 | Φ48x40mm x 1 | Φ47x35mm x 1 | Φ47x38mm x 1 | Φ48x40mm x 1 |
| Motor power | 2.0 hp 110v 60hz | 2.0 hp 110v 60hz | 2.0 hp 230v 50hz | 2.0 hp 230v 50hz | 2.0 hp 230v 50hz |
| Motor speed | 3,400rpm | 3,400rpm | 2,800 rpm | 2,800rpm | 2,800 rpm |
| Max. pressure | 8bar/115psi | 8bar/115psi | 8bar/115psi | 8bar/115psi | 8bar/115psi |
| Tank | 24 L | 10 L x 2 | 24 lit | 50 lit | 50 lit |
| Wheel | 6" solid plastic x 2 | nil | 4" solid plastic x 2 | 6" solid plastic x 2 | 6" solid plastic x 2 |
| N.W. | 24.5 kg | 37 kg | 23 kg | 28 kg | 37 kg |
| Model | BM2540A | BM2520WA | BM2524-2.5 | BM2550-2.5 |
| 40psi Air delivery | 5.2 cfm (147 L/min) | 5.2 cfm (147 L/min) | 230 lit/min | 230 lit/min |
| 90psi Air delivery | 4.1 cfm (116 L/min) | 4.1 cfm (116 L/min) | 120 lit/min | 120 lit/min |
| Pump | BM25 oil lubricated | BM25 oil lubricated | BM25 oil lubricated | BM25 oil lubricated |
| Cylinder | Φ48x40mm x 1 | Φ48x40mm x 1 | Φ47x47mm x 1 | Φ47x47mm x 1 |
| Motor power | 2.5 hp 110v 60hz | 2.5 hp 110v 60hz | 2.5 hp 230v 50hz | 2.5 hp 230v 50hz |
| Motor speed | 3,400rpm | 3,400rpm | 2,800rpm | 2,800rpm |
| Max. pressure | 8bar/115psi | 8bar/115psi | 8bar/115psi | 8bar/115psi |
| Tank | 40 L | 10 L x 2 | 24 lit | 50 lit |
| Wheel | 6" solid plastic x 2 | nil | 6" solid plastic x 2 | 6" solid plastic x 2 |
| N.W. | 35 kg | 30.5 kg | 27 kg | 39.5 kg |
