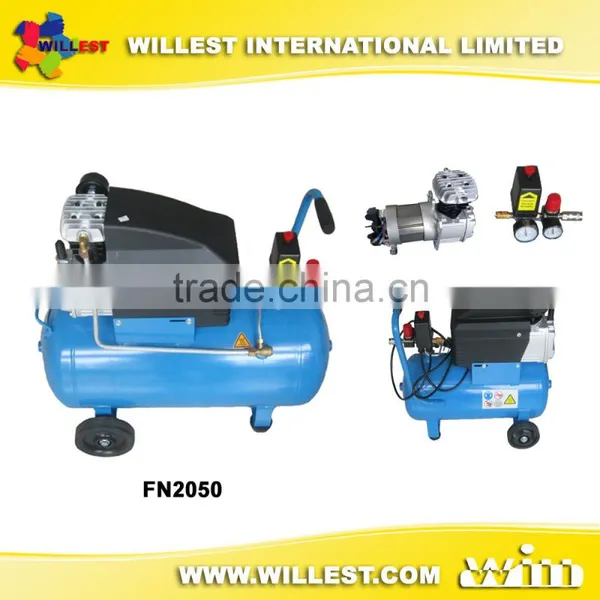

Small FL Type Air Compressor FN2050

Hutz Auto & Air Nanjing Ltd.
Small FL Type Air Compressor FN2050 thumbnail-1
Small FL Type Air Compressor FN2050 thumbnail-2
Small FL Type Air Compressor FN2050 thumbnail-3
Small FL Type Air Compressor FN2050 thumbnail-4
Small FL Type Air Compressor FN2050 photo-1
Small FL Type Air Compressor FN2050 photo-2
Small FL Type Air Compressor FN2050 photo-3
Small FL Type Air Compressor FN2050 photo-4
Negotiable MOQ: 200 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Piston
Configuration:
Portable
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Piston
Configuration Portable
Power Source AC Power
Lubrication Style Lubricated
Mute No
Place of Origin Jiangsu, China
Brand Name WILLPRO
Model Number FN2050
Voltage 230v
Weight 37 kg
Warranty 1 year
After-sales Service Provided No overseas service provided

visit for more information



visit /fini-type-compressor.html for more information



contact sales(at) for more information



ModelFN2024A-1.5FN2024E-1.5FN2024-1.5
40psi Air delivery3.9 cfm (111 L/min) 138 L/min 147 L/min
90psi Air delivery2.9 cfm (83 L/min)82 L/min88 L/min
PumpFN20 oil lubricatedFN20 oil lubricatedFN20 oil lubricated
CylinderΦ42x38mm x 1Φ42x35mm x 1Φ42x38mm x 1
Motor power1.5 hp 110v 60hz1.5 hp 230v 50hz1.5 hp 230v 50hz
Motor speed3,400rpm2,850rpm2,850rpm
Max. pressure8bar/115psi8bar/115psi8bar/115psi
Tank24 L24 L24 L
Wheel6" solid plastic x 25" solid plastic x 26" solid plastic x 2
N.W.25 kg22 kg23 kg



ModelFN2030-2.5
40psi Air delivery230 L/min
90psi Air delivery120 L/min
PumpFN20 oil lubricated
CylinderΦ47x47mm x 1
Motor power2.5 hp 230v 50hz
Motor speed2,850rpm
Max. pressure8bar/115psi
Tank30 L
Wheel6" solid plastic x 2
N.W.31 kg



ModelFN2024AFN2030AFN2050AFN2024FN2016WFN2050FN2012L
40psi Air delivery4.8 cfm (136 L/min) 4.8 cfm (136 L/min) 4.8 cfm (136 L/min) 195 L/min 195 L/min 195 L/min 195 L/min
90psi Air delivery3.7 cfm (105 L/min)3.7 cfm (105 L/min)3.7 cfm (105 L/min)103 L/min103 L/min103 L/min103 L/min
PumpFN20 oil lubricatedFN20 oil lubricatedFN20 oil lubricatedFN20 oil lubricatedFN20 oil lubricatedFN20 oil lubricatedFN20 oil lubricated
CylinderΦ47x40mm x 1Φ47x40mm x 1Φ47x40mm x 1Φ47x40mm x 1Φ47x40mm x 1Φ47x40mm x 1Φ47x40mm x 1
Motor power2.0 hp 110v 60hz2.0 hp 110v 60hz2.0 hp 110v 60hz2.0 hp 230v 50hz2.0 hp 230v 50hz2.0 hp 230v 50hz2.0 hp 230v 50hz
Motor speed3,400rpm3,400rpm3,400rpm2,850rpm2,850rpm2,850rpm2,800rpm
Max. pressure8bar/115psi8bar/115psi8bar/115psi8bar/115psi8bar/115psi8bar/115psi8bar/115psi
Tank24 L30 L50 L24 L8 L x 250 L

12 L

Wheel6" solid plastic x 26" solid plastic x 26" solid plastic x 26" solid plastic x 2nil6" solid plastic x 22 with bracket
N.W.25 kg31 kg39.5 kg25 kg24.5 kg37 kg17 kg
