Off Road Electric Winch 4WD Winch 10000lb 12000lb WIN12000F05

Name: Off Road Electric Winch 4WD Winch 10000lb 12000lb WIN12000F05
Brand: powerlife
SKU: 143838082
Availability: InStock

Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

powerlife

Model Number:

WIN12000F05

Hutz Auto & Air Nanjing Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name powerlife

Model Number WIN12000F05

Power Source Electric

Application Other, 4WD

Capacity 12000lbs

Electric Winch - 4WD Series

visit for more information;
visit /electric-winch-4wd-series-12000lb.html for more information;
contact sales(at) for more information;

Electric Winch - 4WD Speedy Series - 10000LB

Model	WIN10000F01SW	WIN10000F01SRW
Rated Line Pulling	10,000 lb/ 4,536 kg	10,000 lb/ 4,536 kg
Power input	5.5hp/4.0kw/12V DC; 6.44hp/4.8kw/24V DC	5.5hp/4.0kw/12V DC; 6.44hp/4.8kw/24V DC
Motor	series wound	series wound
Control	3.7m in-line plus wireless remote	3.7m in-line plus wireless remote
Gear train	3 stage plantary	3 stage plantary
Gear ratio	148.2 : 1	148.2 : 1
Clutch	sliding ring gear	sliding ring gear
Braking action	automatic in the drum	automatic in the drum
Drum dimension	Φ64 x 224 mm	Φ64 x 223.5 mm
Cable or Rope	Φ8.3mmx28m steel	Φ9.0mmx28m dyneema
Fairlead	4-way roller fairlead	2-way fairlead
Safety device	200A relay	500A relay
N.W	36 kg	26 kg

Electric Winch - 4WD Series - 12000LB

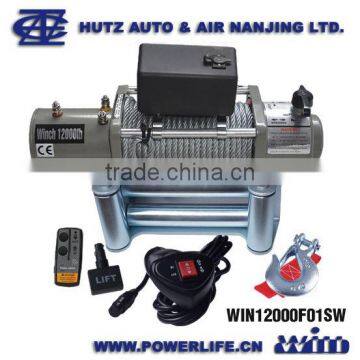

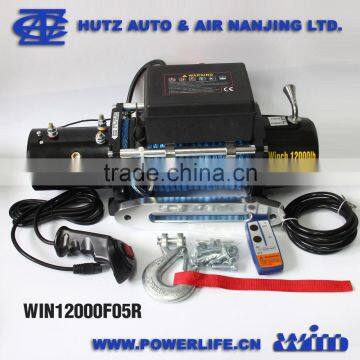

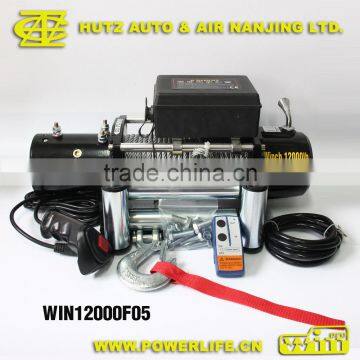

Model	WIN12000F05	WIN12000F05R	WIN12000F01SW
Rated Line Pulling	12,000 lb/ 5,442 kg	12,000 lb/ 5,442 kg	12,000 lb/ 5,442 kg
Power input	6.0hp/4.5kw/12V DC; 6.0hp/4.5kw/24V DC	6.0hp/4.5kw/12V DC; 6.0hp/4.5kw/24V DC	6.6hp/4.8kw/12V DC; 6.65hp/5.0kw/24V DC
Motor	series wound	series wound	series wound
Control	3.7m in-line plus wireless remote	3.7m in-line plus wireless remote	3.7m in-line plus wireless remote
Gear train	3 stage plantary	3 stage plantary	3 stage plantary
Gear ratio	265:1	265:1	187.2 : 1
Clutch	sliding ring gear	sliding ring gear	sliding ring gear
Braking action	automatic in the drum	automatic in the drum	automatic in the drum
Drum dimension	Φ64 x 224 mm	Φ64 x 224 mm	Φ64 x 224 mm
Cable or Rope	Φ9.3mmx24m steel	Φ9.5mmx24m dyneema	Φ9.1mmx27.5m steel
Fairlead	4-way roller fairlead	2-way fairlead	4-way roller fairlead
Safety device	standard	500A relay	450A relay
Overall dimension	516 x 160 x 200 mm	552 x 160 x 218 mm	537 x 160 x 218 mm
N.W	34 kg	27 kg	37kg
