12V 24V Electric Winch UTV Winch 4WD Winch with Synthetic Rope 8500lb 9000lb 9500lb WIN9500F05RA
Negotiable
/ Set
50 Sets(Min.Order)
- 100 Set / Sets per Month
- shanghai port
You May Like
- 4'' Double L Track Sliding Winch, WLL 5,500lbs
- High Quality Heavy Duty Winch Bar for Flatbed Trailer
- Introduction to Marine Electric Hoisting Winches
- Marine pneumatic winch(Good performance, high pulling force)
- Auto parts Nylon winch for Jeep wrangler JK 2007+ 12500lbs bumper winch for Jeep accessories
- Electric Lifting Winch Marine Hydraulic Winches on Dredging Machine Electric Winch for Sale
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | powerlife | Model Number: | WIN9500F05RA |
Power Source: | Electric | Application: | Other, 4x4 | Capacity: | 9500lbs |
Product Description
Electric Winch - 4WD Series
visit for more information;
visit /4wd-electric-winch.html for more information;
contact sales(at) for more information;
Electric Winch - 4WD Basic Series - 8000LB / 8500LB
Model | WIN8000F05 | WIN8500F01 |
Rated Line Pulling | 8,000 lb/ 3,629 kg | 8,500 lb/ 3,856 kg |
Power input | 4.0hp/2.8kw/12V DC | 5.5hp/4.0kw/12V DC |
Motor | series wound | series wound |
Control | 3.0m in-line | 3.7m in-line |
Gear train | 3 stage plantary | 3 stage plantary |
Gear ratio | 203:1 | 195.8 : 1 |
Clutch | sliding ring gear | sliding ring gear |
Braking action | automatic in the drum | automatic in the drum |
Drum dimension | Φ64 x 222.5 mm | Φ63.5 x 224 mm |
Cable or Rope | Φ8.3mmx26m steel | Φ8.1mmx28m steel |
Fairlead | 4-way roller fairlead | 4-way roller fairlead |
Safety device | standard | standard |
N.W | 36kg | 34kg |
Electric Winch - 4WD Basic Series - 9500LB

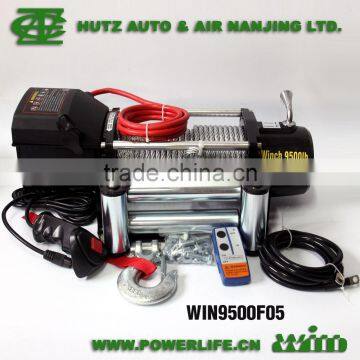

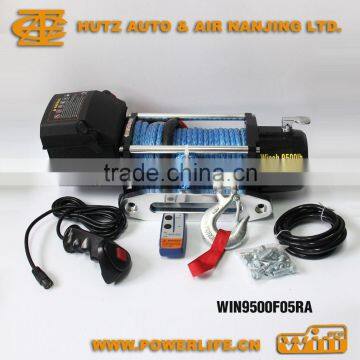

Model | WIN9500F05 | WIN9500F05RA | WIN9500F01SW | WIN9500F01SR |
Rated Line Pulling | 9,500 lb/ 4,300 kg | 9,500 lb/ 4,300 kg | 9,500 lb/ 4,300 kg | 9,500 lb/ 4,300 kg |
Power input | 5.0hp/3.5kw/12V DC | 5.0hp/3.5kw/12V DC | 5.5hp/4.0kw/12V DC | 5.5hp/4.0kw/12V DC |
5.0hp/3.5kw/24V DC | 5.0hp/3.5kw/24V DC | 6.44hp/4.8kw/24V DC | 6.44hp/4.8kw/24V DC | |
Motor | series wound | series wound | series wound | series wound |
Control | 3.7m in-line | 3.7m in-line | 3.7m in-line plus wireless remote | 3.7m in-line |
Gear train | 3 stage plantary | 3 stage plantary | 3 stage plantary | 3 stage plantary |
Gear ratio | 265:1 | 265:1 | 148.2 : 1 | 148.2 : 1 |

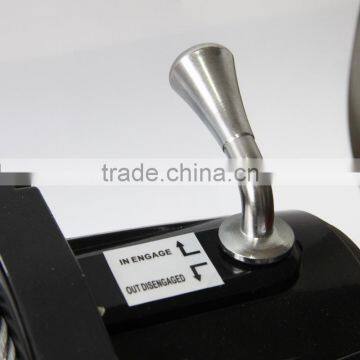

Clutch | sliding ring gear | sliding ring gear | keyway cam | keyway cam |
Braking action | automatic in the drum | automatic in the drum | automatic in the drum | automatic in the drum |
Drum dimension | Φ64 x 222.5 mm | Φ64 x 224 mm | Φ63.5 x 224 mm | Φ63.5 x 224 mm |

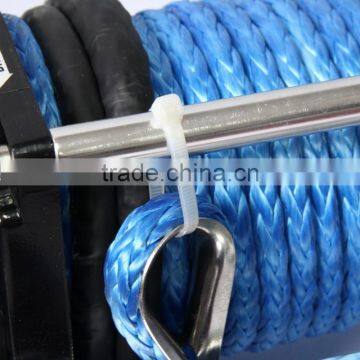

Cable or Rope | Φ8.3mmx26m steel | Φ8.5mmx24m dyneema | Φ8.3mmx28m steel | Φ9.0mmx28m dyneema |
Fairlead | 4-way roller fairlead | 2-way fairlead | 4-way roller fairlead | 2-way aluminium fairlead |
Safety device | standard | 500A relay | 500A relay | 500A relay |
N.W | 37 kg | 25 kg | 35 kg | 25.5 kg |
