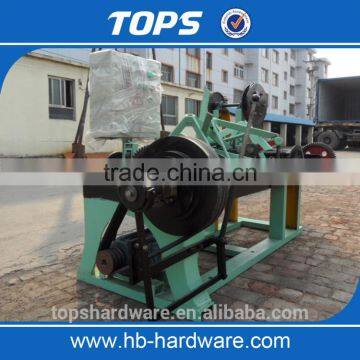

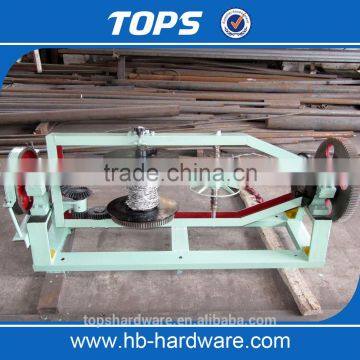

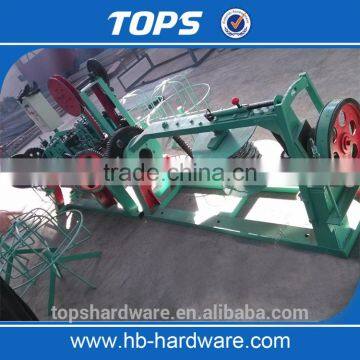

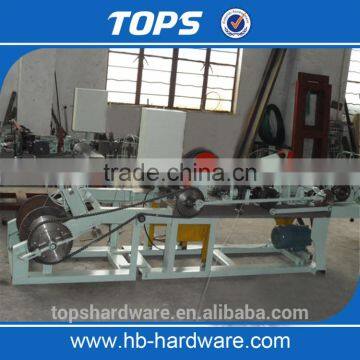

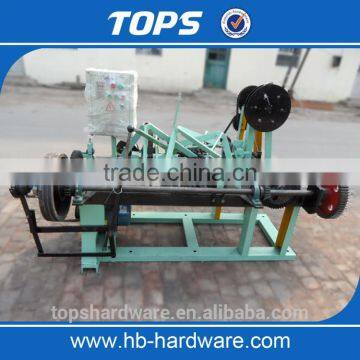

China barbed wire machine and raw material
There are three types of barbed wire machines for your choice:
CS-A Type:Single wire
The materials used are general hot dipped galvanized
,low carbon steel wire and plastic coated wire.
The products are widely used in national defense, railway, highway, agriculture, animal husbandry and other industries.
Main parameters:
No. | Item | Units | Parameters |
1 | Motor power | KW | 3 |
2 | Main drive shaft speed | r/min | 402 |
3 | Strand wire diameter | mm | 2.2-3.0 |
4 | Barbed wire diameter | mm | 1.8-2.2 |
5 | Barb distance | Mm | 76(3”) 102(4”) 127(5”) |
6 | Twist number | Pcs | 3.5 |
7 | Theoretical output | Kg/h | 70 |
8 | Total weight | Kg | 1200 |
9 | Dimension of main part | mm | 1950*950*1300 |
10 | Dimension of take-twisting part | mm | 1760*550*760 |
Note: Special specification models can be customized according to customer requirements.
CS-B Type :Double Wire
The materials used are general hot-dipped galvanized low carbon steel wire and low-strength steel wire. Main feature: saving materials.
Main parameters:
No. | Item | Units | Parameters |
1 | Motor power | KW | 2.2 |
2 | Main drive shaft speed | r/min | 355 |
3 | Strand wire diameter | mm | 2.2-3.0 |
4 | Barbed wire diameter | mm | 1.8-2.2 |
5 | Barb distance | Mm | 102(4”) 127(5”) |
6 | Theoretical output | Kg/h | 40 |
7 | Total weight | Kg | 1000 |
8 | Dimension | mm | 3100*1000*1150 |
Loading and packing:
Note: Special specification models can be customized according to customer requirements.
After-sales service:
Maintenance period:one year
If the buyers need, we can send our technical staff to the buyer's factory to install and
debug the machine, training is also available. But the buyer need to in charge of the fees
, such as the round air ticket, salary, meals and accommodation and so on.
