E6013 welding rods production line
Main Frame:
1. SDH-8 Butt-welding machine
This is used for resistance butt welding method for butt welding of Φ2-6.5mm low carbon steel
bar in order to continuous drawing and cutting.
2. Wire drawing machine
No. | Model | Technical data |
1 | Reel diameter | 550mm |
2 | Max. diameter of drawing | Φ6.5mm |
3 | Min diameter of drawing | Φ2.0mm |
4 | Reel installed away from the center | 1100mm |
5 | Motor power | 18.5kw |
6 | Overall size | 2205×1100×2168mm |
7 | Weight | 2T |
8 | Throughput | 4T/8H |
9 | Quantity | 8 draw ( 4draw + 4 draw) |

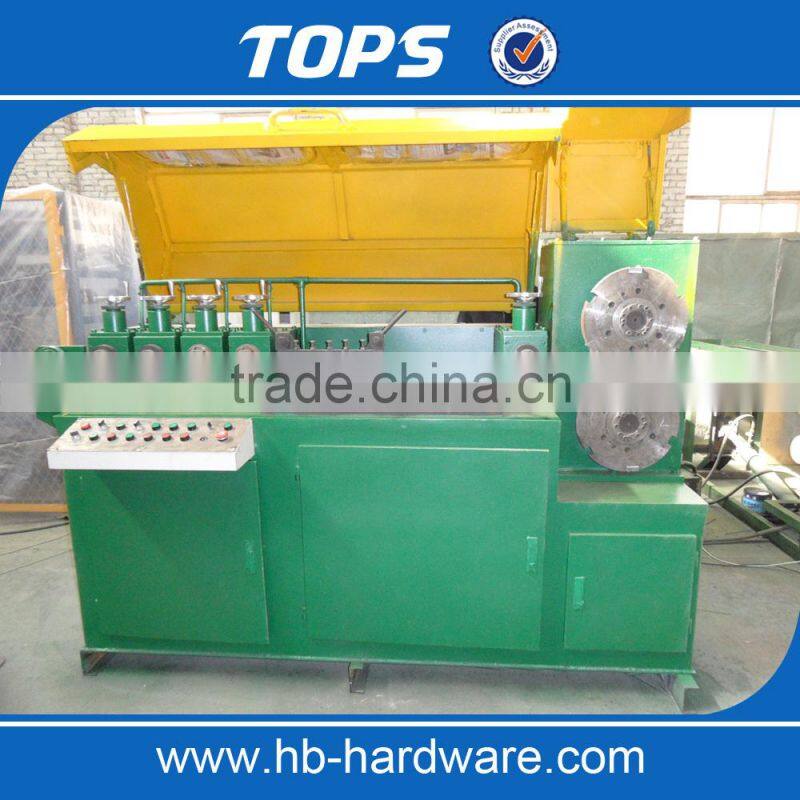

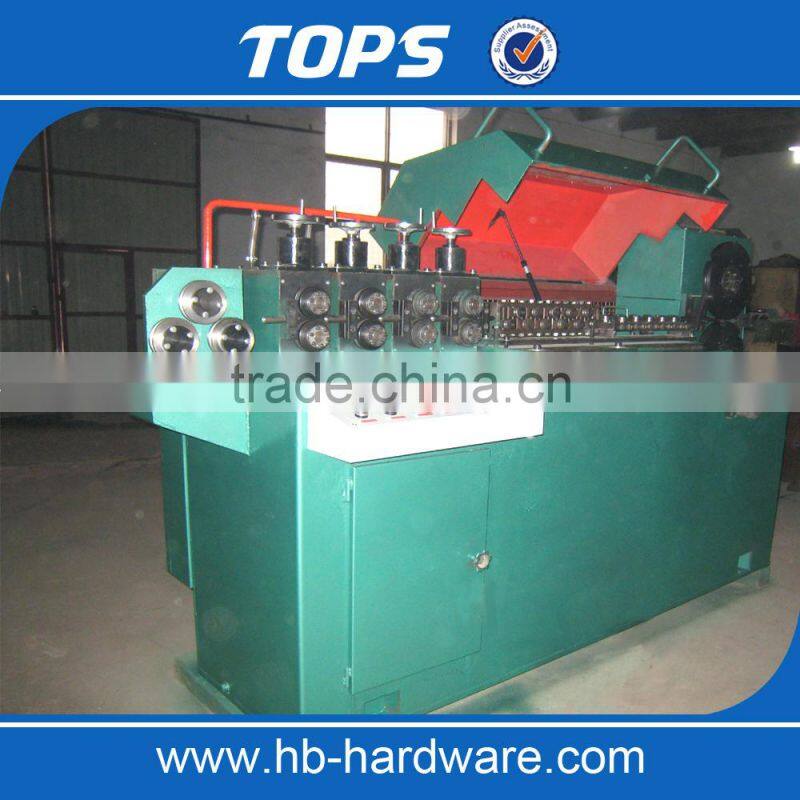

3. SHQ-500A Wire cutting machine
Wire cutting machine is the exclusive equipment for electrode production. It's used for straightening and cutting off the welding rod core.

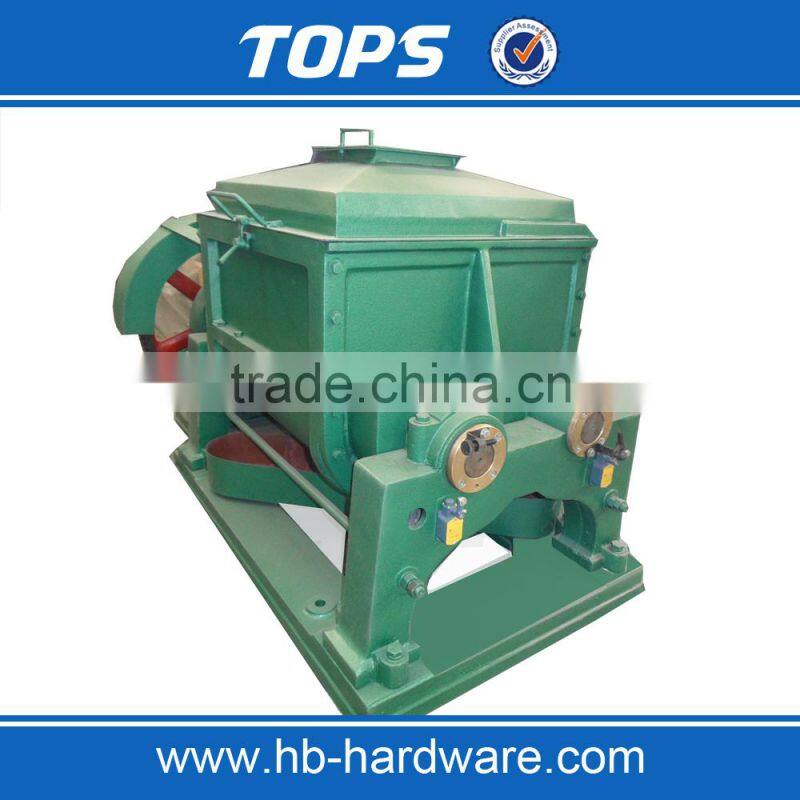

4.SHB-300A Powder mixer

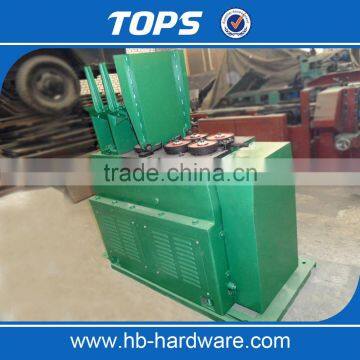

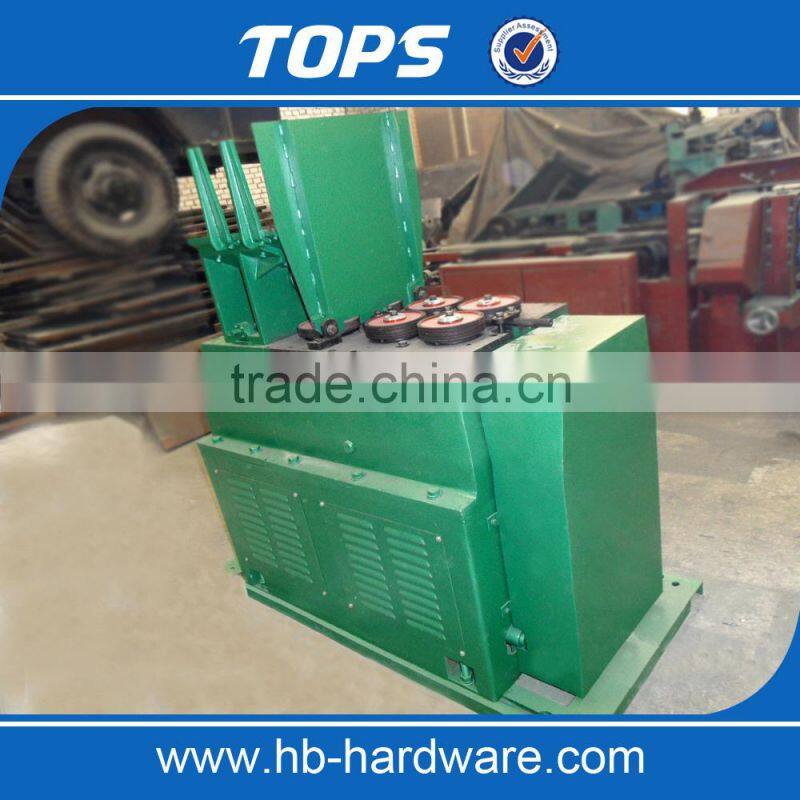

5. SHS-160A Wire -feeding machine
Wire drawing machine is the exclusive machine in welding electrode production line. It is used to feed the welding
core to coating dies at 45° angle automatically to satisfy the needs of coating procedure continuingly.
Frequency control system is optional.

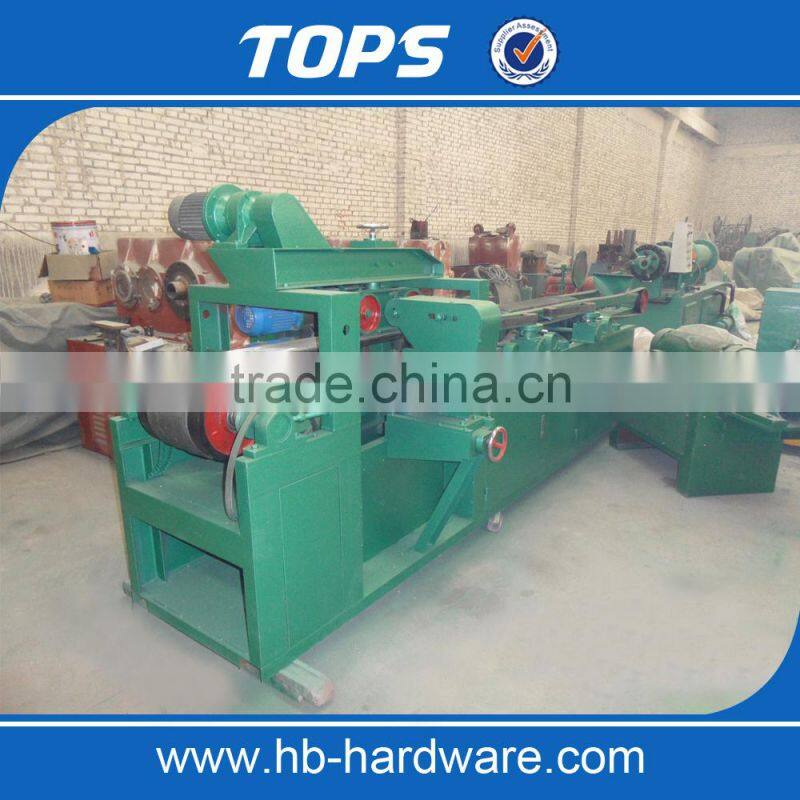

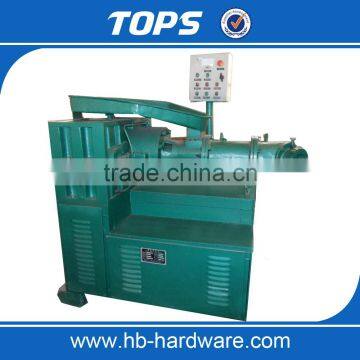

6. SLT-100A Helix powder coating machine
No. | Model | SLT-100A |
1 | Powder cylinder diameter | 100mm |
2 | Remer speed | 32-60r.p.m |
3 | Working height center | 990mm |
4 | Motor power | 22kw |
5 | Overall size | 1390×1080×1245mm |
6 | Weight | 2.2T |
7 | Throughput | 8T/8H |
8 | Quantity | 1 set |

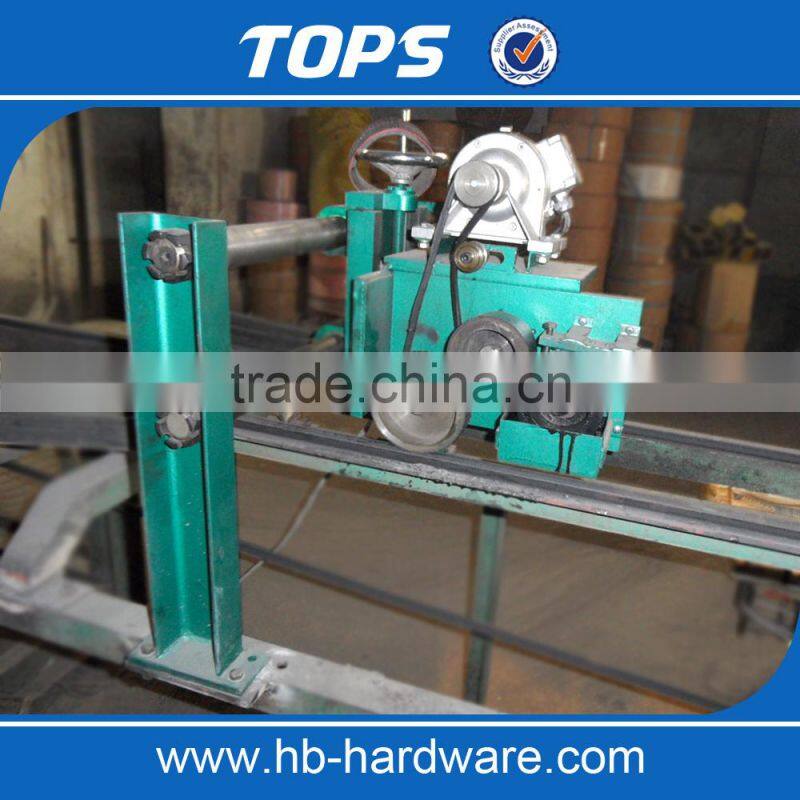

7. SHM-450 Head-tail grinder machine
Head-tail grinder machine is the special equipment for welding electrode production.
Grindering striking end and bare terminal of electrodes.
8. SHK Control panel
9. SHG-F Auxiliary line machine

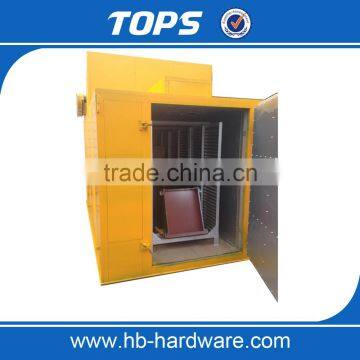

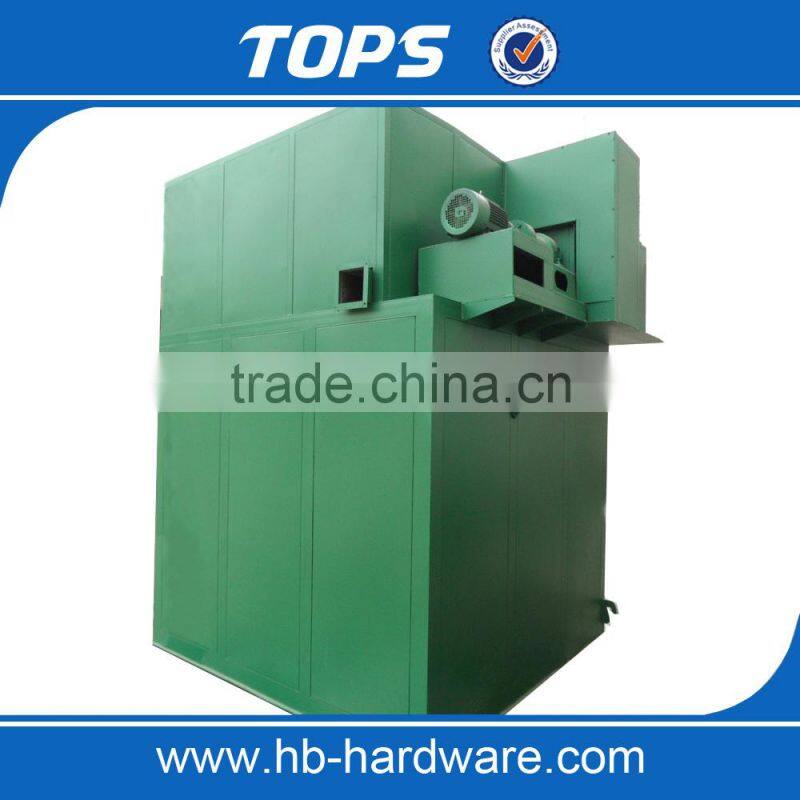

10. SHG Automatic chain type drying furnace
11. SYZ-80A Words printer
If you are interested,contact us for more specifications.
Any intersted,welcome to contact us anytime.
More details will be offered soon!
