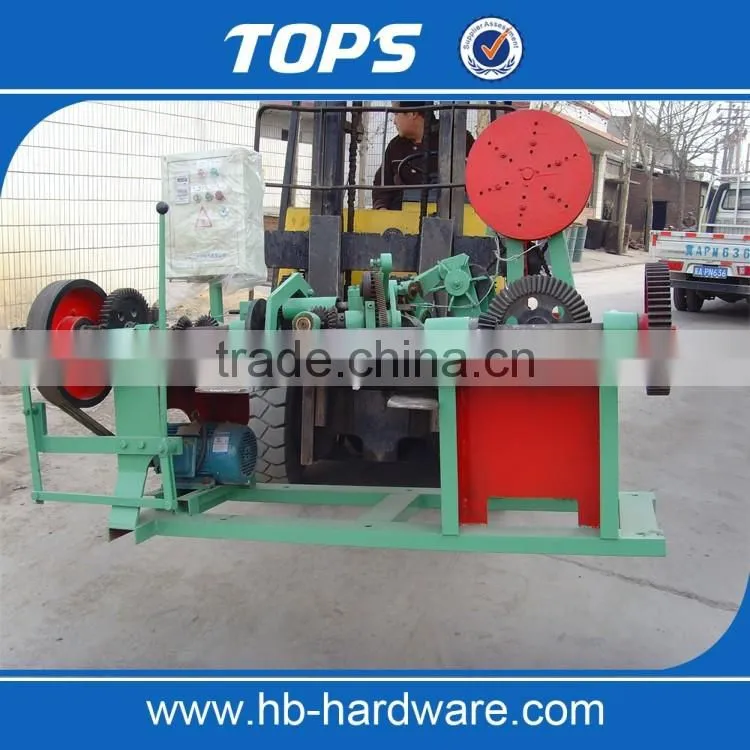

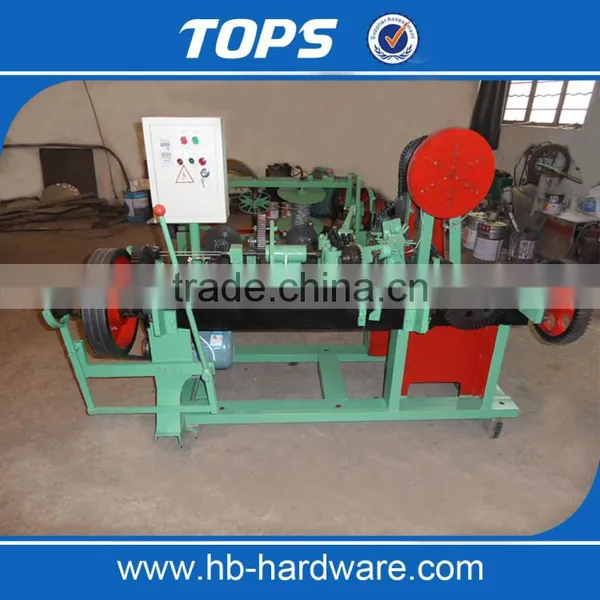

CS-B Barbed Wire Machine

FOB Price

USD $2,800 - $4,200 / Set

1 Set(Min.Order)

Product Details

Place of Origin:	Hebei, China	Brand Name:	TOPS	Model Number:	CS-B Barbed Wire Machine
After-sales Service Provided:	Engineers available to service machinery overseas

Most Popular model in the market.

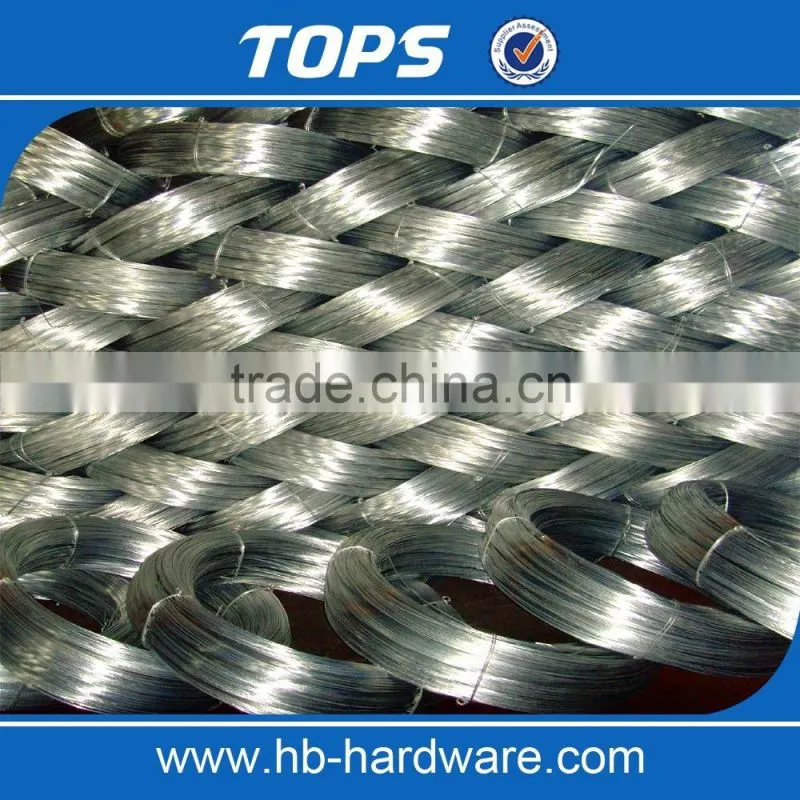

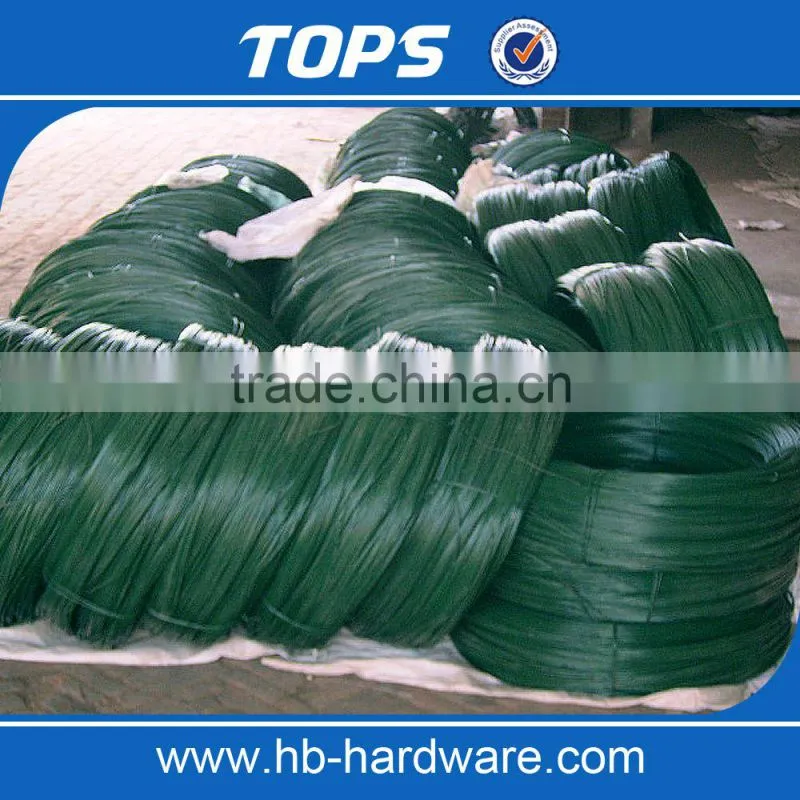

Raw materials : low carbon steel, stainless steel ,pvc coated wire

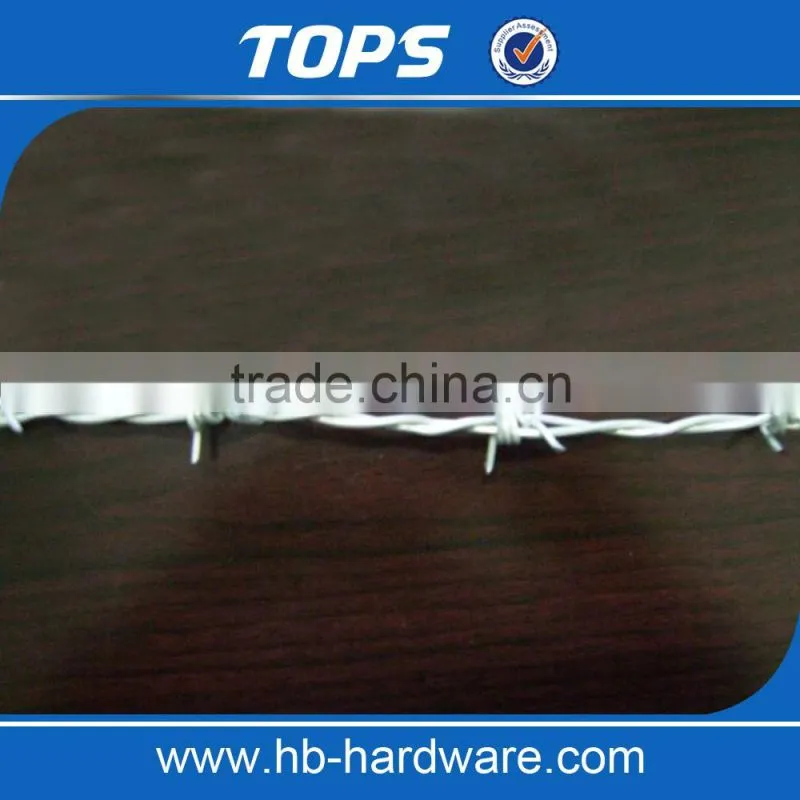

Production wire : Double wire Normal twisted barbed wire

The finished barbed wire are widely used in national defense, military, railway, agriculture, animal husbandary and other industries.

Details Specification and Technical Parameter of CS Type Barbed Wire Machine

Item	CS-B Barbed Wire Machine
Barb Space	3'' 4'' 5'' 6''
Single strand wire diameter	1.6mm - 3.0mm
Barb Wire diameter	1.6mm - 2.5mm
Electrical motor	3 KW
Rotate speed of Main transmission shaft	402 rpm
Rotate speed of Barb rolling shaft	470 rpm
Rotate speed of Wire	134 rpm
Rotate speed of Wire collecting wheel	30-255 rpm
Production capacity :	300-700kg/day , which depends on wire diameter and twist type .
Dimension of Main frame part	1900 X 1300 X 980 mm
Dimension of Wire collecting and twisting part	1300 X 500 X 500 mm

Detailed Images

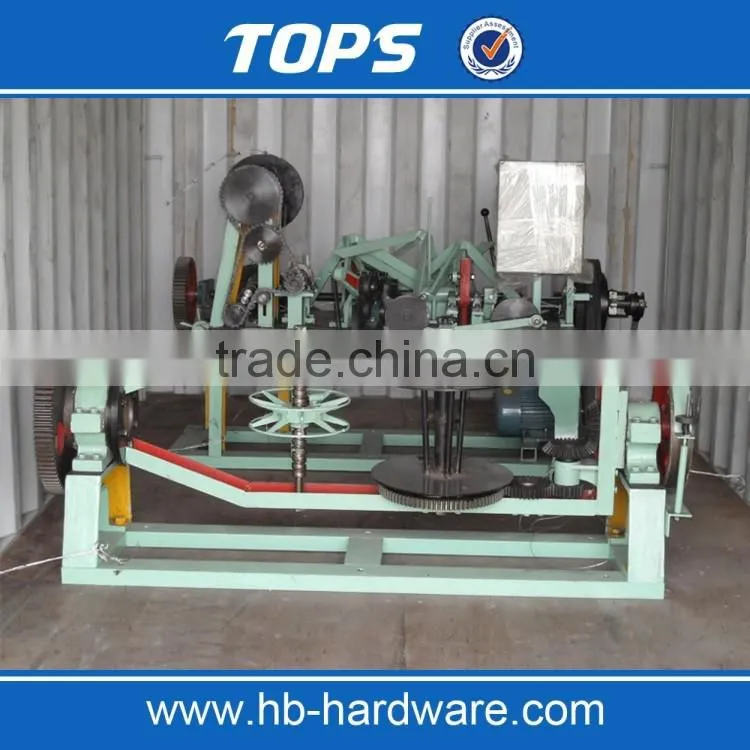

Packing & Delivery
