Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > Highway Guardrail Plate

Highway Guardrail Plate

US$ 700 - 1,000 MOQ: 5 Tons

Key Specifications

Get Latest Price

Standard:

Grade:

Thickness:

3, 4

Contact Supplier Request Quote Chat Now

Efya International Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN PORT

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Thickness 3, 4

Section Shape Other, waveform

Place of Origin Tianjin, China

Secondary Or Not Non-secondary

Application Other, Traffic highway equipment

Technique Hot Rolled

Certification Other, ISO9001:2008

Surface Treatment Galvanized

Special Pipe Thick Wall Pipe

Alloy Or Not Non-alloy

Specifications

highway guardrail plate
material: Q235 Q345 steel plate
Application:The traffic road block
Standard:JT/T281-2007

specifications

highway guardrail plate

highway guardrail plate
material: Q235 Q345 steel plate
Application:The traffic road block
Standard:JT/T281-2007

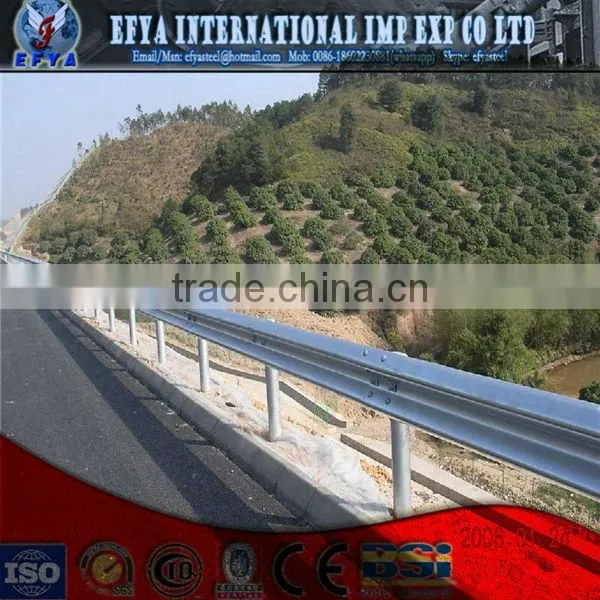

Product introduction: guardrail plate it using soil base, column, beam deformation to absorb impact energy, and force is out of control vehicle changing direction, return to normal driving direction, prevent the vehicle out, in order to protect the vehicle and the passenger, reduce the loss caused by accidents.

Color: galvanized silvery white, plastic spraying, green, white, blue, etc.
According to the waveform can be divided into double wave form guardrail and threewave form the barriers.
According to surface treatment can be divided into hot dipped galvanized waveform guardrail and galvanized coating.
According to the set location can be divided into roadside guardrail and median guardrail.
Highway waveform guardrail plate according to the grades of collision avoidance can be divided into class A and class S.Belongs to enhanced s-class guardrail, suitable for roadside particularly dangerous road use, grade A for special roads.Commonly used roadside wave beam guardrail according to the grades of collision avoidance can be divided into B, A, SB, SA, SS grade 5.

Collision avoidance level code
A	side outline A level
S	roadside s-class
Am	median grade A
Sm	median s-class

Structure form code
Gr	wave beam guardrail GRBS - prevention of wave beam guardrail
Grd	combination waveform guardrail
Gc	cable guardrail
Gw	concrete guardrail
Gwb	basic concrete guardrail
Gwm	modified concrete guardrail

Embedding condition code
E	buried in soil
Em	the central zone of concrete guardrail, interlock in grassroots E1, roadside concrete guardrail, embedded in the base
E2	roadside concrete guardrail, connected to the lower structure
B	embedded in the concrete foundation
R	concrete guardrail by force reinforced with the base connection
