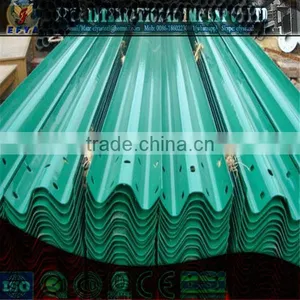

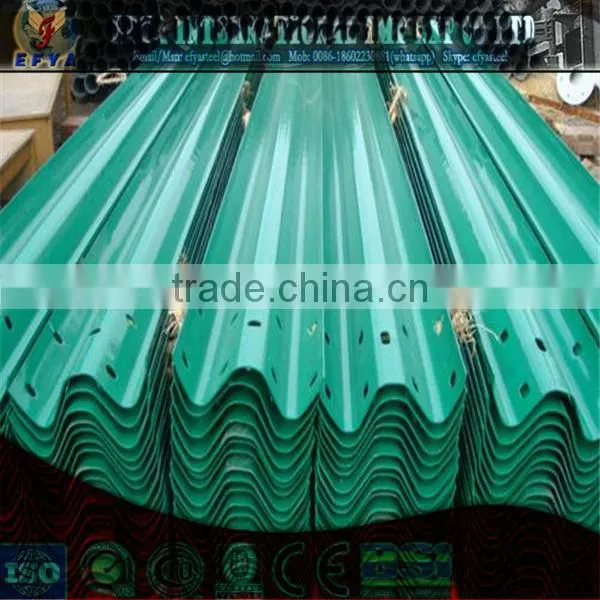

Three Difform Guardrail Plate ---plastic Spraying Guardrail Board

Three Difform Guardrail Plate ---plastic Spraying Guardrail Board photo-1
Three Difform Guardrail Plate ---plastic Spraying Guardrail Board photo-2
US$ 700 - 1,000 MOQ: 5 Tons
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
3, 4
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Thickness 3, 4
Section Shape Other, waveform
Place of Origin Tianjin, China
Secondary Or Not Non-secondary
Application Other, Traffic highway equipment
Technique Hot Rolled
Certification Other, ISO9001:2008
Surface Treatment Other, plastic spraying
Special Pipe Thick Wall Pipe
Alloy Or Not Non-alloy

Specifications

plastic spraying guardrail board
material: Q235 Q345 steel plate
Application:The traffic road block
Standard:JT/T281-200

specifications

plastic spraying guardrail board
material: Q235 Q345 steel plate
Application:The traffic road block
Standard:JT/T281-200

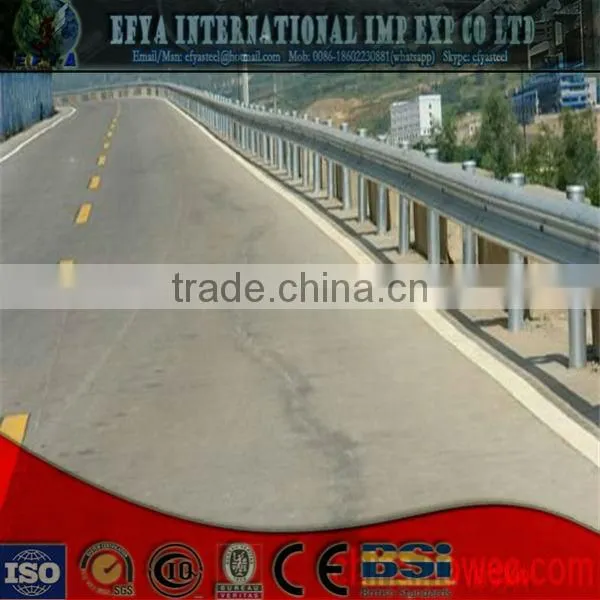

Product introduction: guardrail plate it using soil base, column, beam deformation to absorb impact energy, and force is out of control vehicle changing direction, return to normal driving direction, prevent the vehicle out, in order to protect the vehicle and the passenger, reduce the loss caused by accidents.



Color: galvanized silvery white, plastic spraying, green, white, blue, etc.
According to the waveform can be divided into double wave form guardrail and threewave form the barriers.
According to surface treatment can be divided into hot dipped galvanized waveform guardrail and galvanized coating.
According to the set location can be divided into roadside guardrail and median guardrail.
Highway waveform guardrail plate according to the grades of collision avoidance can be divided into class A and class S.Belongs to enhanced s-class guardrail, suitable for roadside particularly dangerous road use, grade A for special roads.Commonly used roadside wave beam guardrail according to the grades of collision avoidance can be divided into B, A, SB, SA, SS grade 5.

                             Structure form code

Gr

wave beam guardrail GRBS - prevention of wave beam guardrail

Grd

combination waveform guardrail

Gc

cable guardrail

Gw

concrete guardrail

Gwb

basic concrete guardrail

Gwm

modified concrete guardrail



           Collision avoidance level code

A

side outline A level

S

roadside s-class

Am

median grade A

Sm

median s-class





                 Embedding condition code

E

 buried in soil

Em

the central zone of concrete guardrail, interlock in grassroots E1, roadside concrete guardrail, embedded in the base

E2

 roadside concrete guardrail, connected to the lower structure

B

embedded in the concrete foundation

R

concrete guardrail by force reinforced with the base connection







three difform guardrail plate ---plastic spraying guardrail boardthree difform guardrail plate ---plastic spraying guardrail boardthree difform guardrail plate ---plastic spraying guardrail board
