Specifications
Linear Vibrating SieveStable, reliable , low consumption , low noise , long life, stable modes , screening efficiency, etc.

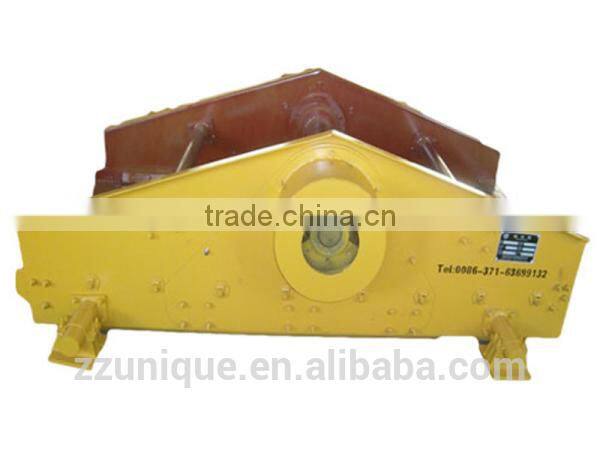

2014 New Mining Linear Vibrating Sieve Price
Introduction
Linear vibrating sieve introduction:
Linear vibrating sieve is high efficiency new type separating equipment, Widely used in mining , coal, metallurgy , building materials, refractories , light industry, chemical industry.
Linear vibrating sieve has stable, reliable , low consumption , low noise , long life, stable modes , screening efficiency, etc features.
Features
Working principle and features:

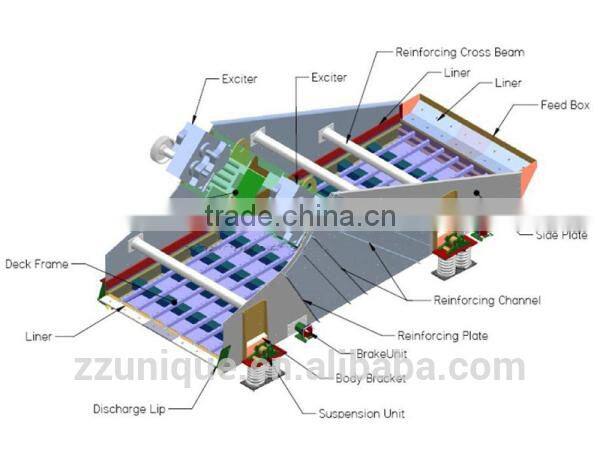

ZSG series vibrating screen work, two -motor synchronous reverse placed so that the exciter excitation force generated reverse , forcing driven mesh sieve to make vertical movement, so that the material on the shaker excitation force by periodically thrown forward a range, thus completing the material screening operations.
Linear vibrating sieve has the features of stable, reliable , low consumption , low noise , long life, stable modes , screening efficiency, etc.
Technical Data
Technical Parameter of Linear vibrating sieve
Model |
Screen size |
Screen layers |
Mesh hole |
Feeding size |
Capacity |
Motor power |
Weight |
Vibrating power |
Double amplitude |
Screen obliquity |
Dimensions(mm) |
(mm) |
(mm) |
(mm) |
(t/h) |
(kw) |
(kg) |
(Hz) |
(mm) |
(°C) |
|
||
ZSG1237 |
3700×1200 |
1 |
4-500 |
≤200 |
10-100 |
5.5×2 |
2250 |
16 |
6-8 |
15 |
3800×2050×1920 |
2ZSG1237 |
3700×1200 |
2 |
4-50 |
≤200 |
10-100 |
5.5×2 |
3345 |
16 |
6-8 |
15 |
3800×2050×2200 |
ZSG1443 |
4300×1400 |
1 |
4-50 |
≤200 |
10-150 |
5.5×2 |
4100 |
16 |
6-8 |
15 |
4500×3040×2500 |
2ZSG1443 |
4300×1400 |
2 |
4-50 |
≤200 |
10-150 |
5.5×2 |
4900 |
16 |
6-8 |
15 |
4500×3040×2700 |
3ZSG1443 |
4300×1400 |
3 |
4-50 |
≤200 |
10-150 |
5.5×2 |
5870 |
16 |
6-8 |
15 |
4500×3040×2820 |
2ZSG1548 |
4800×1500 |
2 |
5-50 |
≤200 |
15-200 |
7.5×2 |
5836 |
16 |
8-10 |
15 |
4800×3140×2814 |
3ZSG1548 |
4800×1500 |
3 |
5-50 |
≤200 |
15-200 |
7.5×2 |
6900 |
16 |
8-10 |
15 |
4799×3140×3014 |
2ZSG1848 |
4800×1800 |
2 |
5-50 |
≤300 |
50-500 |
7.5×2 |
6489 |
16 |
8-10 |
15 |
4799×3440×2814 |
3ZSG1848 |
4800×1800 |
3 |
5-50 |
≤300 |
50-500 |
7.5×2 |
7750 |
16 |
8-10 |
15 |
4799×3440×3014 |
4ZSG1848 |
4800×1800 |
4 |
5-50 |
≤200 |
50-500 |
11×2 |
8300 |
16 |
8-10 |
15 |
4799×3440×3503 |
Photo Discription
Package & Shipment
- Packaging: Standard Container, Nude Packs or in Bulk.
- Shipping: we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea
Our Service
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
Zhengzhou Unique Industrial Equipment Co., Ltd is a reliable supplier of linear vibrating sieve.
