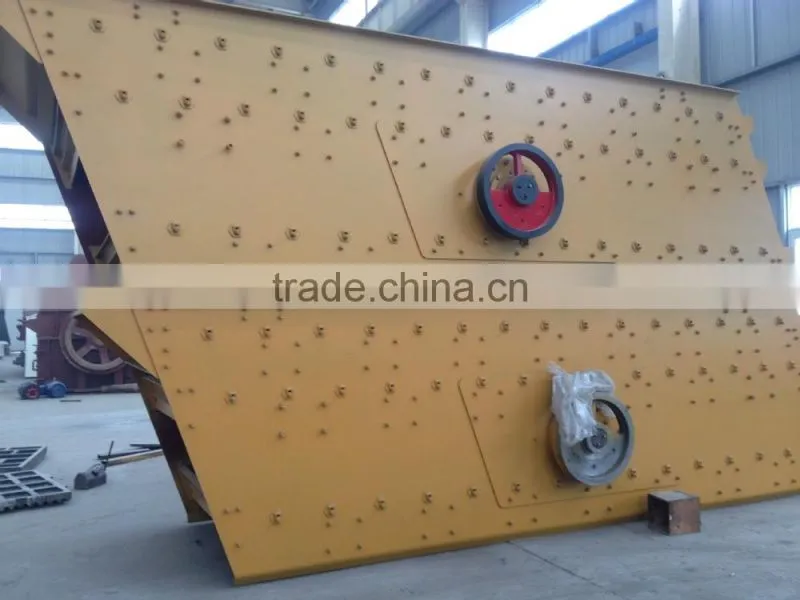

Quarry Stone Vibrating Screen 3YK1548/3YA1548
Negotiable
/ Set
1 Set(Min.Order)
- 68 Set / Sets per Month
- Qingdao Shanghai Tianjin etc.
- T/T Credit Card
You May Like
Product Details
| Condition: | New | Type: | Circular | Application: | Ore |
| Place of Origin: | Henan, China | Brand Name: | UNIQUE | Model Number: | 3YK1545/1548 |
| Voltage: | 380V-440V | Power(W): | 15 | Weight: | 6.6 |
| Certification: | ISO | Warranty: | 15 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Introduction of Vibrating Sifter/Screen (stone separator)
This machine moves on a circular motion. It is a multi-layer and high efficiency vibrating screen.
Cirular vibrating screen, vibration sieve, has the advantages of stable structure, strong exciting force,
high efficiency, little noise pollution, handy maintenance and safety;
Circular vibrating screen, vibration sieve, has been widely used in mine,
construction, transportation,
energy and chemical industries.
Specification of Vibrating Sifter
| Model | Sieve Layer | Mesh Size(mm) | Max. Feeding Size(mm) | Capacity (m³/h) | Motor Power (kw) | Weight (kg) |
| 2YK1225 | 2 | 4-50 | 400 | 8-60 | 5.5 | 2500 |
| 3YK1225 | 3 | 4-50 | 400 | 10-70 | 5.5 | 2850 |
| 2YK1230 | 2 | 4-50 | 400 | 12-78 | 7.5 | 3000 |
| 3YK1230 | 3 | 4-50 | 400 | 13-80 | 7.5 | 3600 |
| 2YK1237 | 2 | 4-50 | 400 | 15-86 | 7.5 | 3600 |
| 3YK1237 | 3 | 4-50 | 400 | 16-90 | 7.5 | 4200 |
| 2YK1535 | 2 | 5-50 | 400 | 20-125 | 11 | 4890 |
| 3YK1535 | 3 | 5-50 | 400 | 21-125 | 11 | 5700 |
| 2YK1545 | 2 | 5-50 | 400 | 22-150 | 15 | 5330 |
| 3YK1545 | 3 | 5-50 | 400 | 22-150 | 15 | 5800 |
| 2YK1548 | 2 | 5-50 | 400 | 22.5-162 | 15 | 5980 |
| 3YK1548 | 3 | 5-50 | 400 | 22.5-162 | 15 | 6600 |
| 2YK1848 | 2 | 5-80 | 400 | 25-206 | 15 | 7080 |
| 3YK1848 | 3 | 5-80 | 400 | 32-276 | 18.5 | 7600 |
| 2YK1854 | 2 | 5-80 | 400 | 32-312 | 18.5 | 8150 |
| 3YK1854 | 3 | 5-80 | 400 | 32-312 | 22 | 8840 |
| 2YK2160 | 2 | 5-100 | 400 | 50-475 | 30 | 9780 |
| 3YK2160 | 3 | 5-100 | 400 | 50-475 | 30 | 10800 |
| 2YK2460 | 2 | 5-100 | 400 | 65-550 | 37 | 13600 |
| 3YK2460 | 3 | 5-100 | 400 | 70-620 | 37 | 15600 |
| 2YK3060 | 2 | 5-100 | 500 | 200-900 | 45 |
|
| 3YK3060 | 3 | 5-100 | 500 | 200-900 | 45 | |
| 4YK3060 | 4 | 5-100 | 500 | 200-900 | 45 |
