Home > Products > Vibrating Feeder & Screen > UNIQUE Industrial Rotary Vibrating Screen
UNIQUE Industrial Rotary Vibrating Screen
- 50 Set / Sets per Month
- Qingdao Shanghai etc.
- T/T
Product Details
Condition: | New | Type: | Circular | Application: | Other, Ore, Granite, Basalt, Quartz, Fldspar etc. |
Place of Origin: | Henan, China | Brand Name: | UNIQUE | Model Number: | 3YK1230 |
Voltage: | 220v,380v,440v | Power(W): | 7.5kw | Weight: | 3600kg |
Certification: | CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Rotary Vibrating Screen1.With ISO9001:2000, CE certified
2.Energy saving
3 Easy operation
4.Considerate after-sale

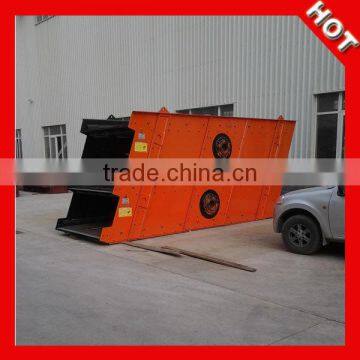

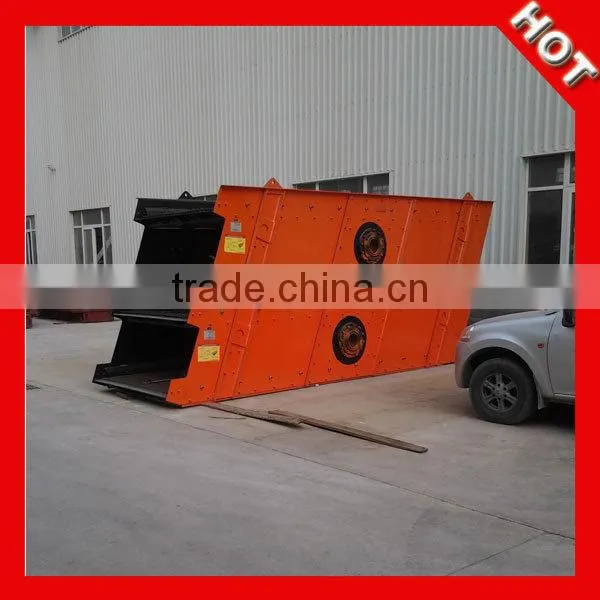

UNIQUE Industrial Rotary Vibrating Screen
Introduction of Rotary Vibrating Screen
The Rotary Vibrating Screen, also called circular vibrating screen moves on a circular motion. It is a multi-layer and high efficiency vibrating screen. Advantages are: stable structure, strong exciting force, high efficiency, little noise pollution, handy maintenance and safety; circular vibrating screen has been widely used in mine, construction, transportation, energy and chemical industries.
Features of Rotary Vibrating Screen
1. Stable performance under violent vibrating, for the fixing bolts are widely applied to connecting the main frame and the screen tightly.
2. Large handling capacity, which can reach 810 ton per hour.
3. Long flow line and various screening specifications.
4. Small amplitude, high frequency, large-inclination structure, high efficiency, large capacity, long service life, low power consumption and noise.
Working Principle of Rotary Vibrating Screen
The vibrating sifter for sand is to drive vibrator through V-belt under the power of ordinary motor, so that the screen body along the vibrating power direction to make a cyclical reciprocating, the material in the screen surface to make round movement, so as to make the materials sieved.
Main Specification of Rotary Vibrating Screen
Model | Sieve Layer | Max. Feeding Size(mm) | Capacity (m³/h) | Motor Power (kw) | Weight (kg) |
2YK1225 | 2 | 400 | 8-60 | 5.5 | 2500 |
3YK1225 | 3 | 400 | 10-70 | 5.5 | 2850 |
2YK1230 | 2 | 400 | 12-78 | 7.5 | 3000 |
3YK1230 | 3 | 400 | 13-80 | 7.5 | 3600 |
2YK1237 | 2 | 400 | 15-86 | 7.5 | 3600 |
3YK1237 | 3 | 400 | 16-90 | 7.5 | 4200 |
2YK1535 | 2 | 400 | 20-125 | 11 | 4890 |
3YK1535 | 3 | 400 | 21-125 | 11 | 5700 |
2YK1545 | 2 | 400 | 22-150 | 15 | 5330 |
3YK1545 | 3 | 400 | 22-150 | 15 | 5800 |
2YK1548 | 2 | 400 | 22.5-162 | 15 | 5980 |
3YK1548 | 3 | 400 | 22.5-162 | 15 | 6600 |
2YK1848 | 2 | 400 | 25-206 | 15 | 7080 |
3YK1848 | 3 | 400 | 32-276 | 18.5 | 7600 |
2YK1854 | 2 | 400 | 32-312 | 18.5 | 8150 |
3YK1854 | 3 | 400 | 32-312 | 22 | 8840 |
2YK2160 | 2 | 400 | 50-475 | 30 | 9780 |
3YK2160 | 3 | 400 | 50-475 | 30 | 10800 |
2YK2460 | 2 | 400 | 65-550 | 37 | 13600 |
3YK2460 | 3 | 400 | 70-620 | 37 | 15600 |
Zhengzhou Unique Industrial Equipment Co., Ltd, a reliable and professional supplier of Rotary Vibrating Screen.
