Long Service Life ISO Certified Gravel Vibrating Feeder for Quarry
US$ 9,999 - 10,000
/ Set
1 Set(Min. Order)
- Qingdao
- Credit Card
You May Like
Product Details
| Application | quarry, mining, construction | Power Type | Electric | |
| Capacity(t/h) | 90-160 t/h | Place of Origin | Henan, China | |
| Brand Name | UNIQUE | Model Number | ZSW-380x95 | |
| Power(W) | 11kw | Dimension(L*W*H) | 3882x2177x2066mm | |
| Weight | 4.1t | Certification | ISO | |
| Warranty | 15 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
material trough size: 3800LxW950mmsmoothly feed material to crusher
can screen soil out
can customize
special bar design

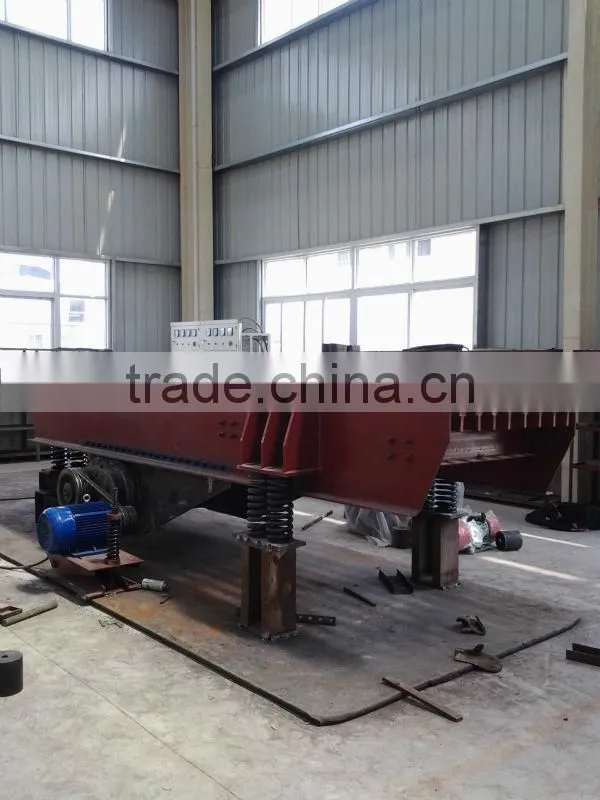

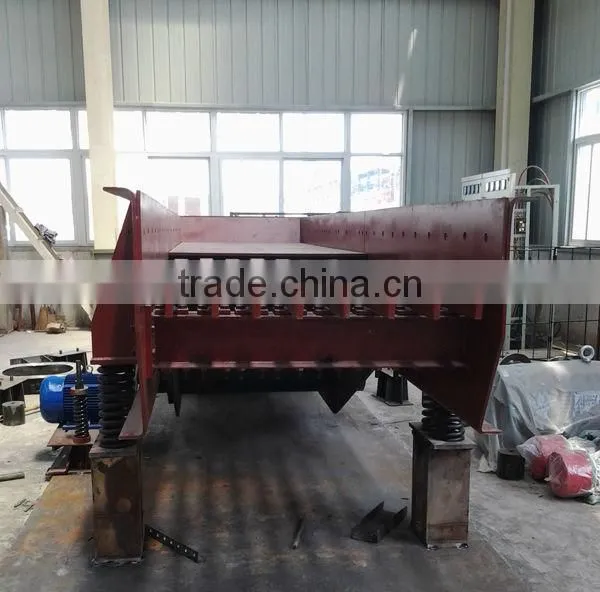

gravel vibrating feeder is being tested in workshop!
ZSW Series Vibrating Feeder is mainly used for coarse crushing, continuously and evenly feeding before the crusher, while screening fines, to increase crushing capacity. Especially in the feeding of heavy crushing construction equipment, it has been used greatly! Features and Advantages: linear trajectory, stable vibration, special rack design, adjustable to prevent trash material clogging rack space.
Feature
1. Flexible design.
2. Extra heavy-duty construction.
3. Exclusive vibrator technology.
4. Good performance-conditioning, no flushing phenomenon of materials.
5. Easy maintenance and low operating cost .
6. Easy to change and control currency through adjusting excitation force.
7. Sealing structure body is employed, no pollution.
2. Extra heavy-duty construction.
3. Exclusive vibrator technology.
4. Good performance-conditioning, no flushing phenomenon of materials.
5. Easy maintenance and low operating cost .
6. Easy to change and control currency through adjusting excitation force.
7. Sealing structure body is employed, no pollution.
Technology parameter
| Models | Max. feed size(mm) | Capacity(t/h) | Motor(kw) | Slot size(mm) |
| ZSW-380×95 | 500 | 96-160 | 11 | 3800×950 |
| ZSW-490×110 | 580 | 120-280 | 15 | 4900×1100 |
| ZSW-590×110 | 600 | 200-350 | 22 | 5900×1100 |
| ZSW-600×130 | 750 | 400-560 | 22 | 6000×1300 |
