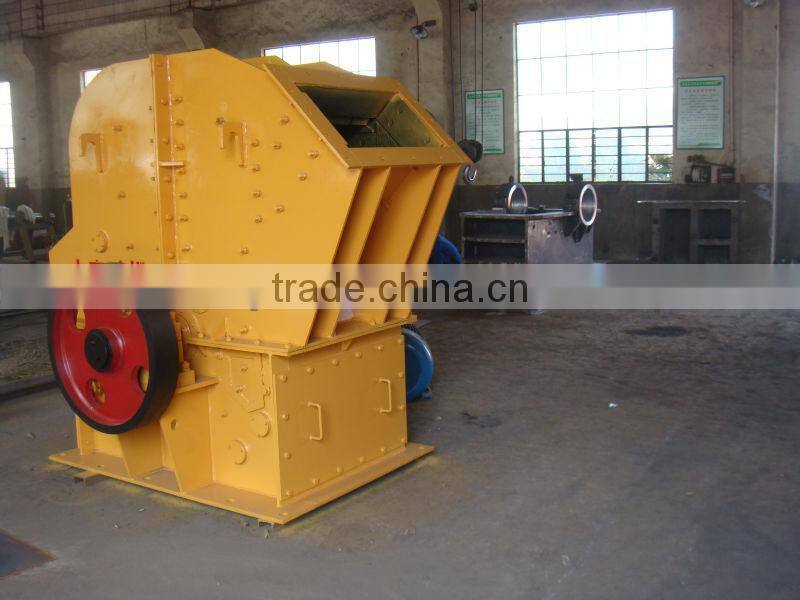

PFC Series Energy-saving Composite Crusher-PFC50

Specifications

Simple structure, less wearing parts
Small power consumption, large capacity
stone on stone crushing
horizontal design

PFC Series Energy-saving Composite Crusher-PFC50



PFC series energy-saving composite crushing machine has a large curved crushing chamber, using "stone on stone" breaking principle. In the crusher chamber, there are densely suspended materials with high-speed movement, the follow-up materials are always in mutual collision and friction, so that about 80% of the materials will be broken along with its own micro-cracks cleavage, violent rubbing & grinding happen between the crushed materials, most of them are changed into powder, crushing effect is very effective.



Advantages of PFC series energy-saving composite crusher:



The PFC energy-saving composite crusher combines the advantages of hammer crusher, Impact Crusher and VSI crusher and the uses special crushing cavity design. This type machines has features below while applying in the artificial sand, potash feldspar crushing, crushing before grinding, coal processing and other fields,



1 Simple structure, less wearing parts, horizontal design

2 Small power consumption, large output

3 “Stone on Stone” crushing, increases the life of wearing parts.

4 Composite hammer head, just needs to replace the impact hammer every time



Specifications



Models	Favorable feeding size(mm)	Capacity(t/h)	Discharge size80%(mm)	Motor(kw)	Dimension(L*W*H)m
PFC30	50	20-40	≤ 5	30-37	1.6×1.7×1.4
PFC50	80	40-60	≤5	45-55	2.3×2.1×2.3
PFC80	80	60-90	≤5	75-90	2.3×2.6×2.3
PFC100	100	90-120	≤6	90-110	2.3×2.9×2.8
PFC150	100	110-150	≤6	110-132	2.3×3.2×2.8
PFC200	150	130-200	≤7	132-220	3.3×2.8×3.1
PFC300	180	160-260	≤8	160-300	3.9×3.5×3.5
