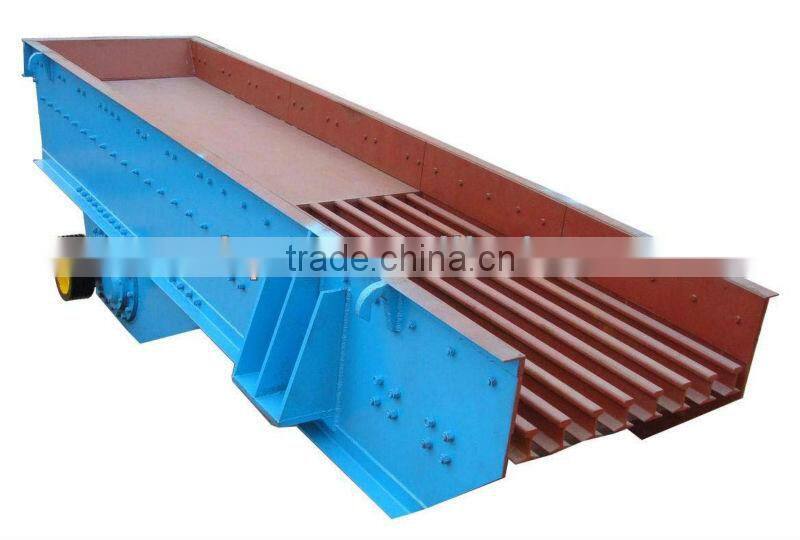

Excellent Vibrating Feeder for Stone Crushing Line
- 68 Set / Sets per Month
- Qingdao or China main port
- T/T
- ZSW850 Electromagnetic Mining Vibrating Grizzly Screen Feeder Price
- Hanging Vibrating Feeder Screw ZSW Series Vibration Feeder For Quarry Stone
- Coal Mining Industry Vibratory Feeder Industrial And Vibrating Feeder Capacity Calculation
- Vibratory Feeder Industrial And Vibratory Feeder Controller Price
- Vibratory Feeder Industrial And Vibrating Feeder Capacity Calculation
- Mining Selecting Vibratory Feeder Industrial For Sale
Product Details
Condition: | New | Application: | Metallurgy, coal mine, ore processing, building materials, chemical | Power Type: | Electric |
Capacity(t/h): | 120-280 t/h | Place of Origin: | Henan, China | Brand Name: | UNIQUE |
Model Number: | ZSW490x110 | Power(W): | 15kw | Dimension(L*W*H): | 4980x1830x1320mm |
Weight: | 5.3t | Certification: | ISO | Warranty: | 15 months |
Product Description
Specifications
Straight-line motion, steady vibration; Specially designed bars can prevent material jamming; gap between bars is adjustableZSW Series Vibrating Feeder is mainly used for coarse crushing, continuously and evenly feeding before the crusher, while screening fines, to increase crushing capacity. Especially in the feeding of heavy crushing construction equipment, it has been used greatly! Features and Advantages: linear trajectory, stable vibration, special rack design, adjustable to prevent trash material clogging rack space.
During processing, ZSW vibrating feeder can send various materials into the crushers continuously and evenly, at the same time, it can screen fine material to increase the crusher ability. The machine adopts double eccentric shaft vibration exciter, and the vibrating feeder can support impact force. It is widely used in metallurgy, coal ore, building material, chemical industry, etc.
Features
2. Extra heavy-duty construction.
3. Exclusive vibrator technology.
4. Good performance-conditioning, no flushing phenomenon of materials.
5. Easy maintenance and low operating cost .
6. Easy to change and control currency through adjusting excitation force
Technology parameter
Models | Max. feed size(mm) | Capacity(t/h) | Motor power(kw) | Trought size(mm) |
ZSW-380×95 | 500 | 96-160 | 11 | 3800×950 |
ZSW-490×110 | 580 | 120-280 | 15 | 4900×1100 |
ZSW-590×110 | 600 | 200-350 | 22 | 5900×1100 |
ZSW-600×130 | 750 | 400-560 | 22 | 6000×1300 |
